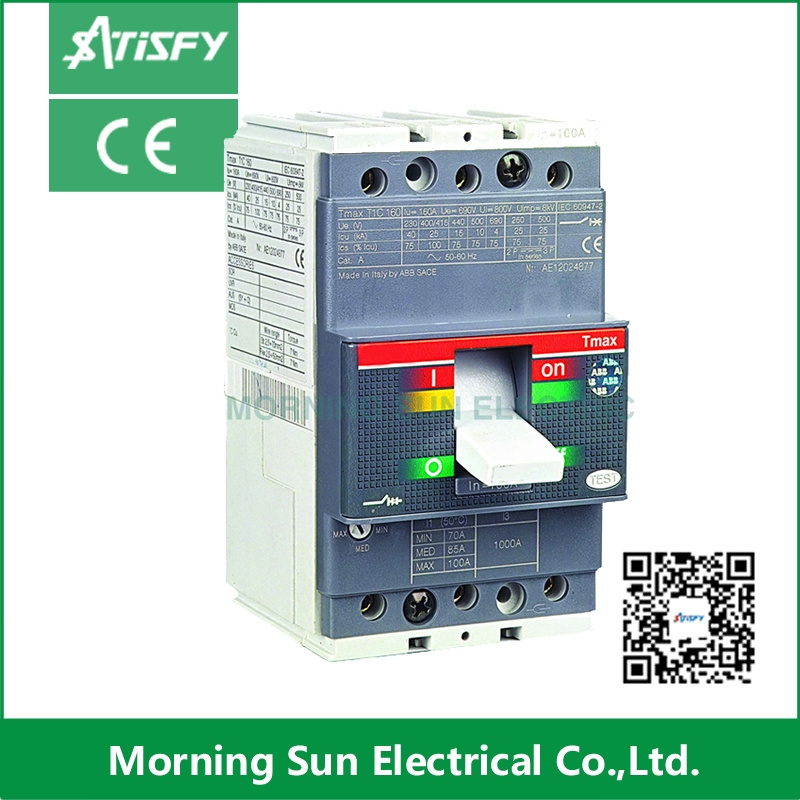

Best Quality Tmax MCCB

Name: Best Quality Tmax MCCB
Brand: all-electronics-online.com
SKU: 662109695
Availability: InStock
Rating: 4.8 (130 reviews)

Price:	US $ 10.00/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	50/Piece
Pay Type:	T/T,D/P,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	Tmax MCCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Poles Number:	3
Certification:	CCC
Structure:	Moulded Case Circuit Breaker

Product Description

S Moulded case circuit breaker,AC690V,50/60HZ
Rated current from 12.5A to 1000A
CE Certificate approved
2P,3P,4P all ok

S Series Moulded case circuit breaker is mainly suitable for using in the electric Power system AC 50Hz, rated insulated voltage 690V (insulated voltage 400V in the Controlled circuit) and rated operating voltage up to 690V, used for distribution And overload, short circuit and underload protection of circuit and equipment, And also for the infrequent making and breaking circuit under normal conditions.

Type	Rated current (A)	Rated insulating voltage	Pole number	Rated operating voltage	Ultimate short circuit breaking capacity lcu KA			Service short circuit breaking capacity lcu KA
Type	Rated current (A)	Rated insulating voltage	Pole number	Rated operating voltage	AC380V (400)	AC660V (690)	DC250V	AC380V (400)	AC660V (690)
S-125E	12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125	660V	two three four	380V 660V	15	-	-	7.5	-
S-125S	12.5, 16, 20, 25, 32, 40, 50, 63, 80, 100, 125				25	-	20	16	-
S-160S	16, 20, 32, 40, 50, 63, 80, 100, 125, 160				35	8	20	18	-
S-160H	16, 20, 32, 40, 50, 63, 80, 100, 125, 160				50	10	40	25	-
S-250S	100, 125, 160, 180, 200, 225, 250				65	10	40	18	-
S-250M					35	16	40	30	-
S-250H					50	18	40	48	-
S-400S	200, 225, 250, 315, 350, 400				65	16	40	18	-
S-400M					50	20	40	30	-
S-400H					65	25	40	48	-
S-630S	400, 500, 630				80	20	40	30	-
S-630M					50	25	40	48	-
S-630H					65	30	40	60	-
S-800S	500, 630, two three four 700, 800				80	20	40	30	-
S-800M					55	25	40	48	-
S-800H					70	30	40	60	-
1250S	630, 700, 800, 1000, 1250				95	25	40	35	-
1250M					55	28	40	50	-
1250H					70	35	40	75	-
1600S	800, 1000, 1250, 1600,				95	25	40	35	-
1600M						28	40	50	-
1600H						35	40	75	-

Specification

Type	T1-100	T1-160	T3-250	T5-400	T5-630	T6-800	T7-1250	T7-1600
Pole nunmber	1,3	3	3	3	3	3	3	3
Rated current ln(A)	25,32,40,50,60,80, 100	125,160	160,200,250	300,400	500,630	700,800	1000,1250	1600
Rated insulation voltage Ui(V)	AC500	AC660	AC660	AC660	AC660	AC660	AC660	AC660
Utilisation category	A	A	A	A	A	A	A	A
Rated ultimate short-circuit breaking capacity lcu(KA) at 415V	25	65	65	65	65	65	65	65
Rated short-circuit service breaking capacity lcs(%lcu)at 415V	75%	75%	75%	75%	75%	75%	75%	75%

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
