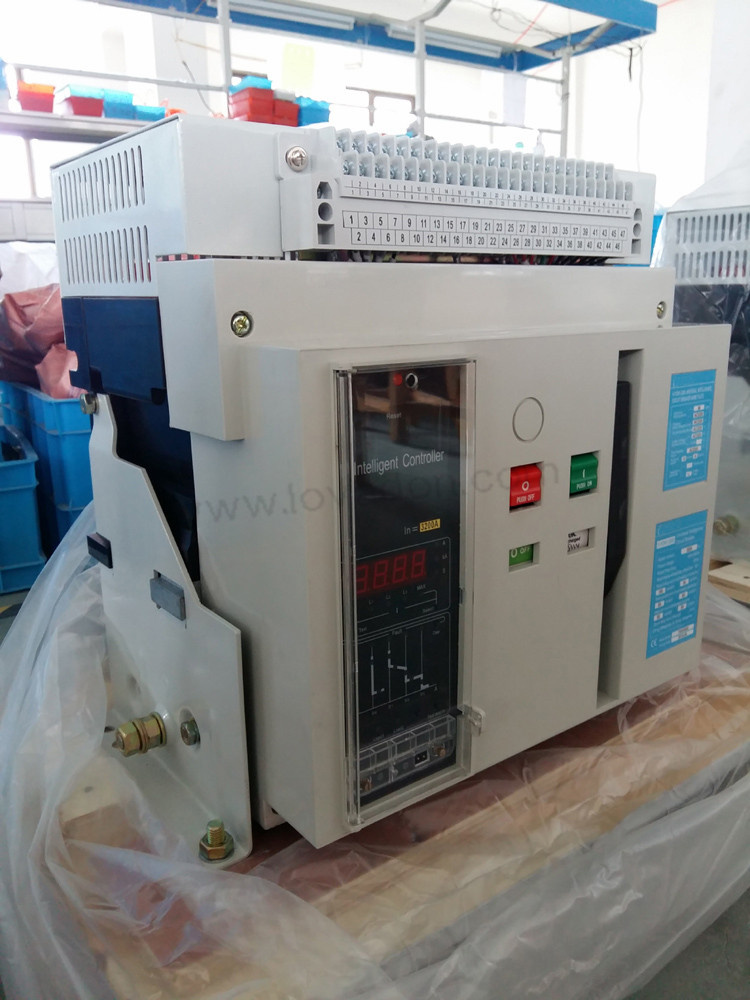

| Prod Model: |
LDW45 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Current: |
100A-1600A |
| Material Of Plastic Body: |
PC |
| Brand: |
Lovadon OEM |
| Breaking Capacity: |
Low Voltage Circuit Breakers |
| Operation: |
Electric Type |
| Speed: |
Normal Type Circuit Breaker |
| Arc-extinguishing Medium: |
Air |
| Certification: |
CE |
| Installation: |
Fixed Type and a Drawer Type |
| Structure: |
Conventional Circuit Breaker |
| Poles Number: |
1,2,3,4 |
Product Description
Specifications
Type
LDW45 -2000LDW45-3200LDW45-6300
Pole
3P, 4P3P, 4P3P, 4P
Using categary
BBB
Rated current In
A630, 800, 1000, 1250, 1600, 20002000, 2500, 30004000, 5000, 6300
Rated frequency
Hz50/6050/6050/60
Rated operation voltage Ue
V400 690400 690400 690
Rated insulation voltage Ui
V800800800
Arcing distance
mm000
Rated impulse withstanding voltage Uimp
V800080008000
Rated operation short circuit
breaking capacity Ics(O-t-CO-t-CO)400Vka5080100
690Vka405075
Rated limiting short circuit
breaking capacity Icu(O-t-CO)400Vka80100120
690Vka506585
Rated short circuit closing capacity Icm400Vka176220264
690Vka105143187
Rated short time withstanding
current Icw(O-t-CO,AC400V 0.4s)400Vka506585
Operation lifeper hourTimes202010
ElectricalTimes1000500500
MechanicalTimes1000050005000
Full breaking time
ms20~3020~3020~30
Full closing time
ms55~7055~7055~70
Power consumption3PW36012002000
4PW45017502300
Resistance of each poleFixed typeμ Ω119-
Draw out typeμ Ω201410
Dimensions(L*W*H)3P fixed typemm362*323*402422*323*402
3P draw out typemm375*461*452435*471*452
4P fixed typemm457*323*402537*323*402
4P draw out typemm470*461*452550*471*452
Approximate weight3P fixed typekg4155
3P draw out typekg7195245
4P fixed typekg51.565
4P draw out typekg86115260
| Specifications | | | | | |
| Type | | | LDW45 -2000 | LDW45-3200 | LDW45-6300 |
| Pole | | | 3P, 4P | 3P, 4P | 3P, 4P |
| Using categary | | | B | B | B |
| Rated current In | | A | 630, 800, 1000, 1250, 1600, 2000 | 2000, 2500, 3000 | 4000, 5000, 6300 |
| Rated frequency | | Hz | 50/60 | 50/60 | 50/60 |
| Rated operation voltage Ue | | V | 400 690 | 400 690 | 400 690 |
| Rated insulation voltage Ui | | V | 800 | 800 | 800 |
| Arcing distance | | mm | 0 | 0 | 0 |
| Rated impulse withstanding voltage Uimp | | V | 8000 | 8000 | 8000 |
Rated operation short circuit
breaking capacity Ics(O-t-CO-t-CO) | 400V | ka | 50 | 80 | 100 |
| 690V | ka | 40 | 50 | 75 |
Rated limiting short circuit
breaking capacity Icu(O-t-CO) | 400V | ka | 80 | 100 | 120 |
| 690V | ka | 50 | 65 | 85 |
| Rated short circuit closing capacity Icm | 400V | ka | 176 | 220 | 264 |
| 690V | ka | 105 | 143 | 187 |
Rated short time withstanding
current Icw(O-t-CO,AC400V 0.4s) | 400V | ka | 50 | 65 | 85 |
| Operation life | per hour | Times | 20 | 20 | 10 |
| | Electrical | Times | 1000 | 500 | 500 |
| | Mechanical | Times | 10000 | 5000 | 5000 |
| Full breaking time | | ms | 20~30 | 20~30 | 20~30 |
| Full closing time | | ms | 55~70 | 55~70 | 55~70 |
| Power consumption | 3P | W | 360 | 1200 | 2000 |
| | 4P | W | 450 | 1750 | 2300 |
| Resistance of each pole | Fixed type | μ Ω | 11 | 9 | - |
| | Draw out type | μ Ω | 20 | 14 | 10 |
| Dimensions(L*W*H) | 3P fixed type | mm | 362*323*402 | 422*323*402 | |
| | 3P draw out type | mm | 375*461*452 | 435*471*452 | |
| | 4P fixed type | mm | 457*323*402 | 537*323*402 | |
| | 4P draw out type | mm | 470*461*452 | 550*471*452 | |
| Approximate weight | 3P fixed type | kg | 41 | 55 | |
| | 3P draw out type | kg | 71 | 95 | 245 |
| | 4P fixed type | kg | 51.5 | 65 | |
| | 4P draw out type | kg | 86 | 115 | 260 |
