| Prod Model: |
L16A-SM40. Q1P |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Model: |
L16A-Sm40.Q1p |
| Type: |
Normal Open |
| Usage: |
Check Button |
| Kind: |
Single-pole on-off Switch |
Product Description

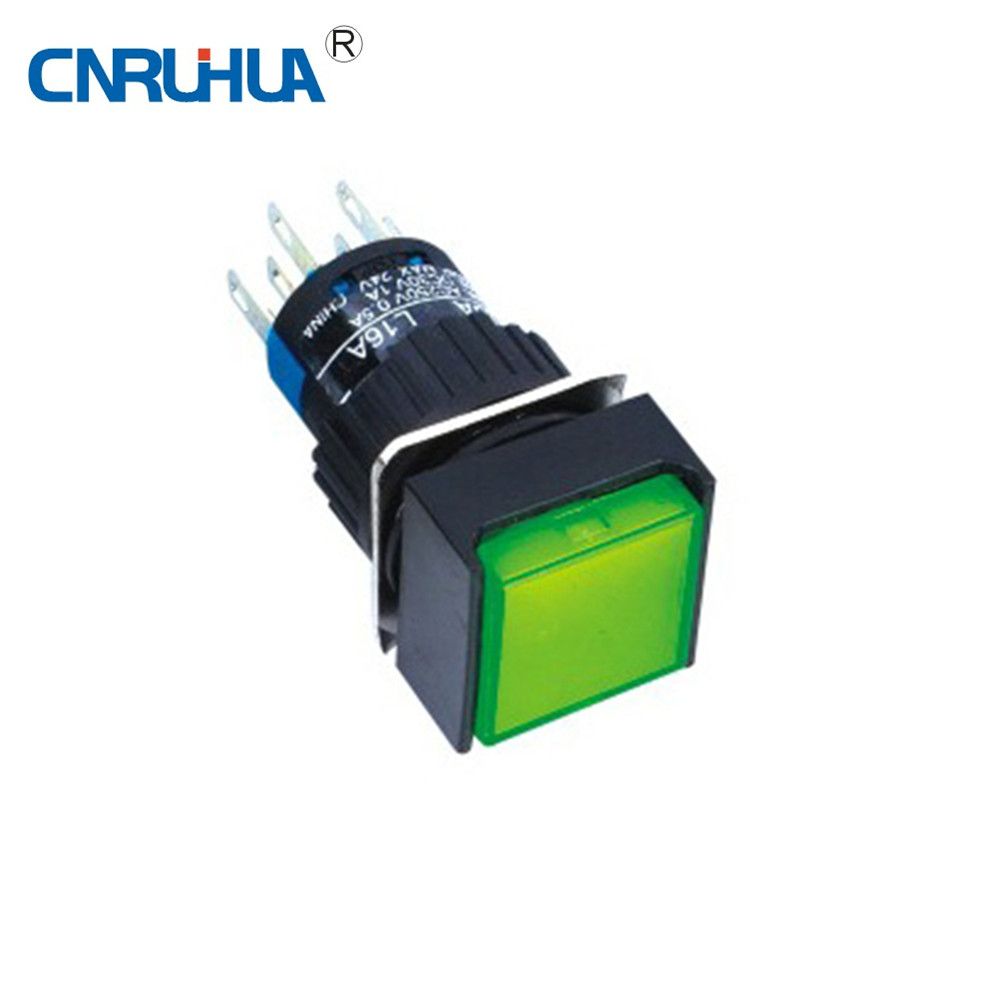

New Style Stainless Push Buttons Switch Waterproof
Characteristics
Working temperature: -20-- +55° C
Working humidity: 40~85%RH ( No condensation)
Contact force: 0.3N(30g)
Insulation resistance: ≤ 50mΩ
Contact resistance: ≥ 100mΩ
Rated insulation voltage: 250V, AC/DC
Max pressure:
Between the contact and the lamp beads 2000V, AC50Hz, min
Between sibling terminal 1000V, AC50Hz, min
Between the electrode terminal 2000V, AC50Hz, min
Anti-vibration ability:
50Hz Amplitude
1.2mm
Impact resistance: ≥ 10g
Operating force: 2-5N
Operating distance: (button)3mm
Life time
1. Machine:
Self-settable button: 1, 000, 000 times
Self-locking button: 500, 000 times
Key button: 200, 000times
2. Electric ≥ 50, 000times
Contact materialSilver
Silver alloy
Silver-plated,
Plating thickness 3μ M
IP grade IP40(sealed) IP65(waterproof)
Notes: AC inductive load PF0.6-0.7
DC inductive load L/R=7msec
Minimum load (Ref. ) 5V, 1mA AC/DC
| Outline | Contact | Operation types | IP Grade | Model NO. | Remarks |
| Square | -- | signal light | IP40 | L16A-SI40.Q | Red orange yellow green
blue white black
(no lights in black)
Optional Contact structure DPDT
IP Grade: IP40,IP67
IP67 shall be itstalled Enclosures. |
| SPDT | self-restoring | IP40 | L16A-SM40.Q1P |
| IP65 | L16A-SM65.Q1P |
| self-locking | IP40 | L16A-SA40.Q1P |
| IP65 | L16A-SA65.Q1P |
DPDT | self-restoring | IP40 | L16A-SM40.Q2P |
| IP65 | L16A-SM65.Q2P |
| self-locking | IP40 | L16A-SA40.Q2P |
| IP65 | L16ASA65.Q2P |
| Characteristics |
| Working temperature | -20° C -- +55° C | insulation
resistance | ≤50mΩ |
| Working humidity | 40~85%RH
(No condensation) | contact
resistance | ≥100mΩ |
| contact force | ≈0.3N(30g) | rated insulation
voltage | 250V,AC/DC |
| Max pressure | Between the contact and the lamp beads 2000V,AC50Hz,min |
| Between sibling terminal 1000V,AC50Hz,min |
| Between the electrode terminal 2000V,AC50Hz,min |
anti-vibration
ability | 50Hz Amplitude
≈1.2mm | Operating
force | 2-5N |
impact
resistance | ≥10g | operating
distance | (button)≈3mm |
| Life time | Machine | Self-settable
button | 1,000,000 times | Contact
material | Silver
Silver alloy
Silver-plated,
plating thickness
3μm |
Self-locking
button | 500,000 times |
| key button | 200,000times |
| Electric | ≥50,000times |
|
|
| IP grade | IP40(sealed) IP65(waterproof) |
| Contact capacity |
| Max voltage | 250V AC/DC |
| Thermocurrent | 3A |
| Working voltage | 24V | 110V | 220V |
| Current | AC250V/50Hz | resistive current | -- | 1.0A | 0.5A |
| reactive current | -- | 0.7A | 0.5A |
| DC | resistive current | 1.0A | 0.2A | -- |
| reactive current | 0.7A | 0.1A | -- |
| Contact material | Gold-silver-plated contact |
