Best-Selling 12/24V Intelligent PWM Solar Controller

Name: Best-Selling 12/24V Intelligent PWM Solar Controller
Brand: all-electronics-online.com
SKU: 821837215
Availability: InStock
Rating: 4.5 (93 reviews)

Price:	US $ 5.9/Piece
Min Order:	2000/Piece
Pay Type:	L/C,T/T,Western Union,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	Solar controller-168
Application:	LED Products
Signal Transmission:	IR Remote Control
Certification:	RoHS
Universal:	Universal
Transmission Distance:	<50m
Voltage:	12V
Material:	Plastic
Type:	Electric
Battery Type:	No

Product Description

Intelligent Solar controller for solar street lights

Model NO.: Solar controller-168
Certification: CE
Rated Voltage: 12V 24V 48V
Discharge Current: 30A
Max Solar Input: 41V
Discharge Drop: <0.25V
Operating Temperature: -35~+60 ºC
Charge Mode: PWM Charging
Transport Package: Standard Export Box Package
Origin: shenzhen China

Condition: New
Application: Solar System Controller, Charger Controller, Lighting Controller, Solar Working Station
Charge Current: 30A
Display: LCD Screen
Charge Drop: <0.2V
Self-Consume: <10mA
Size/Weight: 133*70*35mm /150g
Trademark: FEEO
Specification: CE ISO9001

Product Description

China price 30A 12V Solar Controller Display USB for Solar System

Product Description

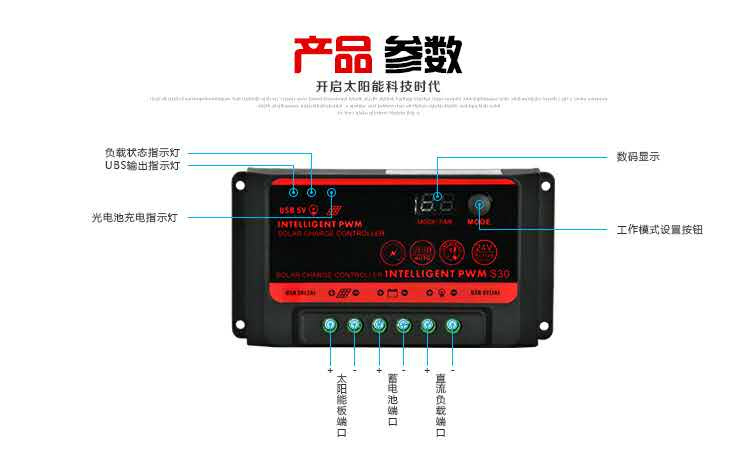

Solar Controller Display Features:
1.Build-in industrial micro controller;
2.Big LCD display, all adjustable parameter;
3.Fully 4-stage PWM charge management;
4.Built-in short-circuit protection,open-circuit protection,reverse protection,over-load protection;
5.Dual mosfet Reverse current protection,low heat protection.
Solar Controller Display Parameters:

Item	solar charge controller

Batt voltage	12V/24V auto			48V
Charge current	10A	20A	30A	20A	30A
Discharge current	10A	20A	30A	20A	30A
Max Solar input	<50V			<80V
Equalization	BO1 Sealed BO2 Gel BO3 Flood
	14.4V 14.2V 14.6V
Float charge	13.7V(default, adjustable)
Discharge stop	10.7V(default, adjustable)
Discharge reconnect	12.6V(default, adjustable)
USB output	5V/3A
Self-consume	<10mA
Operating temperature	-35~+60 ºC
Note:all red color voltage X2, X4 while using 24V, 48V system
