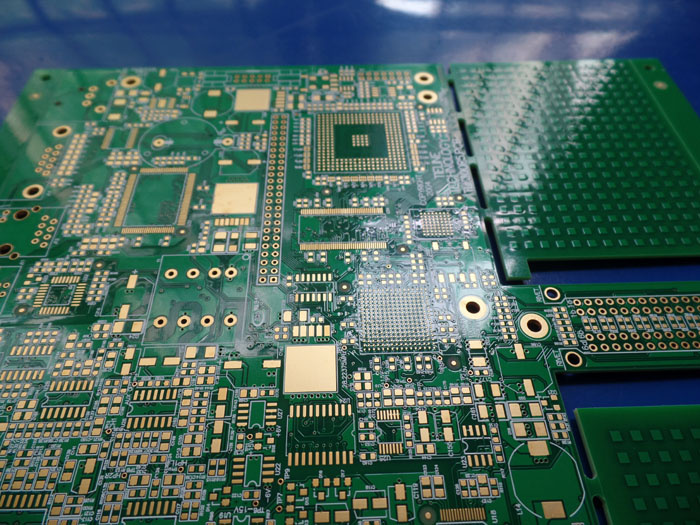

BGA Circuit Board 18 Layer Impedance Controlled PCB with Enig

Name: BGA Circuit Board 18 Layer Impedance Controlled PCB with Enig
Brand: all-electronics-online.com
SKU: 819892615
Availability: InStock
Rating: 4.7 (85 reviews)

Price:	US $ 0.98/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-148-V1.48
Final Foil External:	1 Oz
Final Foil Internal:	1 Oz
Final Height Of PCB:	2.5mm
Surface Finish:	Immersion Gold
Solder Mask Color:	Green
Colour Of Component Legend:	White
Impedance Control:	Single Trace,Track 10 Mil,50ohm.
Impedance Control.:	Differential Pairs,4.5 Mil / 4.5 Mil, 95ohm
Via:	Plated Through Hole(Pth), Via in Pad Under BGA, Ep
Minimum Trace And Space:	4.5 Mil/4.5 Mil
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

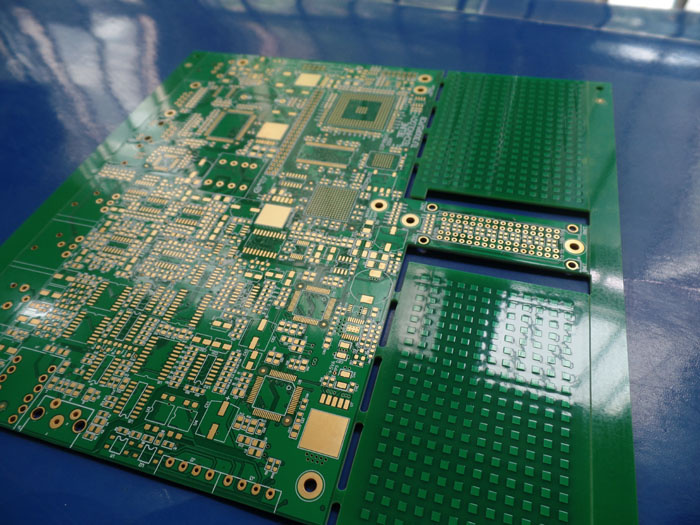

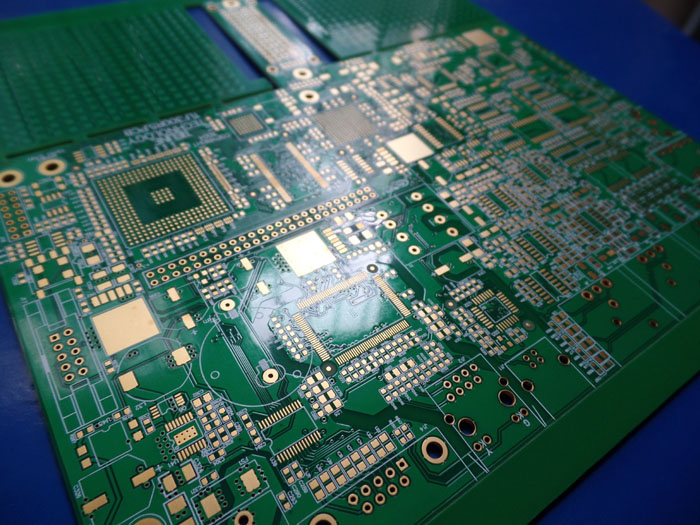

Fine Pitch BGA Printed Circuit Board PCB 18 Layer Via In Pad Impedance Controlled

Commodity Introduction
This is a type of FR-4 PCB for the application of GPS Tracker Device. It's an 18 layer board
at 2.5mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

PCB SIZE	120 x 122mm=1PCS=1design
BOARD TYPE
Number of Layers	Multilayer PCB, 18 layer PCB
Surface Mount Components	YES
Through Hole Components	NO
LAYER STACKUP	copper ------- TOP 17um(1oz)+plate
	65 um prepreg 1080 x 1
	copper ------- L02 35um(1oz)
	150um core FR-4
	copper ------- L03 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L04 35um(1oz)
	150um core FR-4
	copper ------- L05 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L06 35um(1oz)
	150um core FR-4
	copper ------- L07 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L08 35um(1oz)
	150um core FR-4
	copper ------- L09 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L10 35um(1oz)
	150um core FR-4
	copper ------- L11 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L12 35um(1oz)
	150um core FR-4
	copper ------- L13 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L14 35um(1oz)
	150um core FR-4
	copper ------- L15 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- L16 35um(1oz)
	150um core FR-4
	copper ------- L17 35um(1oz)
	65 um prepreg 1080 x 1
	copper ------- BOT 17um(0.5oz)+plate
TECHNOLOGY
Minimum Trace and Space:	4.5mil/4.5mil
Minimum / Maximum Holes:	0.3/5.0mm
Number of Different Holes:	16
Number of Drill Holes:	5619
Number of Milled Slots:	5
Number of Internal Cutouts:	0
Impedance Control:	Single Trace Impedance Control, L1,L18, Track 10mil,50Ohm. Differential Pairs Impedance Control, L1, L5, L10, L12, L18 Track/Space 4.5mil / 4.5mil, 95Ohm
Number of Gold finger:	0
BOARD MATERIAL
Glass Epoxy:	IT-180, FR-4 TG170ºC, er<5.4, ITEQ Supplied
Final foil external:	1oz
Final foil internal:	1oz
Final height of PCB:	2.5mm ±0.2
PLATING AND COATING
Surface Finish	Immersion gold 0.05µm over 3µm Nickel (12.2% area)
Solder Mask Apply To:	TOP and Bottom, 12micron Minimum
Solder Mask Color:	Green, PSR-2000 GT600D, Taiyo Supplied.
Solder Mask Type:	LPSM
CONTOUR/CUTTING	Routing
MARKING
Side of Component Legend	TOP
Colour of Component Legend	White, IJR-4000 MW300, Taiyo Supplied.
Manufacturer Name or Logo:	Marked on the board in a conductor and leged FREE AREA
VIA	Plated through hole(PTH), Via In Pad under BGA, Epoxy Resin Via plugging
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
DIMENSION TOLERANCE
Outline dimension:	0.0059"
Board plating:	0.0029"
Drill tolerance:	0.002"
TEST	100% Electrical Test prior shipment
APPLICATION:	Radio communication, GPS Tracker Device Electronic Circuit Board PLC Tutorial GPS Auto Tracker Portable GPS Tracker
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

BichengPCB serves global customers from Shenzhen, China
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified

Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board

Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing

Frequently Asked Questions
1. Do you sell BGA circuit board?
Yes. We offer micro fine pitch BGA circuit boards. The minimum pad diameter of BGA is 10mil for
prototypes,12mil for mass production.

2. Do you sell impedance controlled PCB?
Yes. Impedance controlled PCB's are used more and more popular in our common life. We can
offer differential impedance and single end impedance PCB.
