BGA Circuit Board 2.0mm Thick PCB 12 Layer with Enig
| Price: |
US $ 0.87/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-145-V1.45 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Final Height Of PCB: |
1.924mm |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
4.5 Mil/5.4 Mil |
| Minimum / Maximum Holes: |
0.35/6.5mm |
| Test: |
100% Electrical Test Prior Shipment |
| Via: |
Via in Pad Under BGA |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Multilayer PCB Manufacture BGA Circuit Board 12 Layer ITEQ FR-4 Via In Pad At
Competitive Price Applied In Power Converter
Commodity IntroductionThis is a type of FR-4 PCB for the application of Power Converter. It's a 12 layer board at 1.924mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 98 x 126mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 12 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate |
| 130 um prepreg 1080 x 2 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- BOT 17um(0.5oz)+plate |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.5mil/5.4mil |
| Minimum / Maximum Holes: | 0.35/6.5mm |
| Number of Different Holes: | 26 |
| Number of Drill Holes: | 1641 |
| Number of Milled Slots: | 2 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | 0 |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG135ºC, er<5.4.IT-140, ITEQ Supplied |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.924mm ±0.19 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.05µm over 3µm Nickel (23.2% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated through hole(PTH), via tented.
Via In Pad under BGA |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Power converter, Electronic Manufacturing Services
Biometric Access Control
Portable Sound Systems
Led Lighting Solutions
Access Systems |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |

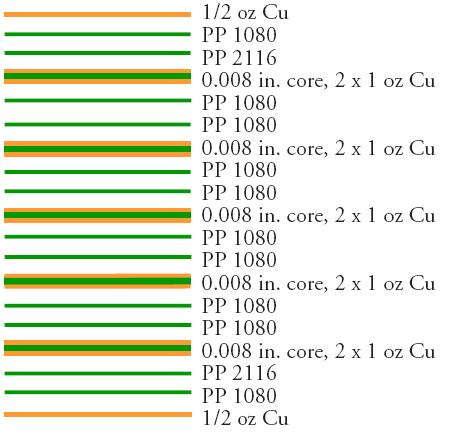

The Standard 12 layer PCB stackup of Bicheng Company.
Bicheng Quality Policy
Bicheng has developed series of management procedures and approaches to assure that PCBs
are in compliance with the customers' requirements, inclusive of selection of the vendors, work in
progress (WIP) inspection, outgoing delivery inspection and customer service etc.
Control of Production Process
Right manufacturing instruction (MI), comprehensive equipment management and maintenance
and process control, strict WIP inspection and monitoring as well as working instruction, all those
make the whole fabrication process totally controlled.
Final Control and Inspection
All PCBs have to be gone through the open and short test as well as visual inspection after passed
the specified physical tests. We own various advanced test equipment including customized, probe
flying test machines to guarantee that each PCB is 100% tested.
Product Delivery Audit
We set up a dedicated FQA department to inspect the PCB products according to the customer's
specifications and requirements by sampling. Qualified PCBs are going to be packed.
FQA also has to carry out a 100% audit of the warehouse packing and shipping products, including
product number, customer number, product quantity, shipping address and so on prior to shipment.
Customer Service
We sets up a professional customer service team to proactively communicate with customers and
timely deal with the customers' feedbacks. We highly focus on customers' needs and to understand
customers' demands, timely to adjust the policy of customer service and PCB product
requirements.
