BGA Circuit Board Multilayer PCB 10 Layer Impedance Control
| Price: |
US $ 0.86/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-170-V1.70 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Impedance Control: |
Single Trace, 5 Mil, 50 Ohm |
| Impedance Control.: |
Differential Pairs, 7 Mil/8.3 Mil, 100 Ohm |
| Solder Mask Color: |
Gloss Green |
| Colour Of Component Legend: |
White |
| Minimum / Maximum Holes: |
0.3/4.750mm |
| Minimum Trace And Space: |
4.5 Mil/4.5 Mil |
| Via: |
Plated Through Hole(Pth), Fine Pitch BGA |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
10 Layer Printed Circuit Board Impedance Controlled PCB FR-4 Immersion Gold Applied In
220V Inverter

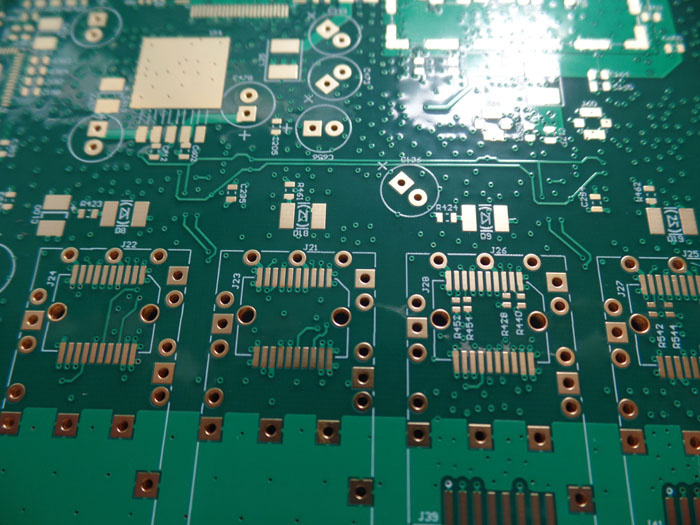

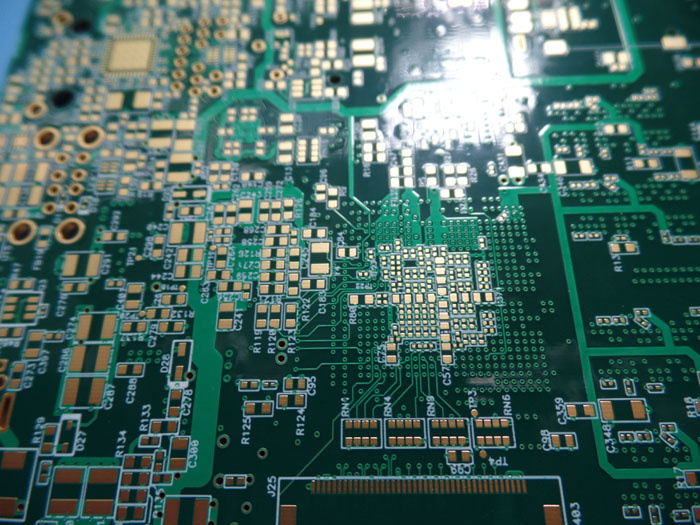

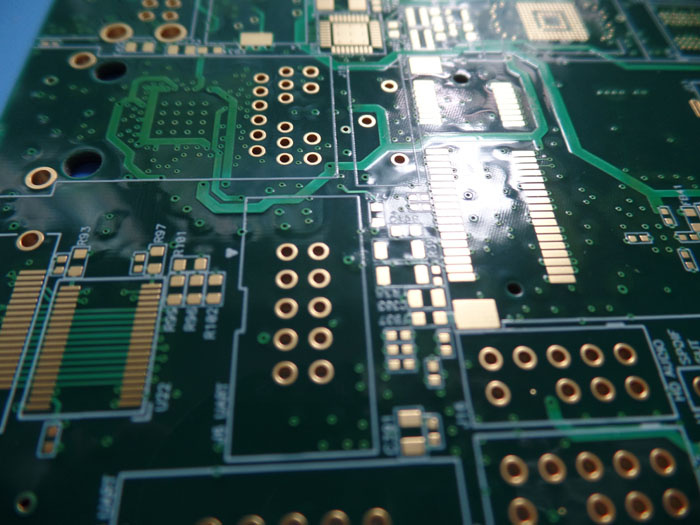

Commodity IntroductionThis is a type of FR-4 PCB for the application of 220V Inverter. It's a 10 Layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 113 x 121.5mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer, 10 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18 um(0.5 oz)+plate TOP Signal |
| 4 mil prepreg |
| copper ------- 35 um(1 oz) GND Plane |
| 5 mil FR-4 |
| copper ------- 18 um(0.5 oz) SIG1 |
| 5 mil prepreg |
| copper ------- 18 um(0.5 oz) SIG2 |
| 5 mil FR-4 |
| copper ------- 35 um(1 oz) PWR Plane |
| 13 mil prepreg |
| copper ------- 35 um(1 oz) GND Plane |
| 5 mil FR-4 |
| copper ------- 18 um(0.5 oz) SIG3 |
| 5 mil prepreg |
| copper ------- 18 um(0.5 oz) SIG4 |
| 5 mil FR-4 |
| copper ------- 35 um(1 oz) GND Plane |
| 4 mil prepreg |
| copper ------- 17 um(0.5 oz)+plate BOT Signal |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4.5 mil/4.5 mil |
| Minimum / Maximum Holes: | 0.3/4.750mm |
| Number of Different Holes: | 21 |
| Number of Drill Holes: | 1492 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Single trace Impedance control: L1-L10,
5 mil, 50 ohm +/-10%; L3-L4-L7-L8, 15 mil,
50 ohm+/-10%. Differential pairs impedance
control: L3-L4-L6-L8-L10, 5.5/6 mil, 85 ohm
+/-10%; L3-L4-L6-L8-L10, 4.5/8 mil, 90 ohm
+/-10%; L3-L4-L6-L8-L10, 7 mil/8.3 mil, 100
ohm +/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-180 TG>170ºC, er<5.4 |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025 µm over 3 µm Nickel, 16.5% area. |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP and Bottom. |
| Colour of Component Legend | White, IJR-4000 MW300 |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated through hole(PTH), Fine pitch BGA |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | 220V Inverter
AC Power Inverter
Wireless G Router
Inverter 220V
Sms Modem
Embedded Controller, Modem USB 3G |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |

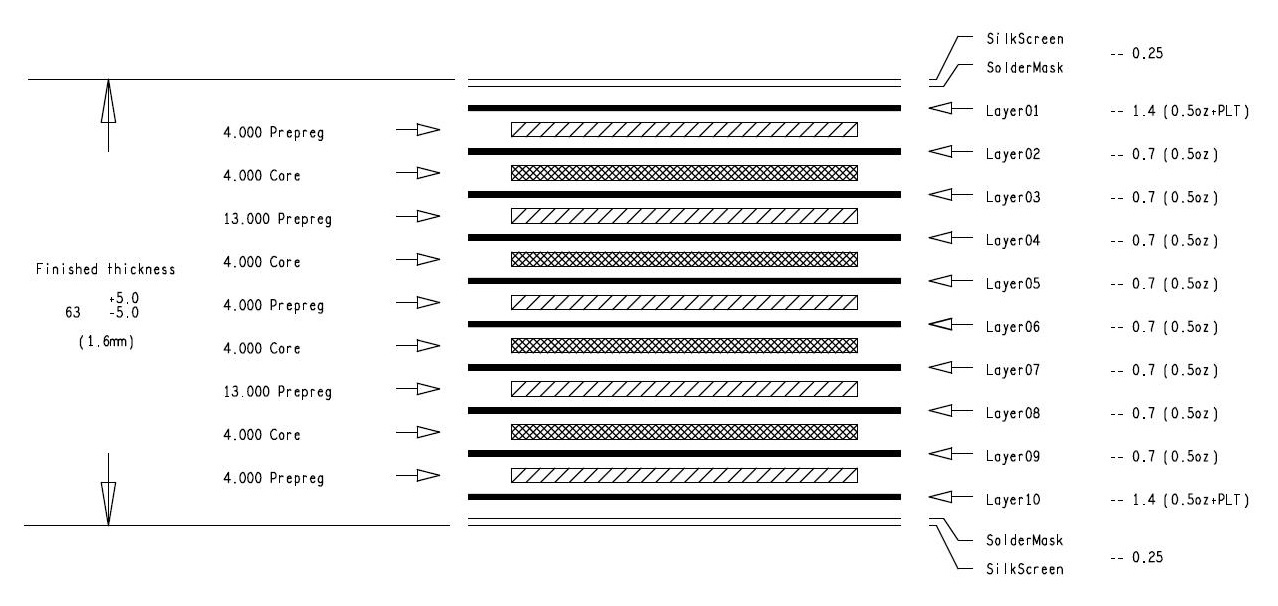

The standard 10layer PCB stackup with 1.6mm thickness from Bicheng Company
Now let's look at what Bicheng PCB can help you.
A. Various kinds of PCB products- Double sided PCB
- Multilayer PCB up to 32 layers
- FR-4 PCB (Tg130, Tg170)
- High frequency PCB (RO4350B, RO4003C)
-
- Flexible PCB
B. Multiple technology on PCB- Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
- Impedance controlled PCB
- Heavy copper PCB
- Hybrid material PCB
C. Many discount policies for new customers- SMT stencil foil, free of charge
- Prototype shipping cost, free of charge
- Prototype test, free of charge
- PCB panelization, free of charge
D. High quality PCB services- Prototype PCB and production PCB
- Quick turn-around prototypes
- Door to door logistic service
- Hassle-free, one-to-one service
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
