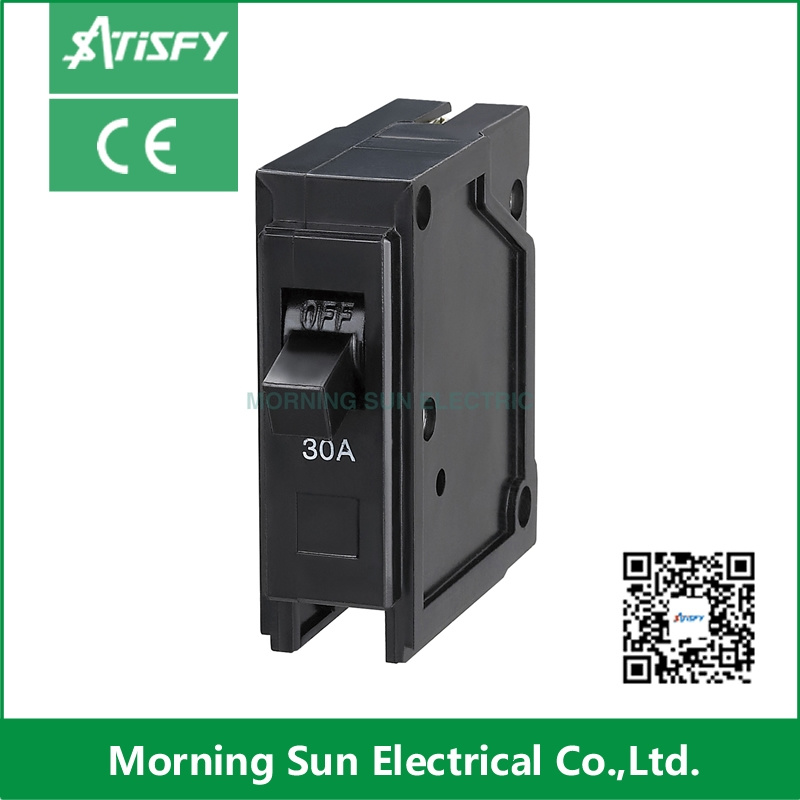

BH-P MCB

Name: BH-P MCB
Brand: all-electronics-online.com
SKU: 694553455
Availability: InStock
Rating: 4.7 (127 reviews)

Price:	US $ 0.60/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	500/Piece
Pay Type:	T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	BH-P MCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	1
Certification:	CE

Product Description

BH-P series is applicable to branching Circuit breakers,They are for power distribution boards, and products compatible for affixation to DIN rails are also available. Widely used in guesthouses, block of flats, high buildings, squares, airports, railway stations, plants and enterprises etc, in AC circuits 240V (single pole)up to 415V (3 pole) 50Hz for protection of overload short circuit and for circuit change-over in lighting system. Breaking capacity is 3KA. The items comply with IEC60898 standard

Number of Poles	1P, 2P, 3P
Rated current (A)	6, 10, 15, 20, 25, 30, 40, 50, 60, 70, 80, 90, 100
Rated Voltage (V)	110/220 (1P), 240/415 (2P), 415 (3P)
Breaking Capacity (A)	3000
Electrical Life (Times)	6000
Mechanical Life (Times)	20000

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
