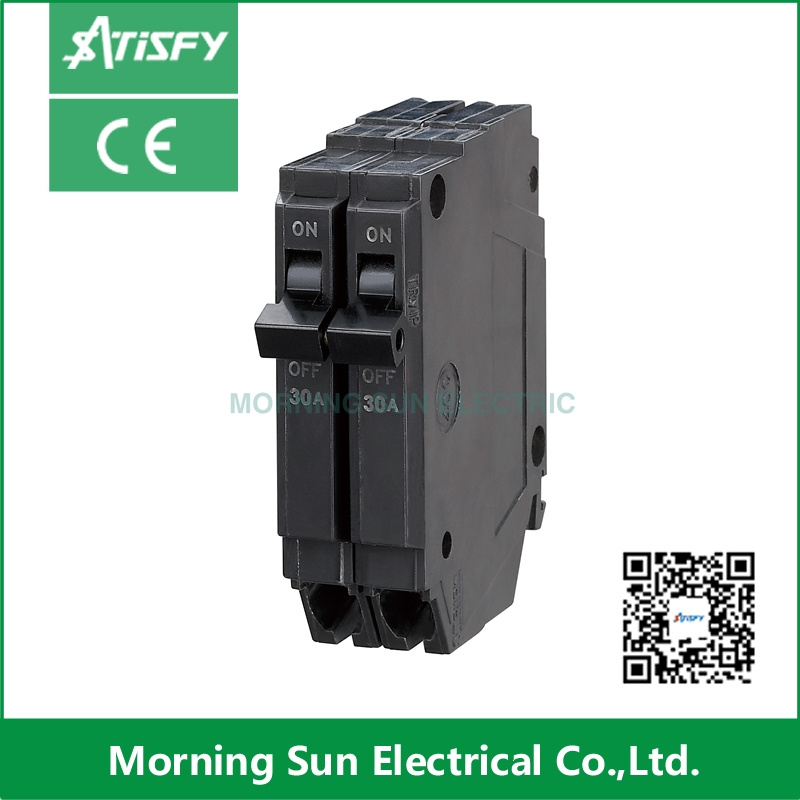

THQL MCB

Name: THQL MCB
Brand: all-electronics-online.com
SKU: 694554725
Availability: InStock
Rating: 4.9 (114 reviews)

Price:	US $ 0.60/Piece
Trade Terms:	FOB,CIF,EXW
Min Order:	500/Piece
Pay Type:	T/T,Paypal,Money Gram,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	THQL MCB
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

THQL mini circuit breaker applies to industry, commercial, lighting and electrical machine distribution system with AC415V, 50/60Hz,
Rated working current to 100A protect against overload and short circuit, The item is installed into plug-in type mounting base.

Standard	IEC 60898-1/GB 10963.1	IEC 60947-2/GB 14048.2
Rated Voltage(V)	230/400	240/415
Basic Test Temperature	30ºC	40ºC
Number of Poles	1P 2P 3P 4P 1P+N 3P+N DPN
Rated Current in(A)	6 10 16 20 25 32 40 50 63
Breaking Capacity(A)	3000 4500 6000 10000 15000
Rated Frequency	50/60Hz
Endurance(A)	≥ 4000
Pressure resistance 1 minute	2kv
Electrical Life	≥4000 times
Mechanical Life	≥10000 times
Protection Degree	IP20
Circumstance Temperature	-5ºC~+40ºC
Storage Temperation	-25ºC~+70ºC
Pollution Degree	2
Thermo-manetic Release Characteristic	A B C D

Morning Sun Electrical Co., Ltd. Founded in 1995, located in the Liushi Town - "Electric Capital", mainly producing Micro switch, Contactor, MCB, MCCB, Auto-Air-Conditioner Parts and Thermostats and related products, which have been sold to Europe, North America, South America, Middle East, Southeast Asia and so on. Based of the "Good quality, competitive price, timely shipment and nice service", now getting regular repeated orders and enjoying the good reputation among our customers.

"Morsun" is prepared and willing to cooperate with any friends from all over the customers for the mutual benefits and bright tomorrow!
