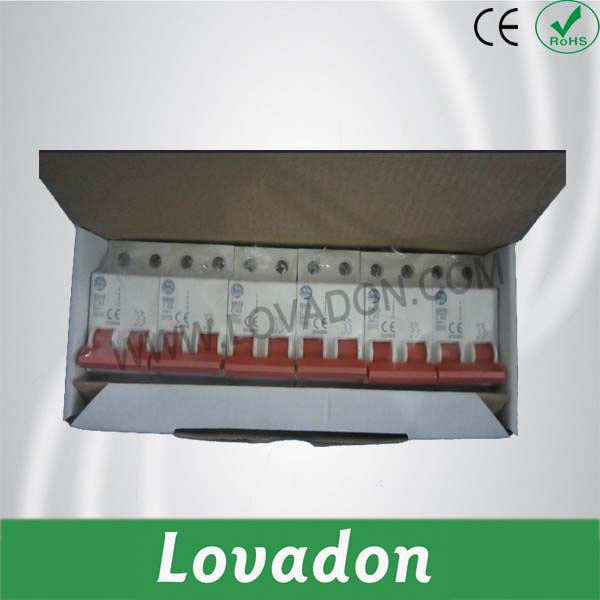

BKN C63 Miniature Circuit Breaker

Name: BKN C63 Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 766222955
Availability: InStock
Rating: 4.3 (146 reviews)

Price:	US $ 2.5-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BKN
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	230V
Standards:	IEC/En 60898
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Certification:	CE
Installation:	DIN Type
Poles Number:	1,2,3,4

Product Description

10 KA according IEC 60947-2 and IEC 60947-4
BKN C63 Miniature Circuit BreakerBKN C63 Miniature Circuit Breaker BKN C63 Miniature Circuit Breaker

Rated Current:	1A~63A
Rated Voltage:	230Vac(1P), 400Vac(2/3/4P)
No. of Pole:	1P, 2P, 3P,4P
Breaking Capacity:	6000A(2~40A)
	4500A(50~63A)
Standards:	IEC/EN 60898
Certificates:	CE,CB,VDE, SGS, RoHS

Specifications
Number of poles(p):1p, 2p, 3p, 4p
Rated current(A):6, 10, 16, 20, 25, 32, 40, 50, 63
Rated voltage(V):230/400
Breaking capacity(A):3000-10000

Number of poles	1p, 2p, 3p, 4p
Rated current(In)	6, 10, 16, 20, 25, 32, 40, 50, 63
Tripping curve	B,C,D
Rated frequency	50/60Hz
Rated voltage	230/400V
Mechanical life	10000
Installation temperature	no obvious impact and vibration
Utilization category	A
Rated limiting short-circuit current	3000-10000

Features:	Din rail Type Mcb
	Biggest Quantity For Useage
	Cheapest Type And Very Stable Quality
	Used by All Over The World

.Product Description
Provides protection against Short-circuit/Overload current and function of isolation.
High breaking current withstand capacity
Applicable to terminal and pin/fork type busbar connection
Equipped with finger protected connection terminals
Fire resistant plastic parts endures abnormal heating and strong impact
Automatically disconnect the circuit when earth fault/leakage current occurs and exceeds the rated sensitivity
Independent of power supply and line voltage, and free from external interference, voltage fluctuation
