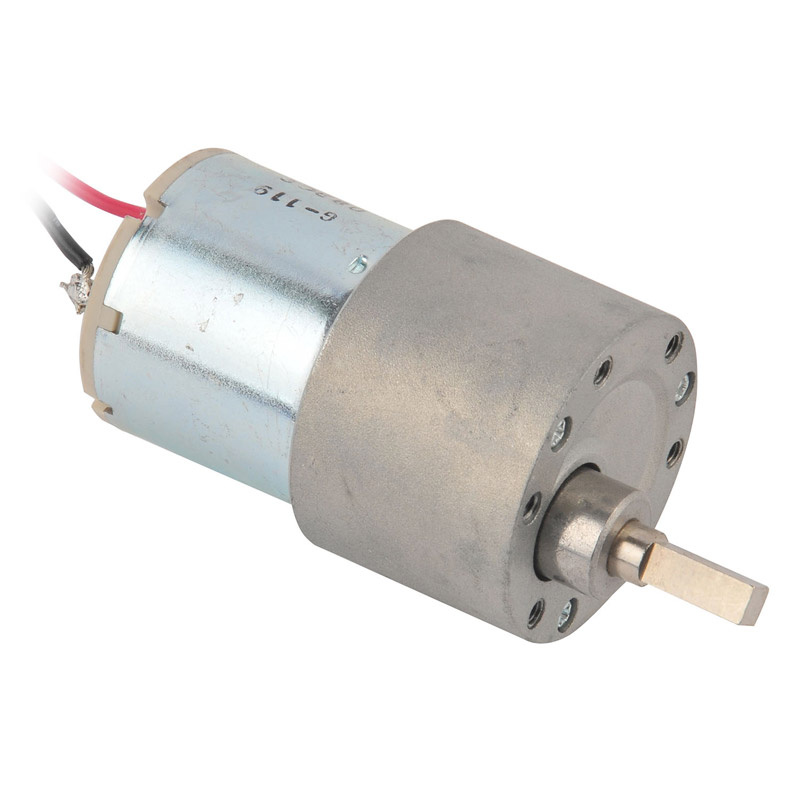

Bl-37 DC Gear Brushless Motor

Name: Bl-37 DC Gear Brushless Motor
Brand: all-electronics-online.com
SKU: 774461065
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 6piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	37BL
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Weight:	140-160g/PCS
CTN Size:	36.53117cm
60PCS/CTN:	G.W.11kgs
Application:	Power Tools
Operating Speed:	Adjust Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Certification:	CE

Product Description

DC GEAR MOTOR
Main voltage: 3V, 6V, 9V, 12V, 24V
Typical Applications: Auto shutter, Money detector, Binding machine, Automatic TV rack, Packing bank note machine, Limelight , Tissuse machine,Office equipment, Household appliances, Automatic actuator.
Motor Data:

Type	Rated Votage V	No load		Load Torque				Stall torque
		Current	Speed	Current	Speed	Torque	Output power	Torque	Current
		mA	rpm	mA	Rpm	gf.cm	W	gf.cm	mA
37BL123000	12	≤180	3000	≤280	2200	70	1.5	170	700
37BL124500	12	≤250	4500	≤350	3300	100	3.3	170	700
37BL126000	12	≤300	6000	≤500	4500	140	6.0	170	700
37BL243000	24	≤150	3000	≤230	2200	80	1.8	280	700
37BL244500	24	≤200	4500	≤400	3300	125	4.0	280	700
37BL246000	24	≤250	6000	≤750	4500	160	7.0	280	700

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
