Black Circuit Board 2 Layers PCB Copper and Immersion Gold
| Price: |
US $ 0.82/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-824-V8.24 |
| Board Thick: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
35 Um (1 Oz) |
| Final Foil Internal: |
1 Oz |
| Soldermask Color: |
Black |
| Silkscreen Color: |
No Required |
| Minimum Trace And Space: |
6 Mil / 6 Mil |
| Minimum / Maximum Holes: |
0.4 mm / 1.2 mm |
| Via: |
Minimum Size 0.4 mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.1 General description

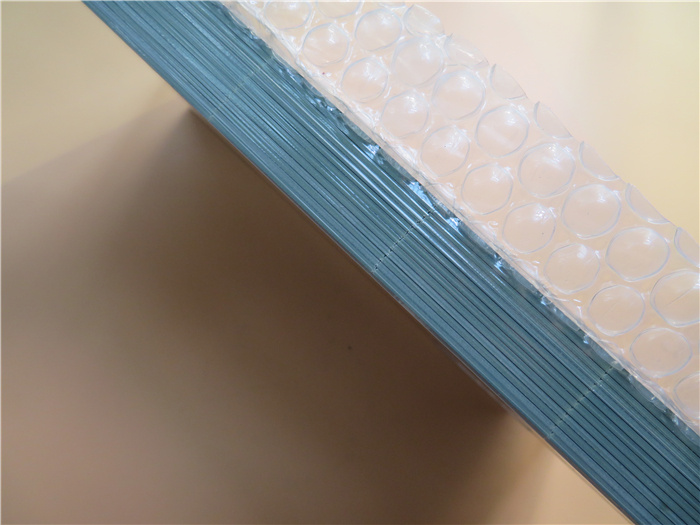

This is a type of double sided PCB built on FR-4 substrate with Tg 150°C for the application of
Wireless Speaker System. It's standard 1.60 mm thick, no silkscreen. Black solder mask covers
both sides and immersion gold are on pads. The base material is used from ITEQ IT-158, entire
board supplying 45 PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied
Gerber data. Each 25 panels are packed for shipment.
1.2 Features and benifits
a. Very Low Moisure Absorption and better CAF resistance;
b. Excellent dimensionaly stability;
c. SMT process is resistant to reflow soldering, resistant to rework;
d. Long storage time,it can be stored for more than 1 year in vacuum bag;
e. Meeting your PCB needs from prototype to mass production;
f. Powerful PCB capabilities support your reaearch and development, sales and marketing;
g. Competitive price;
h. On-time service;
i. ISO9001, ISO14001, TS16949, UL Certified;
1.3 Application
Surveillance Systems, Voltage Converter, Modem USB, Toroidal Transformer, Vehicle GPS
Tracker, GPS GSM Tracker, Circuit Board Parts, PLC Control System, Converter DC To DC, Cell
phone transmission.
1.4 Parameter and data sheet| PCB SIZE | 270 x 192mm=45PCS |
| BOARD TYPE | Double Sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| FR-4 1.5mm |
| copper ------- 18um(0.5oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6 mil / 6 mil |
| Minimum / Maximum Holes: | 0.4 mm / 1.2 mm |
| Number of Different Holes: | 7 |
| Number of Drill Holes: | 453 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg150ºC, er<5.4, IT-158, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6 mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (26.1% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Black, KSM-S6189BK31 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, V-cut |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.4 mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
