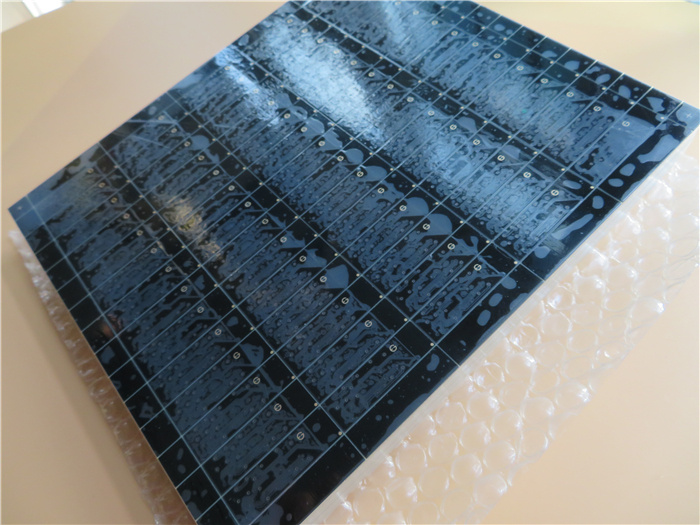

Black PCB Board Fr-4 2 Layers Copper and Immersion Gold
| Price: |
US $ 0.95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-823-V8.23 |
| Board Thick: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Out Layer Copper: |
35 Um (1 Oz) |
| Final Foil Internal: |
1 Oz |
| Soldermask Color: |
Black |
| Silkscreen Color: |
No Required |
| Minimum Trace And Space: |
6 Mil / 6 Mil |
| Minimum / Maximum Holes: |
0.3 mm / 0.6 mm |
| Via: |
Minimum Size 0.3 mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
1.1 General description
This is a type of double sided PCB built on FR-4 substrate with Tg 150°C for the application of
Wireless Security System. It's standard 1.60 mm thick, no silkscreen. Black solder mask covers
both sides and immersion gold are on pads. The base material is used from ITEQ IT-158, entire
board supplying 70 PCBs per panel. They're fabricated per IPC 6012 Class 2 using supplied
Gerber data. Each 25 panels are packed for shipment.
1.2 Features and benifits
a. Low Z-CTE and excellent through hole reliability;
b. RoHS Compliance and conformity to IPC1401/99;
c. Excellent surface planarity for CSP mounted components to reduce failure rate during
assembly and soldering;
d. High solderability, no stressing of circuit boards and less contamination of PCB surface;
e. Engineering design prevents problems from occurring in pre production;
f. ISO9001, ISO14001, UL certified manufacturing factory;
g. Eligible products rate of first production: >95%
h. Professional and experienced engineers;
i. No MOQ, low cost for prototypes and small runs quantity;
1.3 Application
HDMI Adapter, Transceiver, WiFi Amplifier, Electrical Transformer, Waveform Generator, Rv
Inverter, Isolated DC DC Converter, Access Control Lists, Physical Access Control Systems,
Cell phone repeaters.
1.4 Parameter and data sheet| PCB SIZE | 220 x 190mm=70PCS |
| BOARD TYPE | Double Sided PCB |
| Number of Layers | 2 layers |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP layer |
| FR-4 1.5mm |
| copper ------- 18um(0.5oz)+plate BOT layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6 mil / 6 mil |
| Minimum / Maximum Holes: | 0.3 mm / 0.6 mm |
| Number of Different Holes: | 3 |
| Number of Drill Holes: | 421 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 Tg150ºC, er<5.4, IT-158, ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 1 oz |
| Final height of PCB: | 1.6 mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold (20% ) 0.05µm over 3µm nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Black, KSM-S6189BK31 |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing, V-cut |
| MARKING | |
| Side of Component Legend | N/A |
| Colour of Component Legend | N/A |
| Manufacturer Name or Logo: | N/A |
| VIA | Plated through hole(PTH), minimum size 0.3 mm. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
