| Prod Model: |
Fiber Optic Drop Cable/optical cable |
| Cable Type: |
FTTH Drop Cable |
| Cable Size: |
0.9/2.0/3.0 |
| Fiber Type: |
9/125 50/125 62.5/125 |
| Connector: |
Sc Upc |
| Mode Type: |
Multimode |
| Polishing: |
Upc |
| Fiber Mode: |
Singlemode G.657A1 |
| Cable Weight: |
20kg/Km |
| Outer Jacket Material: |
LSZH (Black/White) |
| Operating/Storage Temperature: |
-40 to +60°c |
| Application: |
Communication |
| Type: |
Single-mode Fiber |
| Connection Structure: |
SC |
| Certification: |
CCC |
Product Description

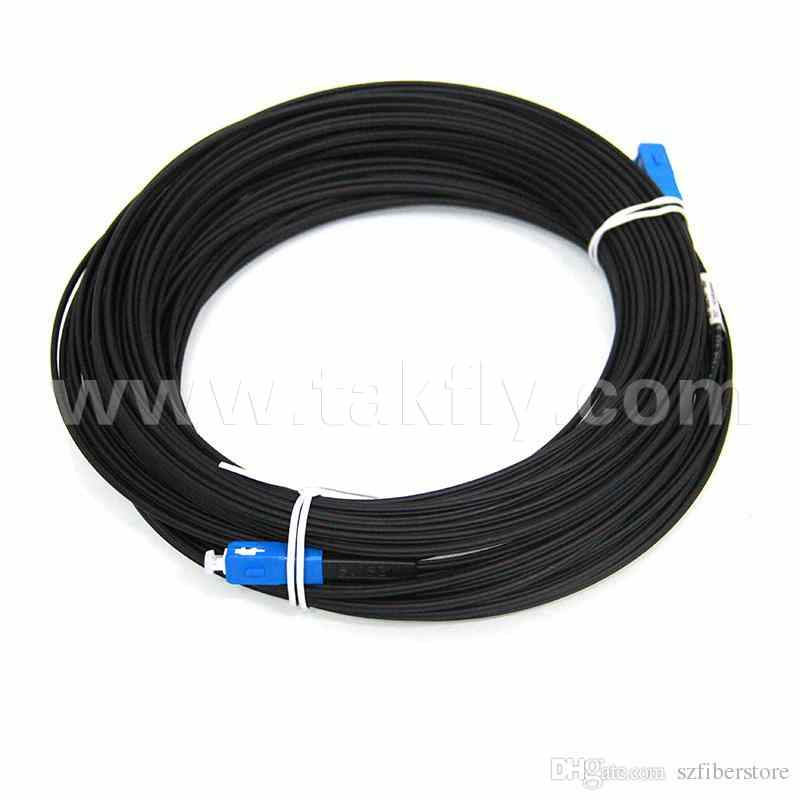

Black Single Core Fiber Optic Drop CableThe optical fiber unit is positioned in the center. Two steel wired or FRP are placed at the two sides. A steel wired as the additional strength member is also applied .Then the cable has a black color and white LSZH sheath.
Application 1. FTTH, LAN, PON & Optical CATV
2. Local ring net
3.Optical fiber communication system
4.Optical fiber test equipment
Features-Precision lock mechanical structure, high alignment accuracy
-Tensile strength structure design
-Using UL94V-0 plastic material
-Products accord with ROHS standard
-Low insertion loss
-High return loss-Good repeatability
-Good interchange
-Excellent environmental adaptability
Specification| Characteristic | SM , MM |
| Connector type | FC/SC/ST/LC/MU/MTRJ/ESCON/E2000 |
| Diameter(mm) | 0.9,2.0,3.0 |
| Polishing grade | SM PC | MM PC | UPC | APC |
| Insertion loss | ≤0.3dB | ≤0.4dB | ≤0.2dB | ≤0.3dB |
| Return loss | ≥40dB | ≥50dB | ≥65dB |
| Interchangeability | ≤0.2dB |
| Repeatability | ≤0.2dB |
| Operation temperature | -40~+85 |
