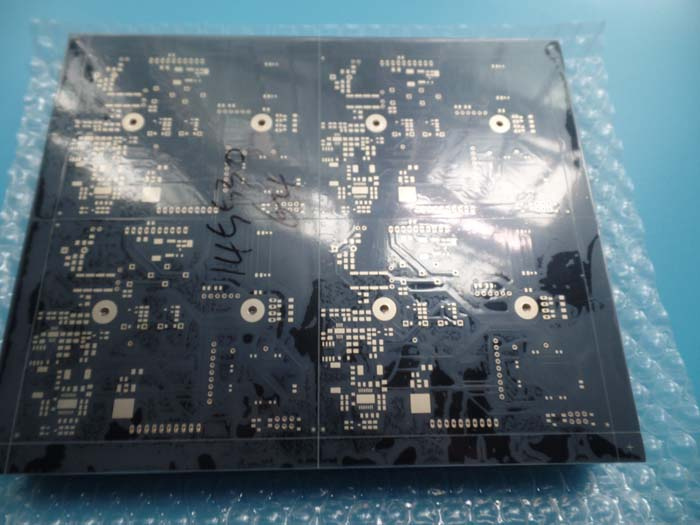

Black Solder Mask Multilayer PCB 6 Layer with Immersion Gold
| Price: |
US $ 2.51/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-221-V2.21 |
| Outer Copper Foil: |
1 Oz |
| Board Thickness: |
1.58+/-1.64mm |
| Surface Treament: |
Enig |
| Solder Mask: |
Black,Ksm-S6189bk31 |
| Legend: |
White,Kuang Shun |
| Min Line Width (Mil): |
7.2 |
| Min Line Spacing (Mil): |
5.3 |
| Electrical Test: |
100% PCB Passed |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Forming: |
V-Cut |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

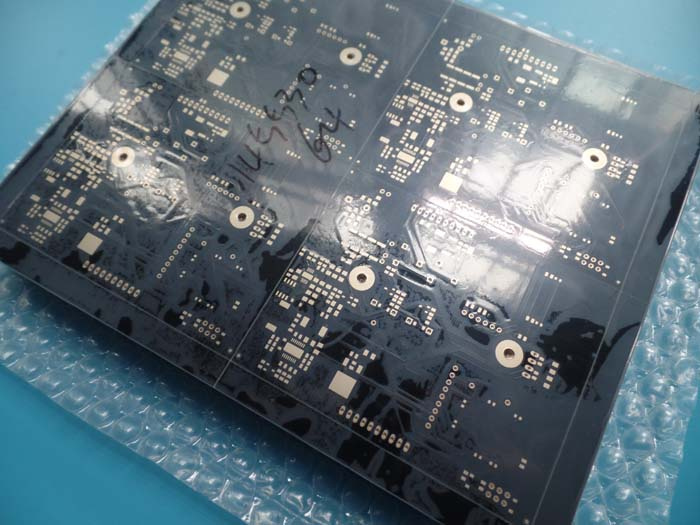

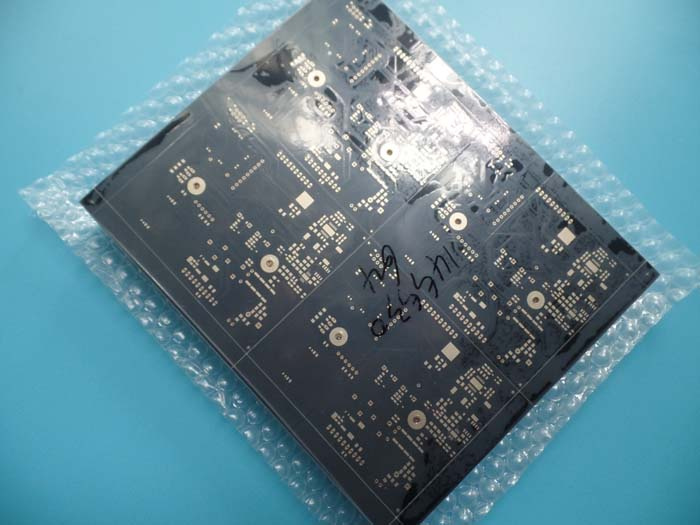

14 microns Black Solder Mask Multilayer PCB board Tg170 FR4 with Immersion Gold No Peeling off in Bluetooth Receiver
Commodity Introduction This is a type of FR-4 PCB for the application of Bluetooth Receiver. It's a 6 Layer board at 1.6mm thick.The ba
-se laminate is from ITEQ, Solder mask and silkscreen from KUANG SHUN. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 | FR-4 TG170 |
| Supplier | ITEQ | ITEQ |
| Board thickness | 1.6+/-10%mm | 1.58+/-1.64mm |
| Outer copper foil | >=35 um | 42.37 um |
| Inner copper foil | 1/1 OZ | 1/1 OZ |
| Warp-twist | <= 0.75% | 0.19% |
| Legend | Type | KUANG SHUN | KUANG SHUN |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | As requirement | OK |
| UL.logo | 94V0 | 94V0 |
| Date code | WWYY | WWYY |
| Marking form | As requirement | OK |
| Location | CS | |
| Min line width (mil) | 7 | 7.2 |
| Min line spacing (mil) | 5.5 | 5.3 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-S6189BK31 | KSM-S6189BK31 |
| Color | Black | Black |
| Thickness | >=10 um | 13 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface treament | ENIG | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| NO | Required Dimension (tolerance) | Actual dimension |
| 1 | 93.82 | 93.75 | 93.88 | 93.86 | 93.88 |
| 2 | 190.50 | 190.54 | 190.47 | 190.47 | 190.53 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| NO | Required | PTH | Actual dimension |
| 1 | 0.950 | Y | 0.950 | 0.925 | 0.975 | 0.950 |
| 2 | 1.600 | Y | 1.600 | 1.575 | 1.625 | 1.600 |
| 3 | 3.200 | Y | 3.200 | 3.175 | 3.225 | 3.200 |
| 4 | 0.900 | YY | 0.900 | 0.875 | 0.925 | 0.900 |
| 5 | 1.000 | Y | 1.000 | 0.975 | 1.025 | 1.000 |
| 6 | 1.050 | Y | 1.050 | 1.025 | 1.075 | 1.050 |
| 7 | 1.500 | Y | 1.500 | 1.475 | 1.525 | 1.500 |
| 8 | 1.300 | Y | 1.300 | 1.275 | 1.325 | 1.300 |
| 9 | 3.300 | N | 3.300 | 3.275 | 3.325 | 3.300 |
| 10 | 2.000 | N | 2.000 | 1.975 | 2.025 | 2.000 |
Learn PCB and Buy PCBThe Difficulty Factors for Multilayer boardsMultilayer PCB's represent one of the most complicates products in PCB industry. In order to design
producible multilayer PCB's, it is imperative that PCB designers understand the processes and difficulty
factors *Build-upThe more layers in a multilayer PCB's, the greater risk of mis-registration during laminate process. The
difficulty factor, therefore, increase with an increasing layer counts.*Core thickness of rigid inner laminatesInner layers are normally based on thin rigid laminate cores with copper cladding. The thinner the rigid laminates, the more difficult they are to handle, for example, in the etching process.*Thickness tolerance (total thickness inclusive of copper foils)The difficulty factor and the rejection rate depend very much upon the thickness tolerance required, and indirectly upon the layer build-up. When thickness tolerance T=±10%, obviously rejection ratio trends to
zero.
