Black Soldermask PCB Board 2 Layer Mininum Trace 4 Mil
| Price: |
US $ 0.39/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1342R3.8 |
| Legend Color: |
No Required |
| Board Thick: |
1.6mm |
| Copper Thick: |
1 Oz |
| Surface Finish: |
Immersion Gold |
| Pth Cu Thickness: |
20 Um |
| Solder Mask Colour: |
Black |
| Mininum Trace(Mil): |
4 Mil |
| Minimum Gap(Mil): |
4 Mil |
| Test: |
100% Electrical Test |
| Solderablity Test: |
Least 95% |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

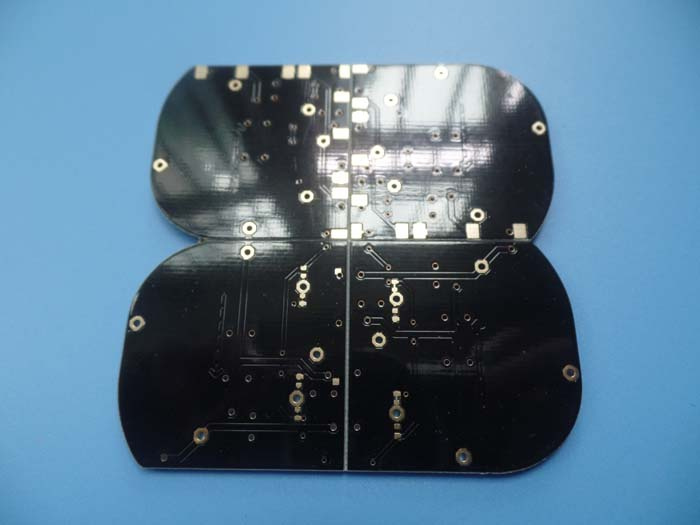

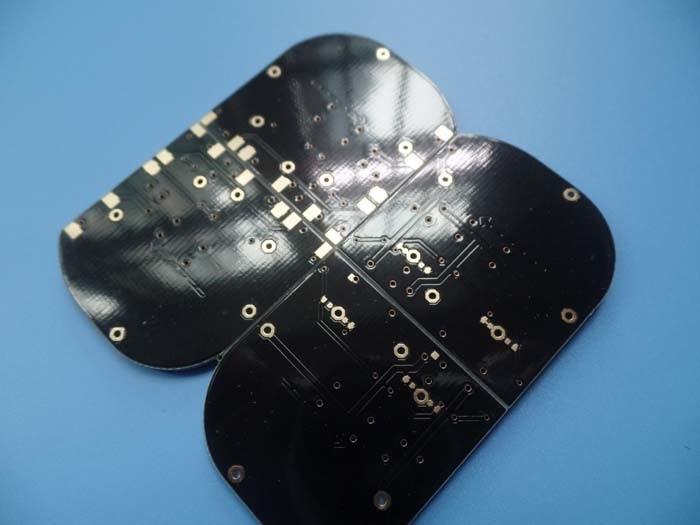

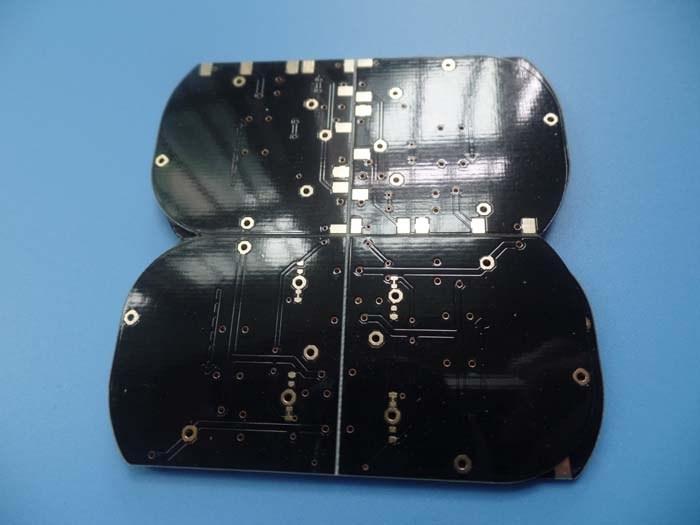

Black soldermask PCB Board 2 layer Mininum Trace 4 mil with Immersion Gold
Commodity IntroductionThis is a type of FR-4 PCB for the application of CODEC. It's a 2 layer board at 1.6mm thick. The
base laminate is from ITEQ, Solder mask from Kuang Shun. It's fabricated per IPC 6012 Class 2
using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| Number of Layers | 2 |
| Board Type | Double Sided PCB |
| Board Thickness | 1.6mm +/-0.16 |
| Board Material | FR-4 |
| Board Material Supplier | ITEQ |
| Tg Value of Board Material | 135ºC |
| |
| PTH Cu thickness | ≥20 um (See hole wall details) |
| Inner Iayer Cu thicknes | N/A |
| Surface Cu thickness | 35 um (1oz) |
| |
| Solder Mask Type and Model No. | LPSM, KSM-S6189BK31 |
| Solder Mask Supplier | KUANGSHUN |
| Solder Mask Colour | Black |
| Number of Solder Masks | 2 |
| Thickness of Solder Mask | 13um |
| |
| Type of Silkscreen Ink | N/A |
| Supplier of Silkscreen | N/A |
| Color of Silkscreen | N/A |
| Number of Silkscreen | N/A |
| |
| Mininum Trace (mil) | 4 mil |
| Minimum Gap(mil) | 4 mil |
| |
| Surface Finish | Immersion gold |
| RoHS Required | Yes |
| Warpage | 0.18% |
| |
| Thermal Shock Test | Pass, 288±5ºC,10 seconds, 3 cycles.
No delamination, no blistering. |
| Solderablity Test | Pass, 255±5ºC,5 seconds Wetting Area Least 95% |
| Function | 100% Pass electrical test |
The process of multilayer PCB
A) In general, a multilayer board consists of a number of very thin print-and-etch inner layers, but
drilling of holes has not been carried out. Outer layers of the multilayer board remain unetched.
B) Layers from top to bottom are bonded together in close registration by means of thin plies of
prepreg. The bonding is performed under close temperature and pressure control in a lamination
press.
C) After lamination, they are the processed in very much the same way as an ordinary double-
sided PTH boards, i.e. holes are drilled, cleaned and plated. Outer layers are etched to develop
the circuit pattern. Solder masks are applied and solder coating (HAS, ENIG etc) is performed.
