Black Soldermask PCB Circuit 6 Layer Fr4 with Immersion Gold

Name: Black Soldermask PCB Circuit 6 Layer Fr4 with Immersion Gold
Brand: all-electronics-online.com
SKU: 823526575
Availability: InStock
Rating: 4.3 (146 reviews)

Price:	US $ 0.81/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-390-V3.90
Finished Thickness:	1.58mm
Finished Copper Thickness:	1 Oz
Surface Finish:	Immersion Gold
Solder Mask Color:	Black
Silkscreen Color:	White
Trace Width (mm):	0.271mm
Spacing (mm):	0.193mm
Standard:	Ipc Class& 2
Warp and Twist:	0.23%
Electrioal Test:	100%,Pass
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

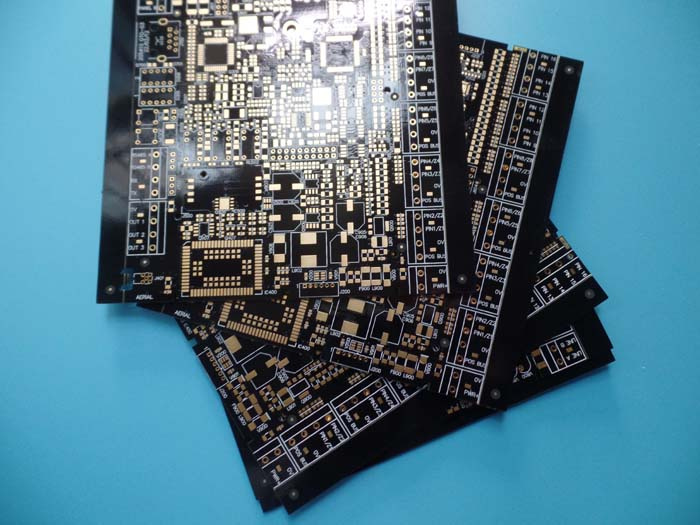

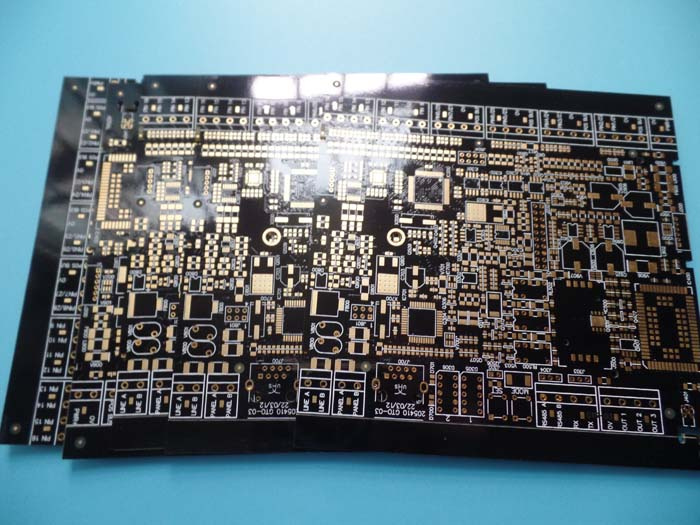

Black soldermask PCB circuit 6 Layer FR4 with Immersion Gold

Commodity Introduction
This is a type of FR-4 PCB for the application of CODEC. It's a 6 layer board at 1.58mm thick.
The base laminate is from Shengyi, Solder mask and silkscreen from KUANG SHUN and Taiyo.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.

Parameters & Data Sheet

Item	Description		Requirement	Actual

Laminate	Laminate Type		FR4:CTI:175V-249V	FR4:CTI:175V-249V
	Supplier		Shengyi	Shengyi
	Tg		TG >135	TG >135
	Finished thickness		1.6+/-0.16% MM	1.58MM
Plating Thickness	PTH Cu thickness		23um	25.06um
	Inner layer Cu Thickness		1/1 OZ	1/1 OZ
	Surface Cu thickness		35 um	50.07 um
Solder Mask	Material type		KSM-S6189BK31	KSM-S6189BK31
	Supplier		KUANGSHUN	KUANGSHUN
	Color		Black	Black
	Single / both sides		Both Sides	Both Sides
	S/M thickness		>= 10.0 um	25.97 um
	3M tape test		NO Peel Off	no peel off
Legend	Material type		S-380W	S-380w
	Supplier		Tai yo	Tai yo
	Color		White	White
	Location		Both Sides	Both Sides
	3M tape test		No peel off	no peel off
Circuit	Trace Width (mm)		0.254+/-20%mm	0.271mm
	Spacing (mm)		0.189+/- 20%mm	0.193 mm
Identification	UL mark		YES	OK
	Company Logo		YES	OK
	Date code		WWYY	WWYY
	Mark location		NA	OK
Surface Treatment	ENIG	Nickel	100u"	120u"
		Gold	4u"	4.12u"
Reliabilty Tests	Thermal shock test		288±5ºC,10sec, 3 cycles	NO Discolor,+ NO Delamination
	solder abllity test		245±5ºC	100% wetting
Function	Electrioal Test		100%	pass
Standard	IPC-A 600H class 2, IPC_6012C CLASS 2		100%	Pass
Appearance	Visual inspection		100%	Pass
	warp and twist		<= 0.75%	0.23%
Others	V-Cut thickness		0.4±0.1 mm	0.49mm
	Angle		30+/- 5	30º

Frequently used Unit Conversion in PCB industry
1 inch= 25.4mm
1 inch= 1000mil
1 foot = 12 inch=0.3048 meter

1mm = 39.37mil
1mm = 1000µm
1µm = 39.37 micro inch

1oz = 35µm = 1.4mil = 305g/m²

1inch² = 0.0645dm² = 6.4516cm² = 645.16mm²
1ft² = 144 inch² = 0.09290304m² = 9.29dm²
1m² = 1549.9969 inch²

Performance parameter of Aluminum,Copper, Iron and Ceremic

Material	Model	Hardness HB500KgF	Density (g/cm3)	Coefficient of thermal conductivity	Expansion coefficient (10E-6/K)
Aluminum	1100	32	2.71	218	23
Aluminum	5052	68	2.68	138	23
Aluminum	6061	95	2.7	155	23
Red copper	C1100	30	8.9	401	16.7
Iron	D3004	140	7.8	80	1.2
Ceramic	96% AL2O3	-	3.8	20-30	6
