Blind Via and BGA Multilayer PCB 12 Layer Cirucit Board
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-192-1.92 |
| Final Foil External: |
1 Oz |
| Final Height Of PCB: |
2.0mm |
| Surface Finish: |
Immersion Gold (Enig) |
| Solder Mask Color: |
Green |
| Colour Of Component Legend: |
White |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.25/3.0mm |
| Impedance Control: |
Differential Pairs |
| Via: |
Blind Via and BGA |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

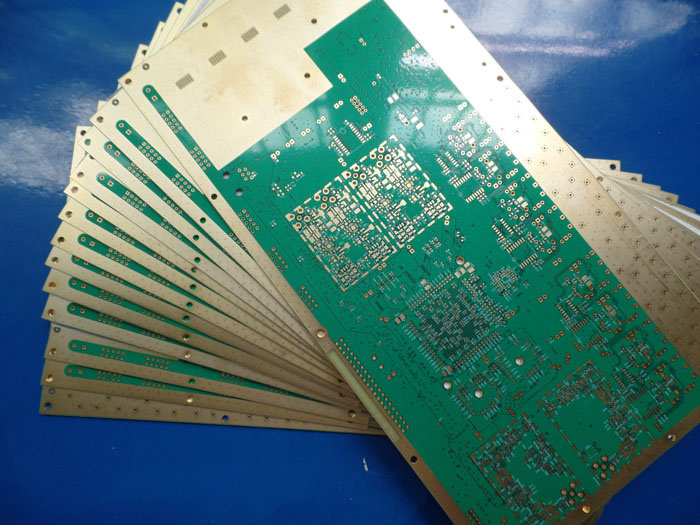

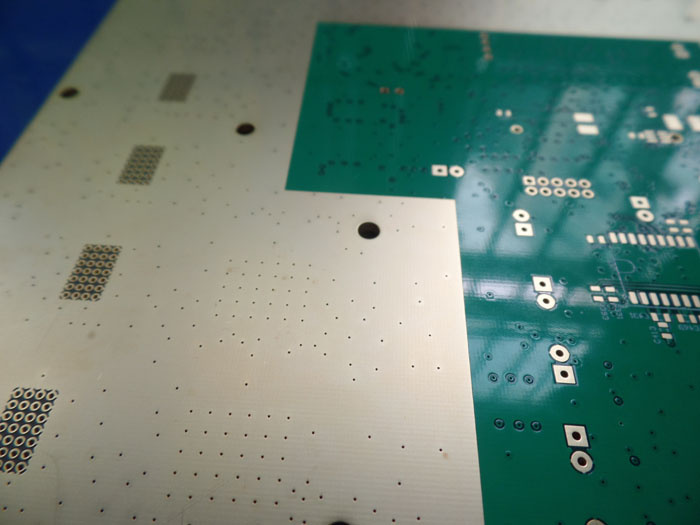

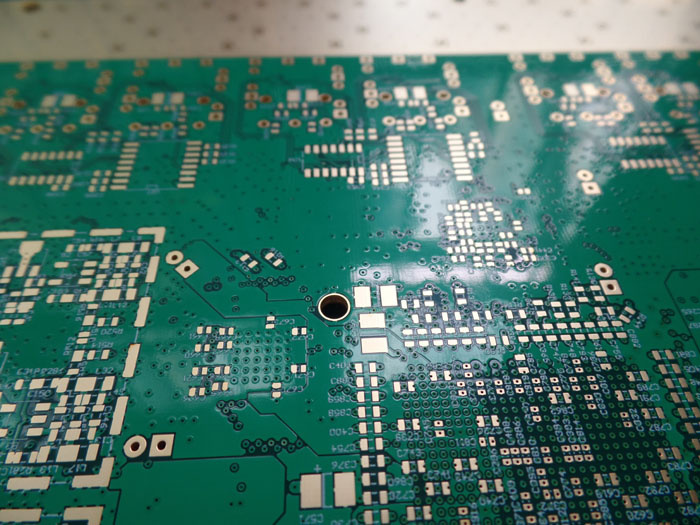

12 Layer Blind Via Printed Cirucit Board 2.0mm Thick With Green Mask Immersion Gold
Applied In Security System
Commodity IntroductionThis is a type of FR-4 PCB for the application of Security System. It's a 12 layer board at 2.0mm
thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 257 x 171.5mm=1PCS=1design |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 12 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |

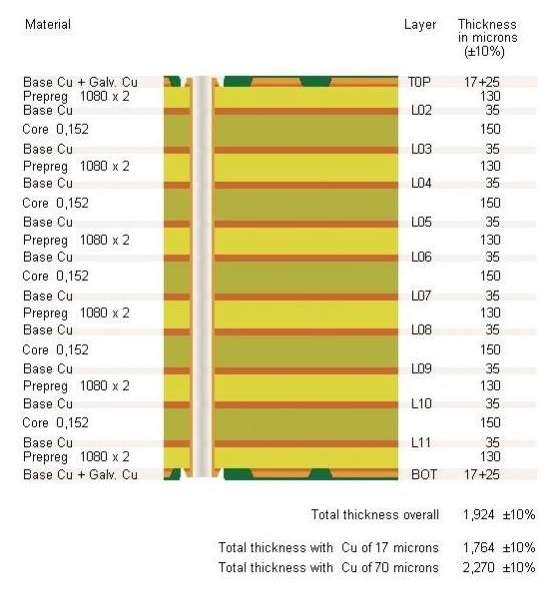

| LAYER STACKUP | copper ------- TOP 17um(1oz)+plate 25um |
| 130 um prepreg 1080 x 2 |
| copper ------- L02 35um(1oz) |
| 150um core FR-4 |
| copper ------- L03 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L04 35um(1oz) |
| 150um core FR-4 |
| copper ------- L05 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L06 35um(1oz) |
| 150um core FR-4 |
| copper ------- L07 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L08 35um(1oz) |
| 150um core FR-4 |
| copper ------- L09 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- L10 35um(1oz) |
| 150um core FR-4 |
| copper ------- L11 35um(1oz) |
| 130 um prepreg 1080 x 2 |
| copper ------- BOT 17um(0.5oz)+plate 25um |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.25/3.0mm |
| Number of Different Holes: | 26 |
| Number of Drill Holes: | 4013 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Differential pairs impedance control |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140, TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 2.0mm ±10% |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (ENIG)( 2 µ" over 100 µ" nickel) |
| Solder Mask Apply To: | Top and Bottom, 12micon Minimum. |
| Solder Mask Color: | Green, PSR-2000GT600D, Taiyo supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and leged FREE AREA |
| VIA | Plated Through Hole(PTH), Blind via top to inner layer 2,
via tented. Vin in pad under BGA package |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Surveillance Systems
Security System
Mobile Signal Booster
Wireless Surveillance System
Video Surveillance System
Embedded System
Industrial Automation |
TYPE OF ARTWORK
TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
The standard 12layer layer with 2.0mm thickness from Bicheng Company
Quality Policy
Bicheng has developed series of management procedures and approaches to assure that PCBs
are in compliance with the customers' requirements, inclusive of selection of the vendors, work
in progress (WIP) inspection, outgoing delivery inspection and customer service etc.
Evaluation and Audit of Suppliers
Suppliers have to be evaluated by Bicheng. In addition, Bicheng will appraise and rank suppliers
every year to guarantee the materials supplied are meeting Bicheng's requirements. Furthermore,
Bicheng continuously develop suppliers and supervise them to improve their quality and
environment management basing on the systems of ISO9001 & ISO14001.
Contract Evaluation
Bicheng shall review and verify customer's requirements to make sure that we have the capability
to satisfy customers' requirements including specifications, delivery and other demands prior to
accepting an order.
Making, audit and control of manufacturing data.
When customers' design data and specifications are provided to our market department, Bicheng
has to verify all the requirements. Then, convert the design data into manufacturing data by CAM.
Finally, a manufacturing instruction (MI) is generated according to the real manufacturing process
and technologies for manufacturing department as the basis for actual fabrication. MI must be
reviewed by independent engineers and QA engineers before issue.
Incoming Material Quality Control
All materials have to be inspected before warehousing. We established a series of strict inspection
procedure and instruction to control the incoming materials. Furthermore, various precise
inspecting instruments and apparatus guarantee the capability to judge the material good or not.
We issue material with first in first out principle, and give out "alarm" for the material that will reach
the shelf life to ensure the materials are used up before expiry.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
