Blind Via Circuit Board 4 Layer PCB with Immersion Golad
| Price: |
US $ 0.72/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-149-V1.49 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
0.5 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Green, Psr-2000 Gt600d, Taiyo Supplied. |
| Colour Of Component Legend: |
White, Ijr-4000 MW300, Taiyo Supplied. |
| Minimum Trace And Space: |
6.8 Mil/4.8 Mil |
| Minimum / Maximum Holes: |
0.3/3.3mm |
| Via: |
Plated Through Hole(Pth), Via Tented. Blind Via F |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

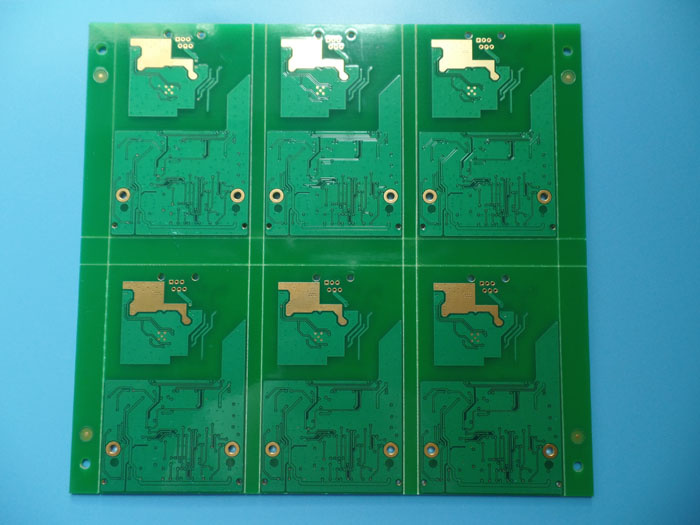

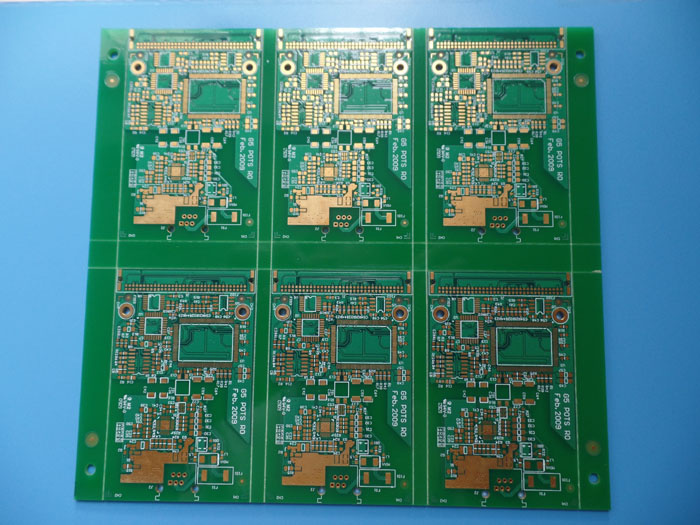

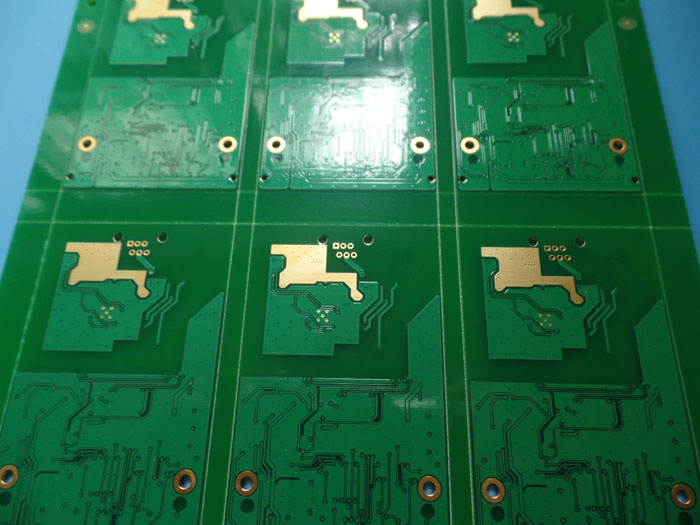

4 Layer Printed Circuit Board Blind Via PCB FR-4 at 1.6mm Thick Green Gold PCB
Commodity Introduction
This is a type of FR-4 PCB for the application of CCTV Security Systems. It's a 4 Layer board
at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's
fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are
packed separately.
Parameters & Data Sheet| PCB SIZE | 173 x 198mm=6PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35 um(1 oz)+plate TOP layer |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz) MidLayer 1 |
| FR-4 1.0mm |
| copper ------- 35 um(1 oz) MidLayer 2 |
| Prepreg 7628 0.195mm |
| copper ------- 35 um(1 oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 6.8 mil/4.8 mil |
| Minimum / Maximum Holes: | 0.3/3.3mm |
| Number of Different Holes: | 18 |
| Number of Drill Holes: | 754 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control: | no |
| Number of Gold finger: | 0 |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4 TG170ºC, CTI 175V-249V, er<5.4. ITEQ Supplied |
| Final foil external: | 1 oz |
| Final foil internal: | 0.5 oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (32.4%) 2 micoinch over
100 microinch nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Green, PSR-2000 GT600D, Taiyo Supplied. |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing. Fiducial marks |
| MARKING | |
| Side of Component Legend | TOP. |
| Colour of Component Legend | White, IJR-4000 MW300, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated through hole(PTH), via tented. \Blind via from top layer to
Inner layer 1. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Interface module, CCTV Security Systems
Automation Systems
Voip System
Router Gsm
Inverter DC To AC |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
Frequently Asked Questions
1.Do you sell blind via PCB?
Yes. Blind via is the hole starts from top layer or bottom layer and ends at one of inner layers. Blind
via usually are plugged by epoxy resin and it's not visible by our eyes.
2. Do you sell high temperature PCB?
Yes. The material stability of high Tg (glass transition temperature) is high so that a high Tg PCB
can be desirable. Multilayer and high layer PCB uses this material much.
3. How do you control the quality?
We believe engineering design prevents problems from occurring in preproduction. Our PCB and
Manufacturing process are certified by authorized organizations.
100% tests are inclusive of electrical test and AOI inspection, high voltage test, impedance control
test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test
and ionic contamination test etc.
Green PCB
Human beings have only one earth. Caring for the entire ecological environment and our lives are
closely related. Fresh work environment and sewage recycling are our responsibility.
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
