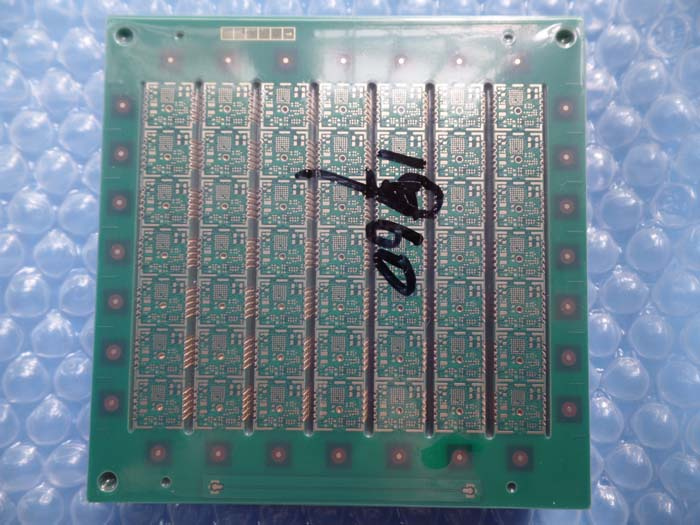

Blind Via Enig Multilayer PCB 6layer 0.6mm Thick Without Silkscreen
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-129-V1.29 |
| Number Of Layers: |
6 Layer PCB |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
0.5 Oz |
| Final Height Of PCB: |
0.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Gloss Green |
| Colour Of Component Legend: |
No Silkscreen Requried. |
| Minimum Trace And Space: |
4 Mil/4 Mil |
| Minimum / Maximum Holes: |
0.4/2.50mm |
| Test: |
100% Electrical Test Prior Shipment |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Via In Pad PCB Prototype Service FR-4 epoxy glass 6 Layers 0.6mm Thick And Blind Via
PCB Applied In GPRS Modem

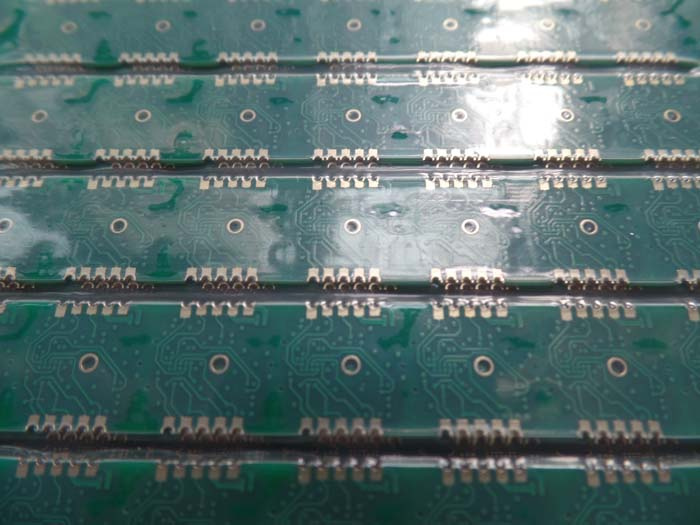

Commodity IntroductionThis is a type of FR-4 PCB for the application of GPRS Modem. It's a 6 layer board at 0.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated
per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed
separately.
Parameters & Data Sheet| BOARD TYPE | |
| Number of Layers | Multilayer, 6 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 18um(0.5oz)+plate TOP CS |
| 4mil prepreg |
| copper ------- 18um(0.5oz) GND Plane |
| 5mil FR-4 |
| copper ------- 18um(0.5oz) PWR Plane |
| 4mil prepreg |
| copper ------- 18um(0.5oz) PWR Plane |
| 4mil FR-4 |
| copper ------- 18um(0.5oz) SIG |
| 4mil prepreg |
| copper ------- 18um(0.5oz) BOT PS |
| TECHNOLOGY | |
| Minimum Trace and Space: | 4mil/4mil |
| Minimum / Maximum Holes: | 0.4/2.50mm |
| Number of Different Holes: | 30 |
| Number of Drill Holes: | 1512 |
| Number of Milled Slots: | 8 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 0.5oz |
| Final height of PCB: | 0.6mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm Nickel (15% area) |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | No silkscreen requried. |
| Colour of Component Legend | No silkscreen requried. |
| Manufacturer Name or Logo: | No silkscreen requried. |
| VIA | Plated through hole(PTH),
Via in Pad and via capping on
CS and PS, vias should not be visible. |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | GPRS Modem, DC-AC Converter
Power Module
Industrial Computer
Modem Adsl Wifi
AC Converter |

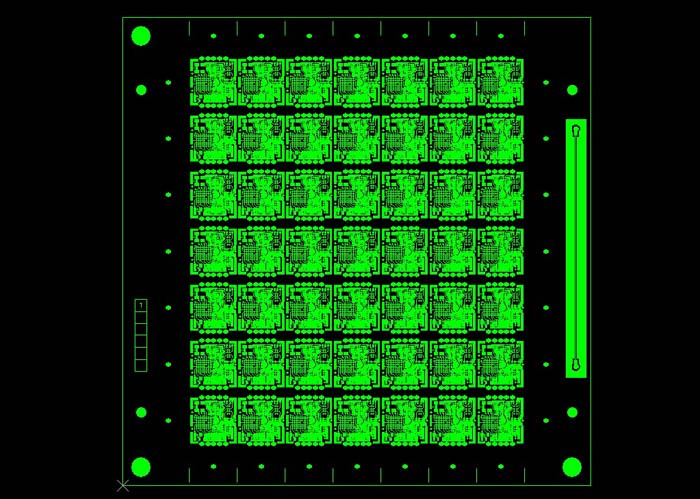

| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
How do you control the quality?
We believe engineering design prevents problems from occurring in preproduction. Our PCB and
Manufacturing process are certified by authorized organizations.
100% tests are inclusive of electrical test and AOI inspection, high voltage test, impedance control
test, micro-section, solder-ability test, thermal stress test, reliability test, insulation resistance test
and ionic contamination test etc.
Double sided PCB
Generally, there're 5 types of 2 layer PCB's available from us.
(1) FR-4 material (The most common used today)
Normal TG, High TG 170, High CTI 600V
Material (CCL) Brand: ITEQ, SHENGYI, KB
(2) High frequency material
RO4350B, RO4003C
PTFE (F4B series from China Brand)
(3) Insulated Metal Substrate (IMS) PCB, typical stack-up as follows
L1---Copper conductor
PP---dielectric material
L2---copper conductor
PP---dielectric material
AL---aluminum base
(4) Metal core PCB (MCPCB), typical stack-up as follows
L1---copper conductor
PP---dielectric material
AL---aluminum core
PP---dielectric material
L2---copper conductor
(5)Polyimide material (Flexible PCB)
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
