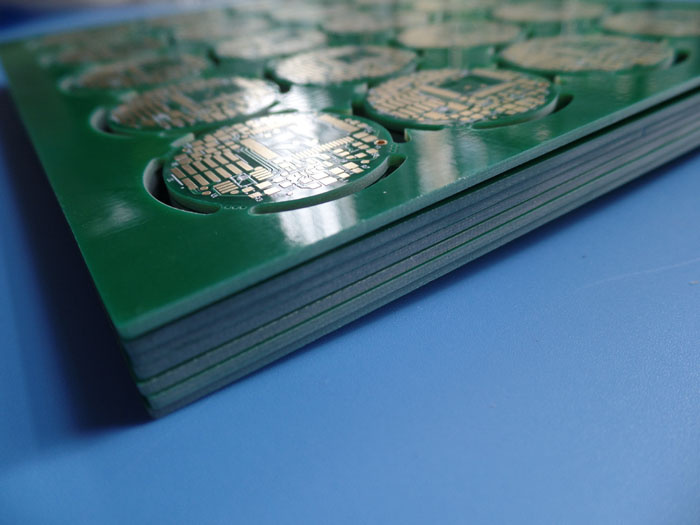

Blind Via Immersion Gold PCB 4 Layer Circuit Board
| Price: |
US $ 0.89/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-115-V1.15 |
| Final Foil External: |
1 Oz |
| Final Foil Internal: |
1 Oz |
| Final Height Of PCB: |
1.6mm |
| Surface Finish: |
Immersion Gold |
| Solder Mask Color: |
Gloss Green |
| Colour Of Component Legend: |
White |
| Via: |
Blind Via L1-L2 |
| Minimum Trace and Space: |
3.9 Mil/6.1 Mil |
| Minimum / Maximum Holes: |
0.3/0.72mm |
| Test: |
100% Electrical Test |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description
Rigid PCB Prototoype Multilayer PCB Blind Via PCB 4 Layer printed circuit board FR-4
dielectric constant At 5.4 Applied In Bluetooth Receiver
Commodity IntroductionThis is a type of FR-4 PCB for the application of Bluetooth Receiver. It's a 4 layer board at 1.6mm
thick.The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per
IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet| PCB SIZE | 150 x 160mm=20PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer, 4 layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | NO |
| LAYER STACKUP | copper ------- 17um(0.5oz)+plate TOP layer |
| Prepreg 1x2133 + 1x1080 + 1x2116 0.29mm |
| copper ------- 17um(0.5oz) MidLayer 1 |
| FR-4 0.89mm |
| copper ------- 17um(0.5oz) MidLayer 2 |
| Prepreg 1x2133 + 1x1080 + 1x2116 0.29mm |
| copper ------- 17um(0.5oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 3.9mil/6.1mil |
| Minimum / Maximum Holes: | 0.3/0.72mm |
| Number of Different Holes: | 10 |
| Number of Drill Holes: | 851 |
| Number of Milled Slots: | 36 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | no |
| BOARD MATERIAL | |
| Glass Epoxy: | ITEQ IT140 TG>135, er<5.4 |
| Final foil external: | 1oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.6mm ±0.16 |
| PLATING AND COATING | |
| Surface Finish | Immersion gold 0.025µm over 3µm Nickel |
| Solder Mask Apply To: | TOP and Bottom, 12micron Minimum |
| Solder Mask Color: | Gloss Green, Taiyo PSR-2000GT600D |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White |
| Manufacturer Name or Logo: | Marked on the board in a conductor and \leged FREE AREA |
| VIA | Plated through hole(PTH), Blind via L1-L2 |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" |
| Board plating: | 0.0029" |
| Drill tolerance: | 0.002" |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Bluetooth receiver, Wireless Hub
Wifi 3G
Wifi Booster Antenna
USB Wlan Adapter
AC To DC Adapter |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
BichengPCB serves global customers from Shenzhen, China
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
Variety of PCB technology to meet the market demands
HDI board
Heavy copper board
Hybrid material board
Blind via board
High frequency board
Metal core board
Immersion gold board
Multilayer board
Backplane board
Gold finger board
Comprehensive sales service presale, in sale and after sale.
Quick CADCAM checking and free PCB quotation
Free-of-charge PCB panelization
Prototype PCB capability
Volume Production capability
Quick turn-around samples
Free-of-charge PCB test
Solid carton packing
Founded in 2003, Bicheng Enterprise Limited is a professional PCB export enterprise. We have established a good relationship of cooperation with well-known enterprises in the same industry.
The factories have been ISO 9001-2008, ISO 14001-2004 and ISO/TS16949-2009 quality management system certified. Over the past 14 years, we have provided professional circuit board manufacturing solutions for more than 5000 companies worldwide.
Different plant scale to suit for your requirements
16000 square meter factory building
30000 square meter month capability
8000 types of PCB per month
ISO9001, ISO14001, TS16949, UL Certified
We have our own advantages to help you saving cost and time spent on PCB, booster your new products go to market quickly.
A) Various kinds of PCB products
Double sided PCB
Multilayer PCB up to 32 layers
FR-4 PCB (Tg130, Tg170)
High frequency PCB (RO4350B, RO4003C)
Aluminum PCB (1W/MK, 2W/MK, 3W/MK)
Flexible PCB
HDI PCB Board
B) Multiple PCB technology to meet the market demands
Blind via PCB, Via in pad PCB, Fine pitch BGA PCB
Impedance controlled PCB
Heavy copper PCB
Hybrid material PCB
C) Many discount policies for new customers
SMT stencil foil, free of charge
Prototype shipping cost, free of charge
Prototype test, free of charge
PCB panelization, free of charge
D) High quality PCB services
Engineering design prevents problems from occurring in pre-production.
Meet your PCB needs from prototype to mass volume production.
Eligible products rate of first production: >95%
Delivery on time: >98%, door to door shipment service
Customer complaint rate: <1%
Choose BichengPCB means you choose hassle free.
