Blind Via PCB Board 4 Layer Single Trace Impdeance Control
| Price: |
US $ 0.48/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC1230R3.1 |
| Surface Finish: |
Immersion Gold |
| Outer Copper Foil: |
1.5 Oz |
| Board Thick: |
1.0mm |
| Solder Mask: |
Green |
| Inner Copper Thick: |
1 Oz |
| Legend Color: |
White |
| Minimum Trace and Space: |
8mil/5.2mil |
| Minimum / Maximum Holes: |
0.6mm/3.5mm |
| Impedance Control: |
Single Trace,54 Ohm |
| Via: |
Blind Via |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

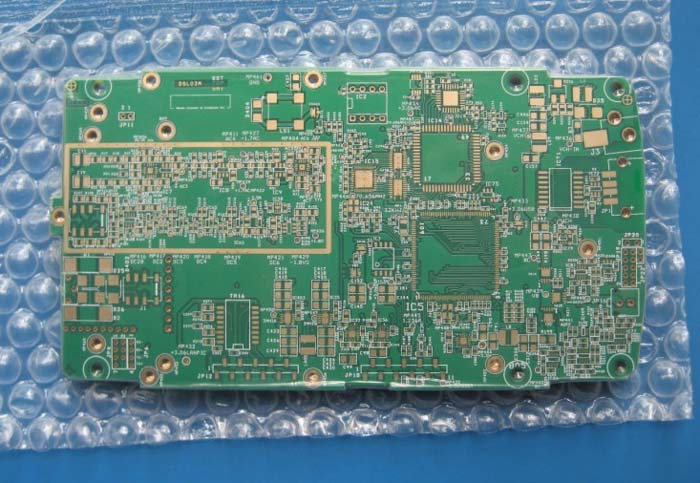

PCB Prototype Circuit Boards With Blind Via Using Tg170 PCB Material Immersion Gold
PCB Applied In Converter
Commodity Introduction
This is a type of FR-4 PCB for the application of Converter . It's a 4 layer board at 1.0mm thick.
The base laminate is from ITEQ, Solder mask and silkscreen from Taiyo. It's fabricated per IPC
6012 Class 2 using supplied Gerber data. Each 10 boards or panels are packed separately.
Parameters & Data Sheet | PCB SIZE | 157 x 85mm=1PCS |
| BOARD TYPE | |
| Number of Layers | Multilayer PCB, 4 Layer PCB |
| Surface Mount Components | YES |
| Through Hole Components | YES |
| LAYER STACKUP | copper ------- 35um(1oz)+plate TOP layer |
| 7628H x 1 0.195mm |
| copper ------- 35um(1oz) |
| Core FR-4 1.2mm |
| copper ------- 35um(1oz) |
| 7628H x 1 0.195mm |
| copper ------- 35um(1oz)+plate BOT Layer |
| TECHNOLOGY | |
| Minimum Trace and Space: | 8mil/5.2mil |
| Minimum / Maximum Holes: | 0.6mm/3.5mm |
| Number of Different Holes: | 10 |
| Number of Drill Holes: | 3150 |
| Number of Milled Slots: | 0 |
| Number of Internal Cutouts: | 0 |
| Impedance Control | Single trace impdeance control. L1, 9mil,
54 ohm+/-10%, L1 , 11mil, 54 ohm+/-10% |
| BOARD MATERIAL | |
| Glass Epoxy: | FR-4, ITEQ IT-140 TG>135, er<5.4 |
| Final foil external: | 1.5oz |
| Final foil internal: | 1oz |
| Final height of PCB: | 1.0mm ±0.1 |
| PLATING AND COATING | |
| Surface Finish | Immersion Gold (11%) 2µ" over 100µ" nickel |
| Solder Mask Apply To: | Top |
| Solder Mask Color: | Green, LP-4G G-05, Nanya supplied |
| Solder Mask Type: | LPSM |
| CONTOUR/CUTTING | Routing |
| MARKING | |
| Side of Component Legend | TOP |
| Colour of Component Legend | White, S-380W, Taiyo Supplied. |
| Manufacturer Name or Logo: | Marked on the board in a conductor and
leged FREE AREA |
| VIA | Plated Through Hole(PTH), via tented,
Blind via from top layer to inner layer 2 |
| FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
| DIMENSION TOLERANCE | |
| Outline dimension: | 0.0059" (0.15mm) |
| Board plating: | 0.0030" (0.076mm) |
| Drill tolerance: | 0.002" (0.05mm) |
| TEST | 100% Electrical Test prior shipment |
| APPLICATION: | Converter, Bluetooth USB
Nas Storage
Bluetooth Audio Adapter
Blue Tooth
Multiplexer |
| TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
| SERVICE AREA | Worldwide, Globally. |
4 layer PCB
4-layer PCB consists of 4 copper layers together with 2 prepreg and 1 epoxy core. This structure
is widely used in the application of IP codec, automobile electronics, computer and peripherals,
servers and networking etc.
Bicheng provide 3 types base material of 4-layer PCB's.
(1) FR-4 material (The most common used today)
Normal Tg >135 and High Tg>170
Material Brand: ITEQ, SHENGYI
(2) High frequency material
RO4350B, RO4003C
Prepreg RO4450B
(3) Hybrid material
RO4350B+FR4+RO4350B
RO4350B+FR4 support
RO4003C+FR4+RO4003C
