Blue Matt Multilayer PCB Circuit with Immersion Gold Board
| Price: |
US $ 0.67/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union,Paypal |
| Prod Model: |
BIC-256-V2.56 |
| Outer Copper Foil: |
1oz |
| Board Thickness: |
1.54-1.58mm |
| Surface Treament: |
Immersion Gold |
| Solder Mask: |
Blue Matt,Ksm-6189blm1 |
| Legend: |
White,Kuang Shun |
| Min Line Width (Mil): |
47.2 |
| Min Line Spacing (Mil): |
9.3 |
| Electrical Test: |
100% PCB Passed |
| Visual Inspection: |
Ipc-a-600h&Ipc-6012c |
| Solderability Test: |
245ºC 5s 1 Cycle |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-4 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Product Description

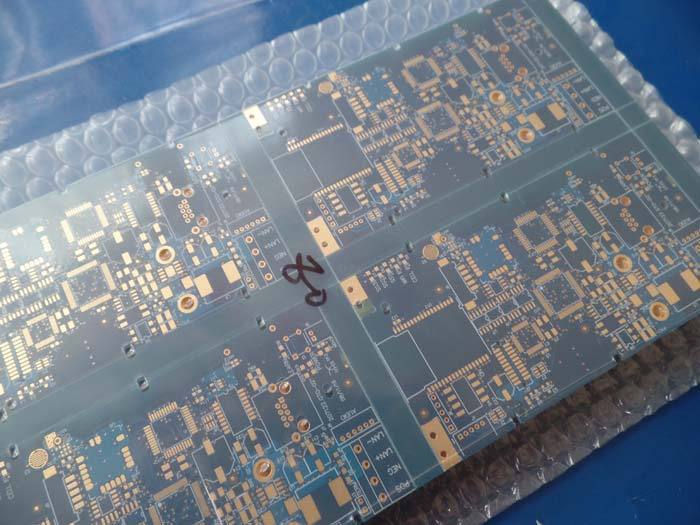

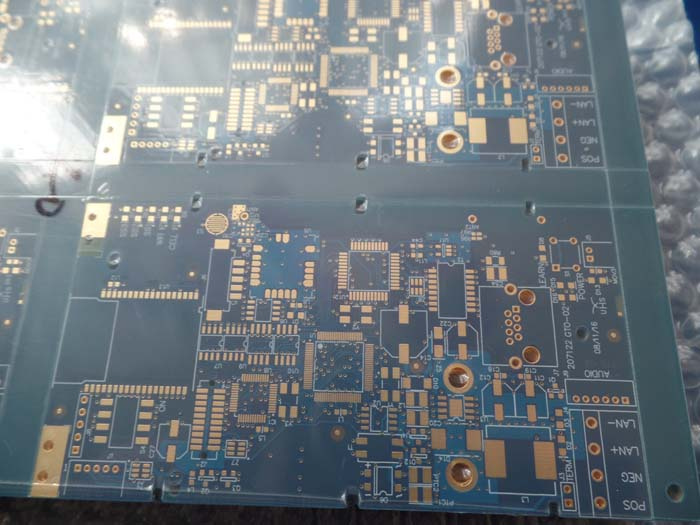

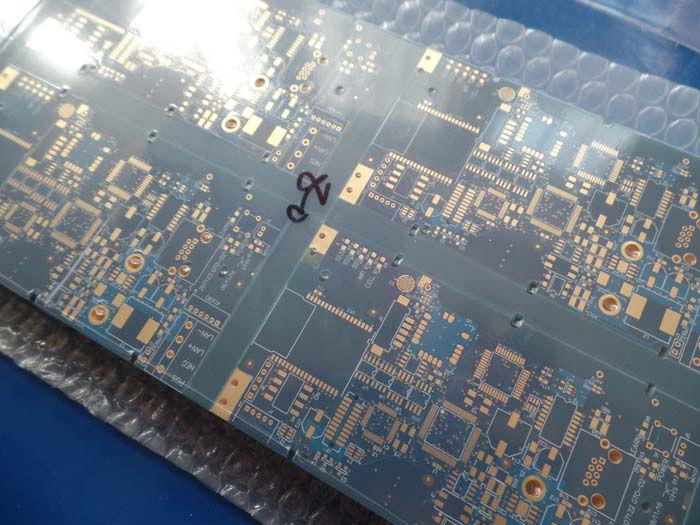

Immersion Gold FR-4 Multilayer PCB 1.54-1.58mm with Matt Blue Solder Mask for Shengyi
Er4.2 in Electric Motor
Commodity Introduction
This is a type of FR-4 PCB for the application of Electric Motor. It's a 4 layer board at 1.6mm
thick.The base laminate is from ShengYi, Solder mask and silkscreen from KUANG SHUN.
It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.
Parameters & Data Sheet| Item | Requirement | Result |
| Laminate | Type | FR-4 | FR-4 |
| Supplier | Shengyi | Shengyi |
| Board thickness | 1.6+/-10%mm | 1.54-1.58mm |
| Outer copper foil | >=35 um | 43.37 um |
| Inner copper foil | 1oz | 1oz |
| Warp-twist | <= 0.75% | 0.26% |
| Legend | Type | KUANG SHUN | KUANG SHUN |
| Color | White | White |
| Location | CS & SS | CS & SS |
| Marking | Co.logo | As requirement | OK |
| UL.logo | As requirement | OK |
| Date code | As requirement | OK |
| Marking form | As requirement | OK |
| Location | CS | CS |
| Min line width (mil) | 47 | 47.2 |
| Min line spacing (mil) | 9.5 | 9.3 |
| Min ring width (mil) | NA | NA |
| Solder Mask | Type | KSM-6189BLM1 | KSM-6189BLM1 |
| Color | Blue matt | Blue matt |
| Thickness | >=10 um | 14 um |
| Pencil Test | 6H OR ABOVE | OK |
| SOLVENT TEST | NO ATTACK | OK |
| TAPE TEST | NO PEEL OFF | OK |
| Surface Treament | Immersion Gold | OK |
| Special Treament | Silk screen | / | / |
| Location | / | / |
| Forming | V-cut | OK |
| Normal Testing | Electrical test | 100% PCB passed | OK |
| Visual inspection | IPC-A-600H&IPC-6012C | OK |
| Solderability Test | 245ºC 5S 1 Cycle | OK |
Finished dimension (unit: mm): including v-cut| No | Required Dimension (tolerance) | Actual Dimension |
| 1 | 135.00 | 135.05 | 134.96 | 134.91 | 134.91 |
| 2 | 28.01 | 287.99 | 287.98 | 287.94 | 287.95 |
Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)| No | Required | PTH | Actual Dimension |
| 1 | 1.300 | Y | 1.300 | 1.275 | 1.325 | 1.300 |
| 2 | 1.800 | Y | 1.800 | 1.775 | 1.825 | 1.800 |
| 3 | 4.000 | Y | 4.000 | 3.975 | 4.025 | 4.000 |
| 4 | 4.200 | Y | 4.200 | 4.175 | 4.225 | 4.200 |
| 5 | 3.000 | N | 3.000 | 2.975 | 3.025 | 3.000 |
Learn PCB and Buy PCB
4 layer PCB
4-layer PCB consists of 4 copper layers together with 2 prepreg and 1 epoxy core. This structure
is widely used in the application of IP codec, automobile electronics, computer and peripherals,
servers and networking etc.
Bicheng provide 3 types base material of 4-layer PCB's.
(1) FR-4 material (The most common used today)
Normal Tg >135 and High Tg>170
Material Brand: ITEQ, SHENGYI
(2) High frequency material
RO4350B, RO4003C
Prepreg RO4450B
(3) Hybrid material
RO4350B+FR4+RO4350B
RO4350B+FR4 support
RO4003C+FR4+RO4003C
