Blue Soldermask PCB Heavy Copper 3 Oz 2 Layer Board

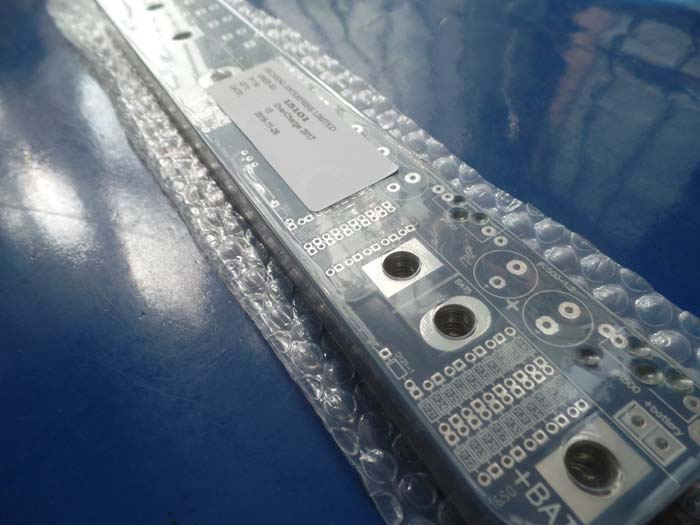

Name: Blue Soldermask PCB Heavy Copper 3 Oz 2 Layer Board
Brand: all-electronics-online.com
SKU: 823188855
Availability: InStock
Rating: 5 (47 reviews)

Price:	US $ 0.64/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	BIC-244-V2.44
Outer Copper Foil:	3 Oz
Board Thickness:	1.6mm
Surface Treament:	HASL Lead Free
Solder Mask:	Blue
Legend Color:	White
Min Line Width (Mil):	6.2 Mil
Min Line Spacing (Mil):	4.8 Mil
Warp-Twist:	0.1%
Electrical Test:	100% PCB Passed
Visual Inspection:	Ipc-a-600h&Ipc-6012c
Type:	Rigid Circuit Board
Dielectric:	FR-4
Material:	Fiberglass Epoxy
Flame Retardant Properties:	V0

Product Description

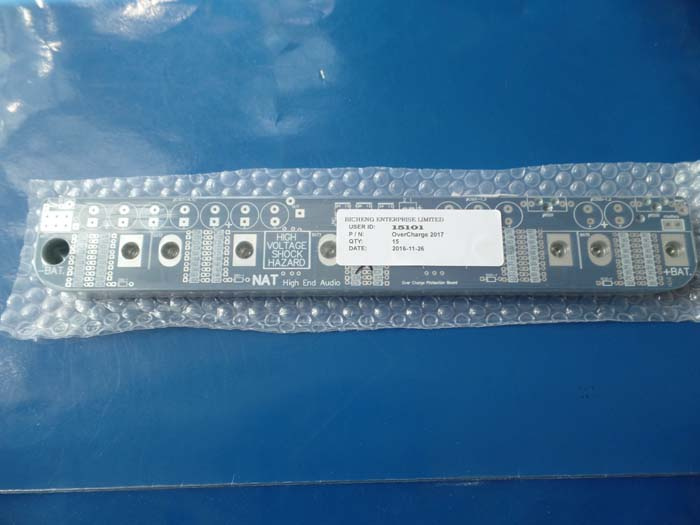

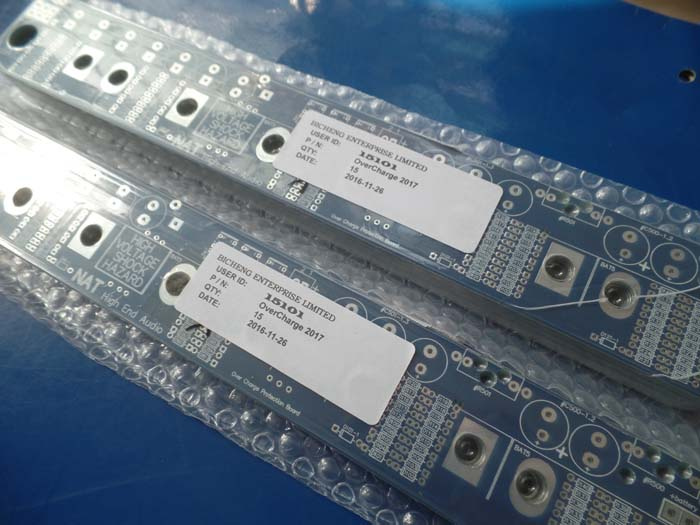

3 oz Heavy Copper PCB FR4 Blue Mask 1.6mm Thick with Lead free HASL in Consumer
Electronics

Commodity Introduction
This is a type of FR-4 PCB for the application of Consumer Electronics. It's a double sided layer
board at 1.6mm thick. The base laminate is from ITEQ, Solder mask and silkscreen from KUANG
SHUN. It's fabricated per IPC 6012 Class 2 using supplied Gerber data. Each 10 boards or panels
are packed separately.

Parameters & Data Sheet

Item		Requirement	Result
Laminate	Type	FR-4	FR-4
	Supplier	ITEQ	ITEQ
	Board thickness	1.6+/-10%mm	1.55-1.60mm
	Outer copper foil	>=105 um	111.82
	Inner copper foil	/	/
	Warp-twist	<= 0.75%	0.10%
Legend	Type	KUANG SHUN	KUANG SHUN
	Color	White	White
	Location	CS	CS
Marking	Co.logo	As requirement	OK
	UL.logo	As requirement	OK
	Date code	As requirement	OK
	Marking form	As requirement	OK
	Location	CS	CS
Min line width (mil)		6	6.2
Min line spacing (mil)		5	4.8
Min ring width (mil)		NA	NA
Solder Mask	Type	R-500 BL	R-500 BL
	Color	Blue	Blue
	Thickness	>=10 um	13 um
	Pencil Test	6H OR ABOVE	OK
	SOLVENT TEST	NO ATTACK	OK
	TAPE TEST	NO PEEL OFF	OK
Surface Treament	HASL Lead free		OK
Special Treament	Silk screen	/	/
	Location	/	/
	Forming	V-cut	OK
Normal Testing	Electrical test	100% PCB passed	OK
	Visual inspection	IPC-A-600H&IPC-6012C	OK
	Solderability Test	245ºC 5S 1 Cycle	OK

Finished dimension (unit: mm): including v-cut

No	Required Dimension (tolerance)	Actual Dimension
1	156.36	156.25	156.26	156.45	156.48
2	200.86	200.80	200.95	200.76	200.48

Hole size and slot dimension(unit: mm, PTH tolerance +/-0.076, NPTH +/-0.05mm)

No	Required	PTH	Actual Dimension
1	0.660	Y	0.650	0.625	0.650	0.065
2	0.889	Y	0.875	0.850	0.875	0.875
3	1.092	Y	1.100	1.075	1.100	1.100
4	1.193	Y	1.200	1.175	1.200	1.200
5	1.397	Y	1.400	1.375	1.425	1.400
6	3.187	N	3.175	3.150	3.200	3.175

Learn PCB and Buy PCB

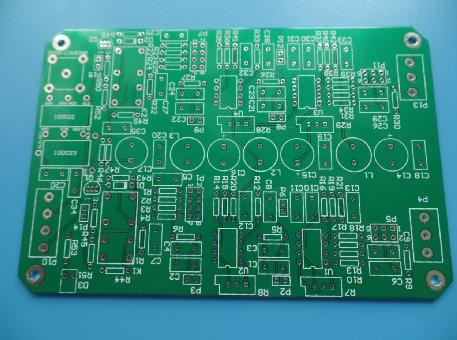

PCB Classification --- Double sided PCB
Both sides of the circuit board are wired, but to use the two sides of the wire, we must have the
proper circuit connection between the two sides. The "bridge" between the circuits is called the
pilot hole (via). The via is filled with or coated with a small hole in the PCB. It can be connected
to the two sides of the wire. Because double sided PCB is twice larger in area than a single sided
PCB, it solves the difficulty that wiring staggered in single side PCB (through hole conduction to
the other side). It is more suitable for use in circuits that are more complex than a single sided
board.
