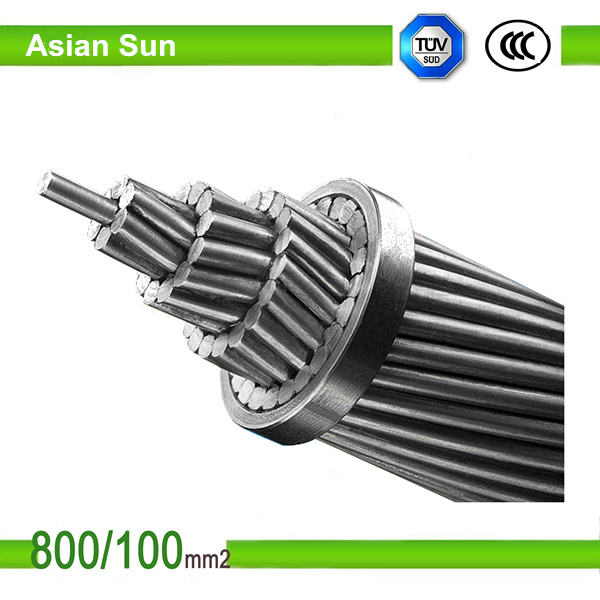

British Standard ACSR Gopher Conductor Overhead Cable

Name: British Standard ACSR Gopher Conductor Overhead Cable
Brand: all-electronics-online.com
SKU: 718175812
Availability: InStock
Rating: 4.7 (44 reviews)

Price:	US $ 0.1-99/Meter
Min Order:	1000/Meter
Pay Type:	L/C,T/T,D/P,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ES-201611-01
Guarantee:	20 Years
Manufacturer:	Since 2006
Factory Area:	200, 081mm2
ACSR Application:	Overhead, State Grid,Power Station,
Shipping Term:	by Express or Sea
BS Code:	Rabbit Gopher Weasel Ferret
Product Name:	ACSR Rabbit Conductor
Material:	Aluminum Conductor Steel Reinforce
Certificate:	IEC CCC ISO
Construction:	7 13 19 25 Core Ect
Type:	Bare
Conductor Type:	Stranded
Application:	Underground
Insulation Material:	Bare
Certification:	ISO9001,RoHS, Ohsas,TUV
Conductor Material:	Aluminum Conductor Steel Reinforceed
Sheath Material:	Bare
Brand:	Asian Sun

Product Description

aluminum conductor hot dipped galvanized steel reinforced wire for acsr

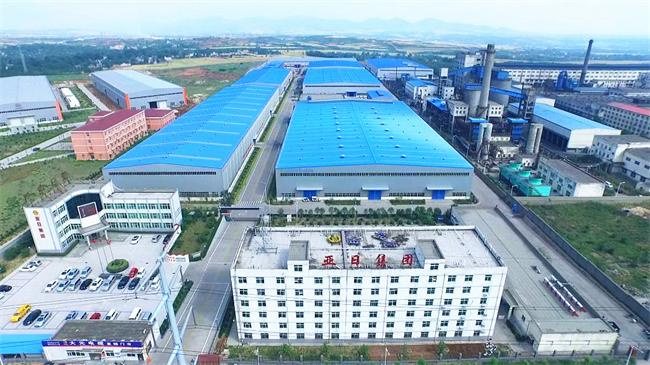

Factory View

Address: Yichuan Electricity Industry zone, Luoyang City, Henan Province, China
Welcome you come to visit !
Application:
ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor, around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentric stranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible.
Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
Specification and performance of ACSR

Nominal cross-sectional area (Al. or St.)mm2	Construction (No./Dia) mm		Outer Dia. mm	Resistance at 20 °C (no more than) Ω/km	Calculated breaking load N	Calculated weight kg/km	Delivery length(no less than) m	Calculated carrying capacity A
Nominal cross-sectional area (Al. or St.)mm2	Al.	St.	Outer Dia. mm	Resistance at 20 °C (no more than) Ω/km	Calculated breaking load N	Calculated weight kg/km	Delivery length(no less than) m	70°C	80°C	90°C
10/2	6/1.50	1/1.50	4.50	2.706	4120	43	3000	66	78	87
16/3	6/1.85	1/1.85	5.55	1.779	6130	65	3000	85	100	113
25/4	6/2.32	1/2.32	6.96	1.131	9290	103	3000	111	131	149
35/6	6/2.72	1/2.72	8.16	0.8230	12630	141	3000	134	158	180
50/8	6/3.20	1/3.20	9.60	0.5946	16870	195	2000	161	191	218
50/30	12/2.32	7/2.32	11.60	0.5692	42620	372	3000	166	195	218
70/10	6/3.80	1/3.80	11.40	0.4217	23390	275	2000	194	232	266
70/40	12/2.72	7/2.72	13.60	0.4141	58300	511	2000	196	230	257
95/15	26/2.15	7/1.67	13.61	0.3058	35000	381	2000	252	306	351
95/20	7/4.16	7/1.85	13.87	0.3019	37200	409	2000	253	277	319
95/55	12/3.20	7/3.20	16.00	0.2992	78110	708	2000	250	270	301
120/7	18/2.90	1/2.90	14.50	0.2422	27570	379	2000	287	350	401
120/20	26/2.38	7/1.85	15.07	0.2496	41000	467	2000	285	348	399
120/25	7/4.72	7/2.10	15.74	0.2345	47880	527	2000	265	315	365
120/70	12/3.60	7/3.60	18.00	0.2364	98370	869	2000	258	301	335
150/8	18/3.20	1/3.20	16.00	0.1989	32860	461	2000	323	395	454

ACSR Technical Characteristics Based on Standard BS 215-2

Code name	Nominal aluminum area	Stranding and wire diameter		Sectional area of aluminum	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	Nominal aluminum area	Al	Steel	Sectional area of aluminum	Total sectional area	Approx. overall diameter	Approx. mass	Calculated D.C. resistance at 20oC	Calculated breaking load
	mm2	No./mm		mm2	mm2	mm	kg/km	Ω/km	kN
RABBIT	50	6/3.35	1/3.35	52.88	61.7	10.05	214	0.5426	18.35
DOG	100	6/4.72	7/1.57	105	118.5	14.15	394	0.2733	32.7
WOLF	150	30/2.59	7/2.59	158.1	194.9	18.13	726	0.1828	69.2
DINGO	150	18/3.35	1/3.35	158.7	167.5	16.75	506	0.1815	35.7
LYNX	175	30/2.79	7/2.79	183.4	226.2	19.53	842	0.1576	79.8
ZEBRA	400	54/3.18	7/3.18	428.9	484.5	28.62	1621	0.0674	131.9

Cable Picture

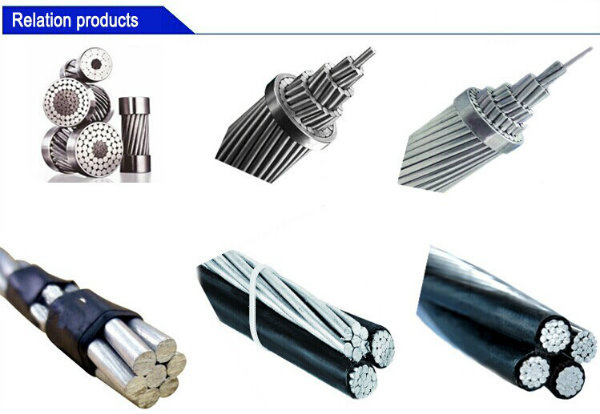

The main products are power cable, electrical equipment cable, PV cable, mining cable, military industrial wire, aluminum wire, steel core aluminum stranded cable, control cable, branch cable, aerial cable and cable accessories series, with more than 300 varieties, nearly 2000 kinds of specifications.

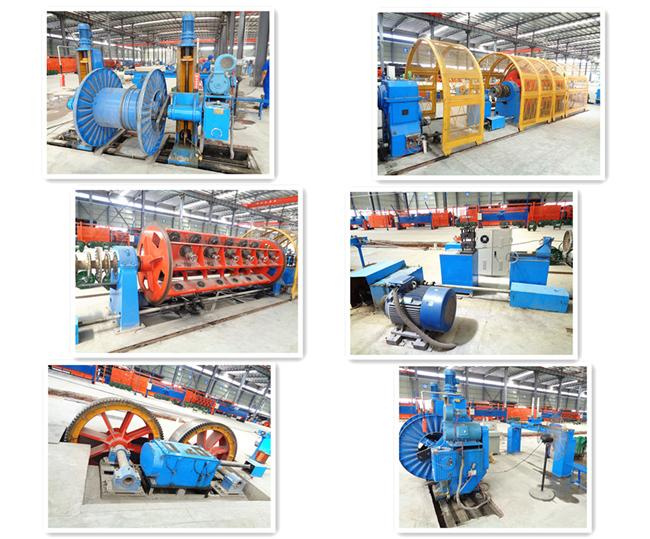

Equipment and Machine:

High-speed aluminum drawing machine, Frame-type stranding machine, Extruding machine and so on.

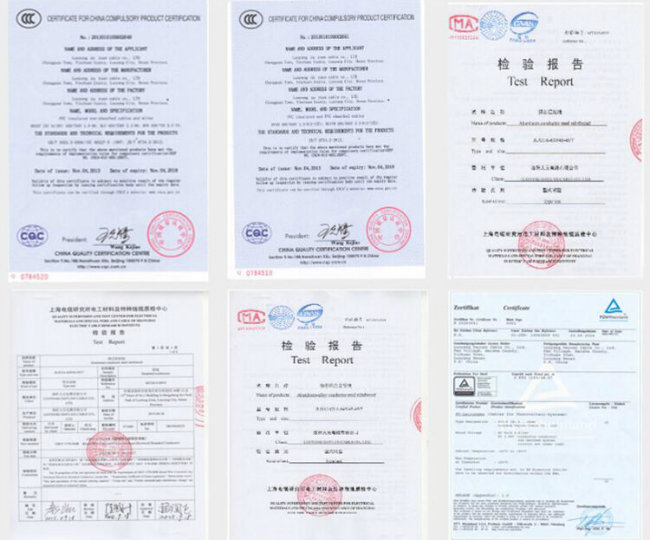

Certifications:
National Products Safety Cerficcation;
ISO9001 Quality System Certification;
CCC Chinese National Compulsory Products Certification;
Occupational Health Safety Management System Certification;
Environmental Management System Certification;
Production License of Industrial Products;
International Standard Products Sysmbol Certificate, etc.

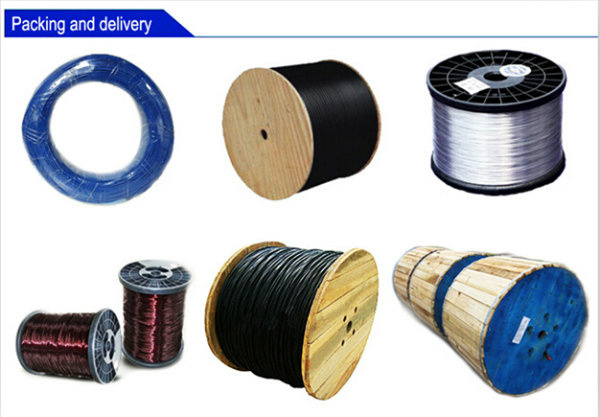

Packing and Delivery:

Support to pack as rolls, or with wooden drum or wooden steel drums.
Customer Visiting:

Profit came from 50 plus countries!!

Contact
Emma Song

Department sale manager
International Trade Department
Luoyang Asian Sun Industrial Group Co., Ltd
=================================
Tel: +86-379-69991592
Mobile: + 86-158-3851-0303
Web: http://www.yr-group.cn
Alibaba Showroom: http://lyyari.en.alibaba.com/
=================================

Started in year 2006, Luoyang Asian Sun Group - formerly known as 'Luoyang YaRi'- was a small factory with only tens of employees back then, but after years of growing and developing, now we are a group company with 5 branch companies, with more than 800 employees including 100 engineers and technicians, and with registered capital 410 million RMB. Our factories are located in county Yichuan, Luoyang, Henan, China, and our headquarters are in the beautiful historic city Luoyang. Totally we have 20, 000 square meters area for production and management, with fixed assets valuing 960 million RMB.

Our main products are power transformer, ABC cable, ACSR, AAC, Aluminum rod, PV bracket, screw pile, power cable, and aluminum bar etc. We also carry on projects of engineering, electrical installation and other general contracting. Our research, production and management are strictly in accordance with the ISO9001 quality system, ISO14001 environment system, OHSAS18001 occupational health and safety management system, the EU TUV, etc. The quality assurance is carried out in every aspect of design, material selecting, production, testing, inspection and management.

At home, we have reached strategic cooperation agreements with State Grid Corporation of China, GD Solar Co., Ltd., Huaneng China, Datang Corporation, China Power Investment Energy Conservation and Environmental Protection Group, and other large state-owned enterprises. At abroad, our products have been exporting to Russia, Middle East Asia, European Union, South America, Africa and other parts of the world.

Our continuing growth and success have been the direct result of the excellent word-of-mouth we consistently earn from both our new and established clients. Thinking of others' benefit and win-win cooperation is the core idea of our company culture. Perfection is not easy to achieve, but we chase it and we can catch excellence. Our excellence is the glamour which brings the good quality and service into every clients.

We guaranteed products at a competitive price and high quality. At present, our products have a very good sale in domestic and overseas market. We wish to cooperate with you to create a bright future and mutual benefit. Much appreciation for your prompt attention in advance, we are eager to look forward to hearing from you soon.
