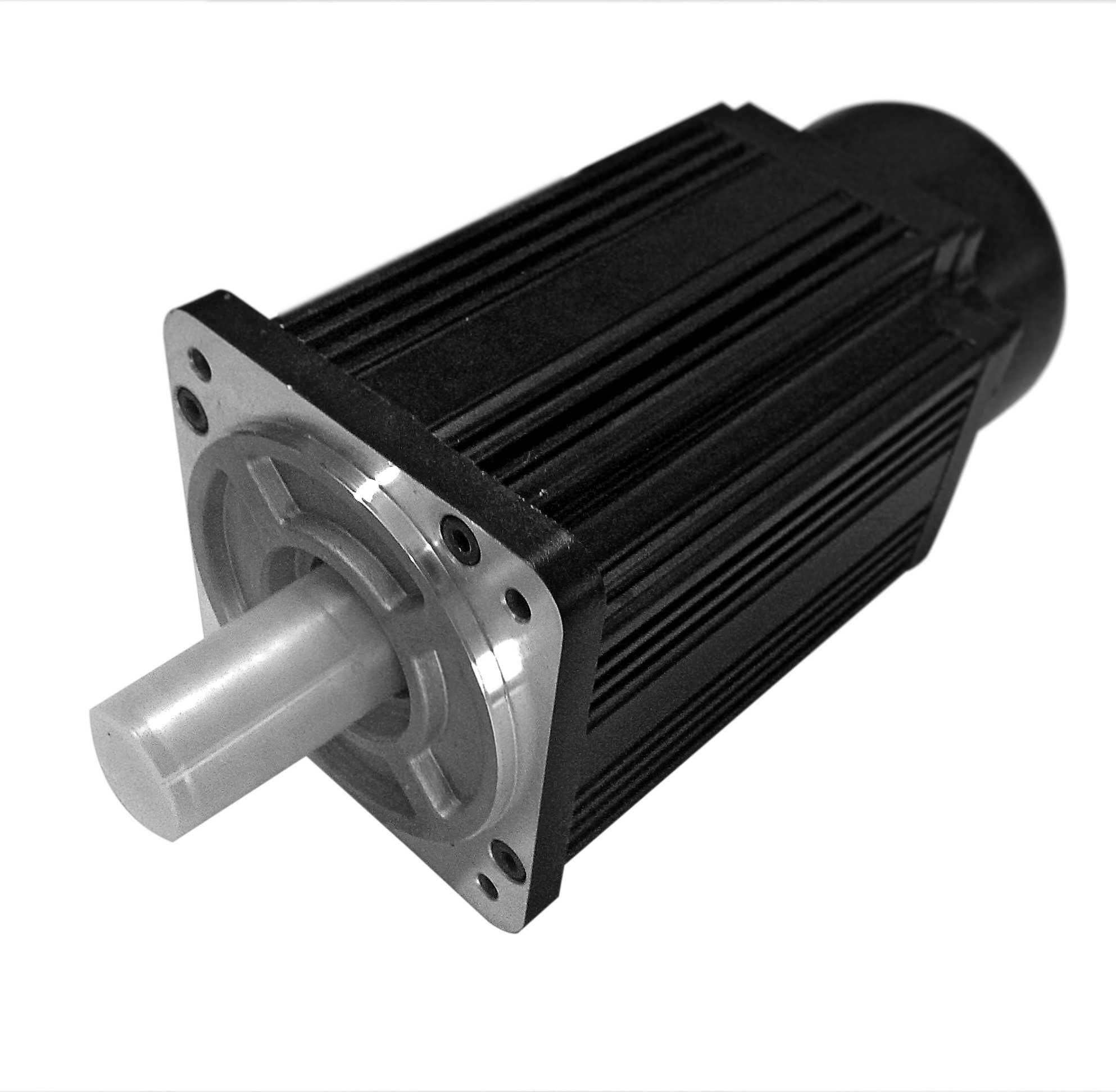

Brushless AC Servo Motor for Automatic Machine

Name: Brushless AC Servo Motor for Automatic Machine
Brand: all-electronics-online.com
SKU: 677480355
Availability: InStock
Rating: 4.5 (86 reviews)

Price:	US $ 50/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	80STM02430
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model No.: 80st-M02430:	Number of Stator: Single-Phase
Speed: Variable Speed:	Number of Poles: 8
Export Markets: Global:	Rated Voltage(V): 220
Peak Torque(N.M): 7.1:	Weight(Kg): 2.86

Product Description

80ST-M02430 electric motor with brake:
1) Rated power: 750w
2) Holding torque: 2.4Nm
3) Frame size: 80mm
4) CE, ISO Certific

80ST-M02430 electric motor with brake have a very compact structure and attractive appearance. The motors have some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.
We can design according to clients' requirements.

Motor model	80ST-M02430
Rated power(kw)	0.75
Rated voltage(V)	220
Rated current(A)	3
rated speed(rpm)	3000
Rated torque(N.m)	2.4
Peak torque(N.m)	7.1
Voltage constant (V/krpm)	48
Moment coefficient(N.m/A)	0.8
rotor inertia(Kg.m)	2.4*10- 4
Resistance line-line (Ω)	2.88
Inductance line-line(mH)	6.4
Electrical time constant(ms)	2.22
Weight (kg)	2.86
Encoder line(PPR)	2500
Pole-pairs	4
Insulation class	Class B (130 degree)
Grade of Protection	IP65
The operating of Evironmental conditions	Temperature	0~ + 40 degree
	Humidity	Below 90%RH No dewing
	Environment	Far away active gas,combustible gas, oil drop,ash.
