Brushless DC Motor for Auto Door

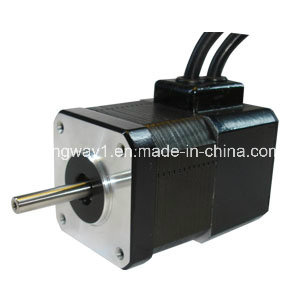

Name: Brushless DC Motor for Auto Door
Brand: all-electronics-online.com
SKU: 774780735
Availability: InStock
Rating: 4.9 (58 reviews)

Price:	US $ 35piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	42BL3A
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless

Product Description

BRUSHLESS DC MOTOR

Description of the product:
1. Applied in textile industry, auto door industry, printing industry, adad box, medical industry
2.Wide speed scope ,easy to control speed and position
3. Long life expectancy, high efficiency
Electrical Specification

Model	Shaft power @rated speed	Rated voltage	Current	Number of poles	Rated speed	Torque @rated torque	Peak torque	Moment Constant	Length	weight
Model	(W)	(VDC)	(A)		(rpm)	(N.m)	(N.m)	(N.m/A)	(mm)	(kg)
42BL3A50-230-2P	32	24	1.8	4	3000	0.1	0.35	0.057	51	0.35
42BL3A70-330-2P	64	36	2.4	4	3000	0.2	0.7	0.085	71	0.55
42BL3A50-230	32	24	1.8	8	3000	0.1	0.35	0.057	49	0.35
42BL3A70-330	64	36	2.4	8	3000	0.2	0.7	0.085	68	0.55

*The specifications can be designed according to the customer's requirement !

Ningbo Yinzhou Longway Technology Co., Ltd. is a professional motor, machinery and electronic products manufacturer in China. Since day one after its establishment, our company has spared no efforts in developing new products and optimizing them. A comprehensive and consistent quality system has been since long established, from design to production, form marketing to after sale service. Our company attaches great importance to employee training. It pays off when the quality of each and every one of our employees keeps improving. Now the motor products include PMDC motors, brushless motors, stepping motors, AC and DC gear motors, synchronous motors, brushless servo motors. Most of products are CE, UL approved. We can also complete OEM/ODM orders in accordance with clients' specific requirements, designs and samples.

The advanced technologies of design and manufacturing were adopted from Germany. We take pride in the CAD/cam mould tooling center and the testing center. We enjoy an excellent reputation in Europe, America, Australia, Middle East, and southeast Asia as well as in China.

"satisfactory products plus satisfactory services" makes our success happen. We sincerely hope to have and also thank for valuable supports and cooperation from all friends in the world.
