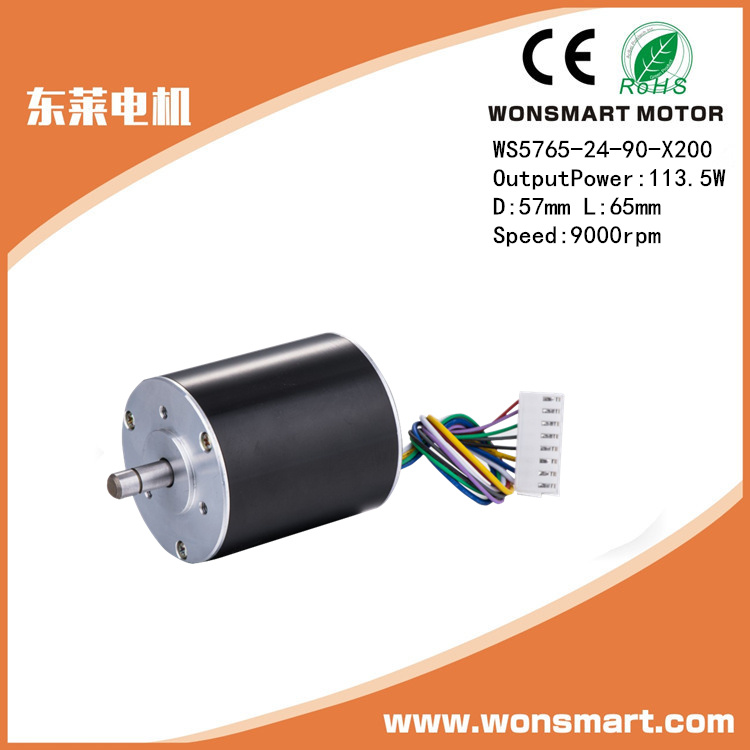

Brushless DC Motor, High Speed BLDC Motor

Name: Brushless DC Motor, High Speed BLDC Motor
Brand: all-electronics-online.com
SKU: 823107055
Availability: InStock
Rating: 4.8 (37 reviews)

Price:	US $ 21.5-50/Piece
Min Order:	1/Piece
Pay Type:	T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WS5765-24-90-X200
Noload Speed:	7000rpm
Rate Speed:	5440rpm
Rate Output Power:	113.5W
Rate Input Power:	141.9W
Noload Current:	0.73A
Rate Current:	5.91A
Rate Torque:	0.15n.M
Application:	Power Tools
Operating Speed:	High Speed
Structure And Working Principle:	Brushless
Excitation Mode:	Fuel Cell
Certification:	Ce RoHS SGS
Brand:	Wonsmart

Product Description

Drawing

Preformance

Notes:

1, Do not use max pressure as working point,
this point is not safe since airflow is Too small.
2, To add a filter onto the inlet can make the blower run longer time;
3, The right impeller run direction is CCW.

Payment&Delivery

Sample Payment preference: paypal / bank account;
Sample delivery time: 3-5 days;
Sample delivery method: Fedex, UPS, DHL;
Sample delivery cost: 20-45 USD for 1 kg;
Mass Production payment: Bank account;
Mass production delivery time: 15-30 days;
Mass production delivery method: Fedex, UPS, DHL, Ocean shipping;

Ningbo Donglai electric Appliance Co., Ltd. is a manufacturer focused on BLDC Motor in Ningbo city, China. Covering an area of 2000 square meters, we were founded by a group of men who are professional in this field. We mainly design, manufacture, and sell small DC brushless motors.

Our CEO is good at "Western" &"Chinese style" management, regards "people" as the most important factor in the development of our enterprise, and believes that details decide the success or lose.

We guarantees you that you only need to input an order, and it will output quality products.
