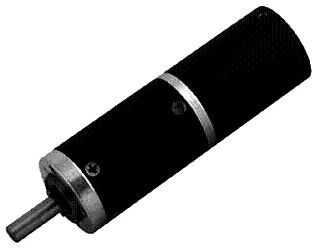

Brushless DC Planetary Gear Motor

Name: Brushless DC Planetary Gear Motor
Brand: all-electronics-online.com
SKU: 661674225
Availability: InStock
Rating: 5 (72 reviews)

Price:	US $ 40/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	28BL38-28PLG20
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Power Tools
Operating Speed:	Low Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	Longway

Product Description

1. Planet gearbox of diameter 28mm can have rated load 2Nm.
2. Can match DC brushless motor, CW/CCW, speed is adjustable.
3. Used in applications, which need less maintainers and low electromagnets disturbance.
4. The specifications can be designed according to the customer's requirement!

motor model								28BL38-2430-28PLG20
Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length (L) mm	31.5	31.5	40.0	40.0	40.0	48.5	48.5	48.5	48.5	57.5	57.5	57.5	57.5	57.5
No-load speed r/min	809	579	214	158	111	59	42	30	22	16	11	8.1	5.8	4.2
rat ed speed r/min	566	405	150	111	78	41	30	21	15	11	8.0	5.7	4.4	3.5
Rated torque N.m	0.02	0.03	0.08	0.11	0.15	0.26	0.36	0.51	0.71	0.87	1.2	1.7	2	2
Max. permissible load in a short time N.m	0.6	0.6	1.2	1.2	1.2	3	3	3	3	6	6	6	6	6

motor model								28BL38-2440-28PLG20
Reduction ratio	3.7	5.2	14	19	27	51	71	100	139	189	264	369	516	720
Number of gear trains	1	1	2	2	2	3	3	3	3	4	4	4	4	4
Length (L) mm	31.5	31.5	40.0	40.0	40.0	48.5	48.5	48.5	48.5	57.5	57.5	57.5	57.5	57.5
No-load speed r/min	1078	772	286	221	148	78	56	40	29	21	15	11	7.8	5.6
Rated speed r/min	566	405	150	111	78	41	30	21	15	11	8.0	5.7	4.4	3.5
Rated torque N.m	0.03	0.04	0.09	0.12	0.17	0.3	0.41	0.58	0.81	1	1.4	1.9	2	2
Max. permissible load in a short time N.m	0.6	0.6	1.2	1.2	1.2	3	3	3	3	6	6	6	6	6
