Brushless Door Motors PMDC Matched with Computer System of Control

Name: Brushless Door Motors PMDC Matched with Computer System of Control
Brand: all-electronics-online.com
SKU: 768040315
Availability: InStock
Rating: 4.4 (34 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB,CIF
Min Order:	50/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

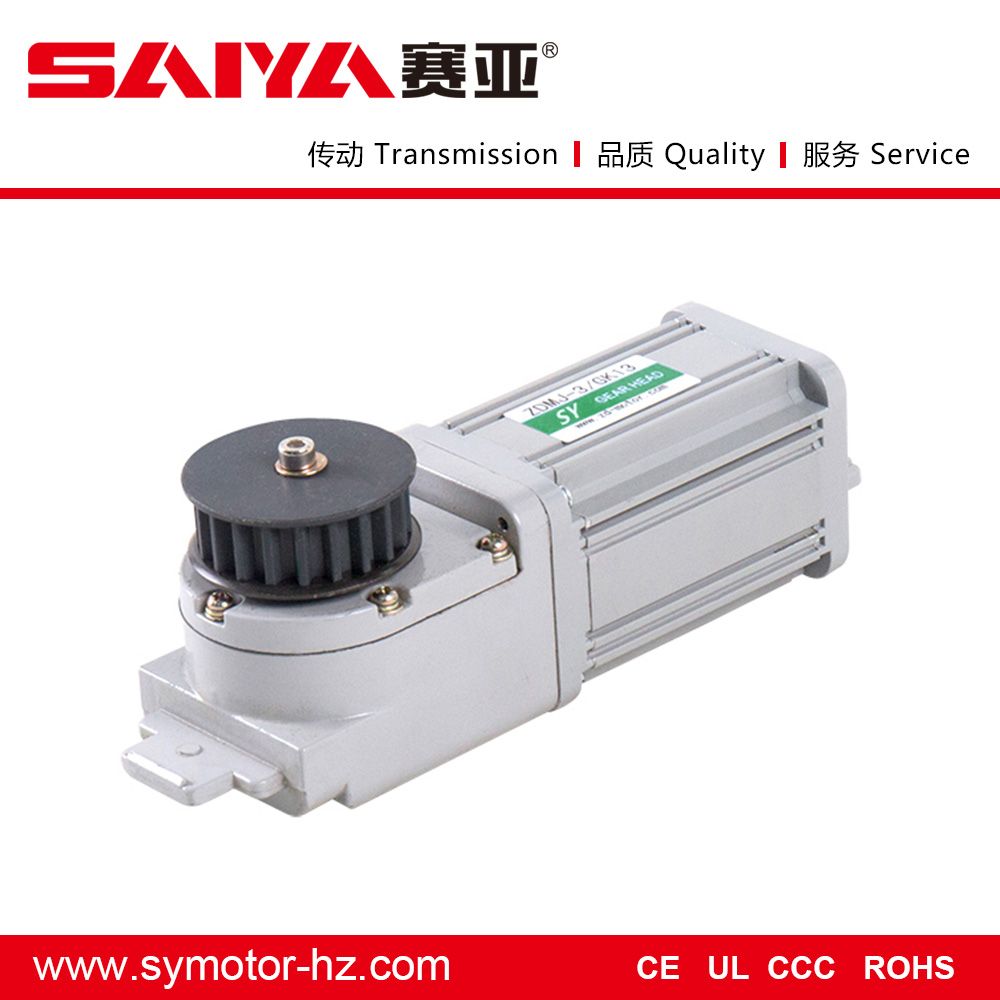

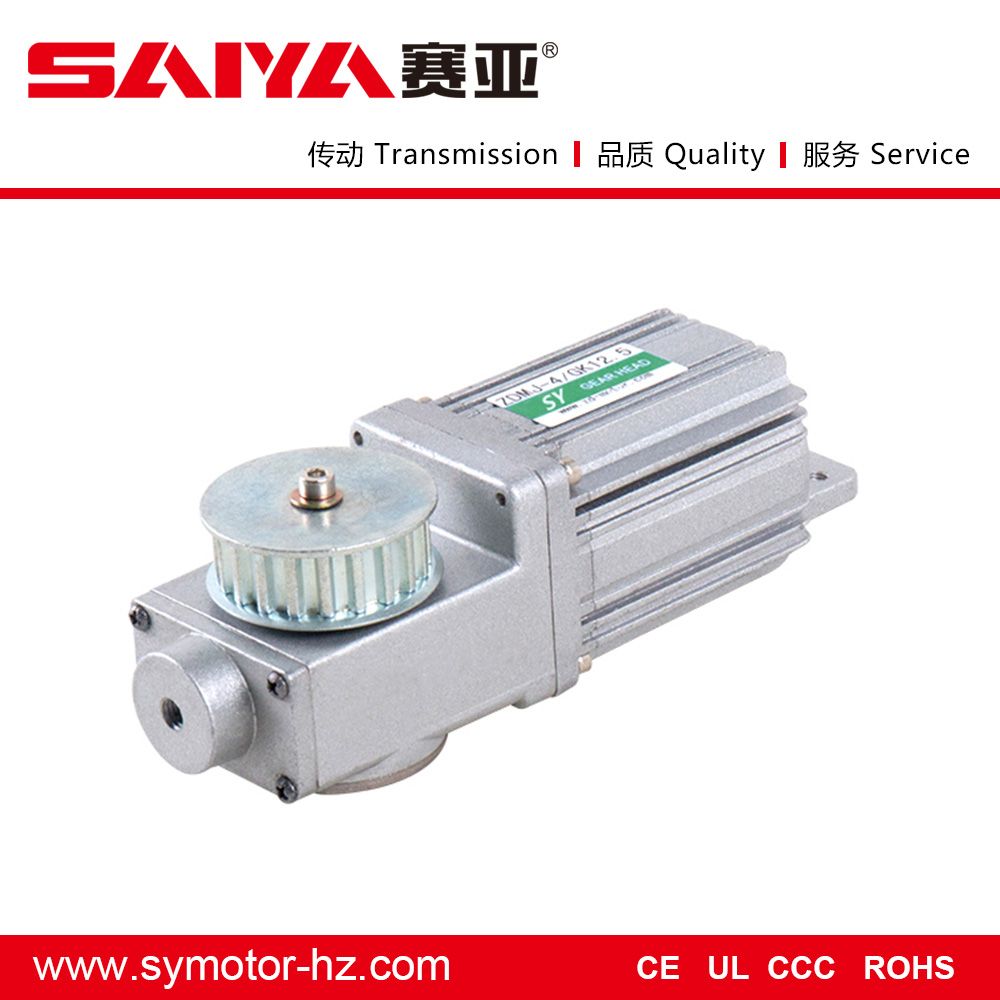

Prod Model:	ZDMJ-3/ZDMJ-4
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Power:	60W
Voltage:	24V
Motor Weight:	1.2kg
Gearbox Weight:	0.8kg
Application:	Power Tools
Operating Speed:	Constant Speed
Structure And Working Principle:	Brush
Excitation Mode:	Other
Function:	Other
Casing Protection:	Other
Number Of Poles:	Other
Type:	Other
Certification:	SGS
Brand:	Other

Product Description

It's only the typical data.
The gear motor can be customized if you have some special requirements such as the gear ratio, torque and shaft dimension.
The motor price is also for reference only and it will be decided by the reduction ratio and body's length.
If you have any questions, pls do not feel hesitate to ask us. You can send us messages, emails or give us a call.

Main data:
1. Basic specification: DC24V, 60W, 2500RPM S1, B CLASS, IP20, IP40
2. Rated torque of bare motor: 318mN. M, 229mNm
3. No-load noise of whole motor: <50dB, L=50cm
4. VE: AC66V, 1S, 5mA
5. Insulation resistance: >20MΩ 500V, >20MΩ 500V
6. Life: 2500H, 4000H
7. Ambient request: RoHS
8. Gear Ratio: 8.5, 12.5, 13

Product characters:
This product adopted PMDC brush motor as the main part of rotor. It can be matched with computer system of control. It can realise self-supervise through matching with computer, and you can set the best working model.
Such asspeed, impetus, resistant power and so on. It has characters of low noise, small volume, light, long lift and wide use. Meanwhile, it can meet the customers'request of update.

Mode	Voltage	Power	No-load Parameters		Load Parameters			Allowable Torque Gear Motor		Motor Weight
	V	W	Speed	Current	Speed	Torque mN. m	Current A	GK8.5	GK13	Kg


			r/min	A	r/min			mN. m	mN. m
ZDMJ-1	24	60	2300	0.4Max	1800	318	4	1840	2650	1.2
ZDMJ-2	90	60	2300	0.3Max	1800	318	1.1	1840	2650	1
ZDMJ-3	24	60	3000	0.6Max	2500	229	4	1320	2000	1.2
ZDMJ-4	24	60	3000	0.6Max	2500	229	4	GX12.5/1950		1

The brief introduction of our company:

Our company supplys different kinds of products. High quality and reasonable price.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

To perfect our service, we provide the products with good quality at the reasonable price.

The Products Of Our Company:

Our Company Is Specialized In Gear Motors. At Present, There Are Three Kinds Of Motors In Our Company:

1) Micro Gear Motor Include Micro AC Gear Motor And Micro DC Gear Motor;

2) Small AC Gear Motor;

3) Planetary Gear Motor.

The Usages Of Our Products:

They Are Widely Used In Machine Tools, Textile Machinery, Medical Appliance, Conveying Machines, Printing Mechanism, Food Machinery, Vending Machines, Packing Machinery, And Gumming Machines. With Excellent Equipment, Advanced Procedure, Scientific Management, And Modern Test Method, We Can Provide All Customers Both At Home And Abroad With Our Top Quality Products, Favorable Prices And Sincere Service.

You Can Tell Us About Your Requirements, And We Will Help You To Find The Right Type And Model Which Is Suitable For Your Products. Or You Can Also Provide Your Products Information And We Can Help You To Choose The Right Motors For You.

We Hope That We Can Establish Long-term Business Relationships Together With You For Mutual Business Success.

Motor Voltage, Power, And Speed Will Be Customized According To Your Request Under The Allowed Circumstanced Of Adoptable Dimension
