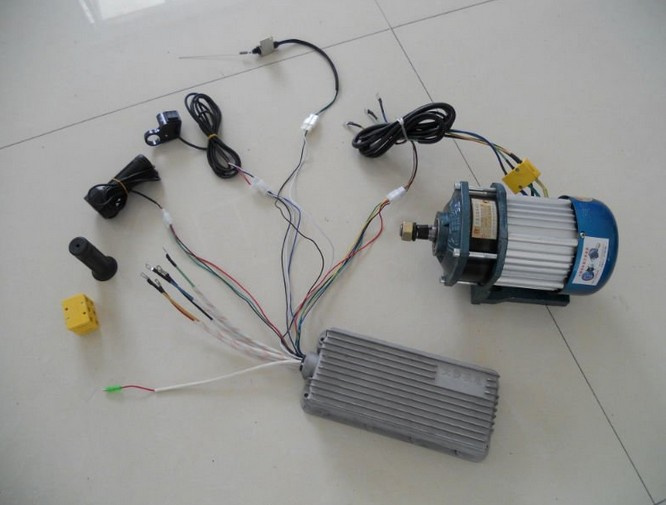

Brushless Motor with Rear Axle for The Ebike

Name: Brushless Motor with Rear Axle for The Ebike
Brand: all-electronics-online.com
SKU: 677560952
Availability: InStock
Rating: 4.3 (117 reviews)

Price:	US $ 10-100/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Western Union

Contact Supplier

Showroom Product Company Profile

Prod Model:	24V 36V 48V 60V 72V motor
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Application:	Car
Operating Speed:	Constant Speed
Excitation Mode:	Excited
Structure And Working Principle:	Brushless
Brand:	Shellmax

Product Description

DC motor 60V
Brushless motor 1200W
PM motor 700rpm
Gear motor 50N, m
Hall motor 1400kg

1. Motor details
Rated voltage: 60V
Rated power: 1200W
Rated current: 30A
Rated speed: 2800-3000rpm
EFF%: 83%
Rated torque: 50N. M
Maximum load: 1400kg
Diameter and length of the motor: 140mm*310mm

2. Controller details
Rated voltage: 60V
Rated power: 1200W
Maximum limit: 85A
Under voltage: 50.5± 0.5V
Brake handle voltage: 1.2-4.3V
Brake blackout: High level.

1. motor details
1. motor details
Rated					Maximum load	Eff	Climbing degree
voltage	current	Power	Speed	torque	Maximum load	Eff	Climbing degree
48V	25A	800W	3000rpm	40N. m	1000KG	83%	20-30
48V	28A	1000W	3000rpm	45N. m	1200KG	83%	20-30
60V	25A	800W	3000rpm	40N. m	1100KG	83%	20-30
60V	28A	1000W	3500rpm	45N. m	1300KG	83%	20-30
60V	30A	1200W	3500rpm	50N. m	1400KG	83%	20-30
60V	32A	1500W	3500rpm	60N. m	1500KG	83%	20-30
72V	28A	1000W	3500rpm	50N. m	1400KG	83%	20-30
72V	30A	1200W	3500rpm	60N. m	1500KG	83%	20-30
72V	32A	1500W	3500rpm	70N. m	1600KG	83%	20-30

2. controller details

Rated		Maximum limit	under voltage	brake handle voltage	brake blackout
voltage	Power
48V	800W	75A	41.5± 0.5V	1.2-4.3V	low level
48V	1000W	80A	41.5± 0.5V	1.2-4.3V
60V	800W	75A	50.5± 0.5V	1.2-4.3V
60V	1000W	80A	50.5± 0.5V	1.2-4.3V
60V	1200W	85A	50.5± 0.5V	1.2-4.3V
60V	1500W	90A	50.5± 0.5V	1.2-4.3V
72V	1000W	75A	63± 0.5V	1.2-4.3V
72V	1200W	80A	63± 0.5V	1.2-4.3V
72V	1500W	85A	63± 0.5V	1.2-4.3V
