Three-Phase Induction Motor (Y)

Name: Three-Phase Induction Motor (Y)
Brand: all-electronics-online.com
SKU: 612085564
Availability: InStock
Rating: 4.5 (68 reviews)

Price:	Negotiable
Trade Terms:	by Sea or by Air
Min Order:	1

Contact Supplier

Showroom Product Company Profile

Prod Model:	Y
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Usage:	Industrial
Speed:	High Speed

Product Description

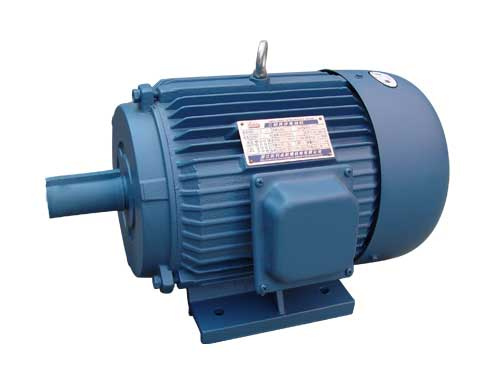

Y series three-phase induction motor
Application scope
Y series motors are totally enclosed and fan-cooling three-phase squirrel cage induction motors, they are newly designed in conformity with the relevant requirements of IEC and DIN42673 standards. Y series motors have outstanding performance, such as high efficiency, energy-saving, high starting torque, low noise, little vibration, reliable operation and easy maintenance, etc.
Y series motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

Specifications & Features
Rated voltage: 380V or on request, Rated frequency: 50Hz or 60Hz
Connection: Star-connection for 3KW or less while delta-connection for 4KW or more.
Duty: Continuous (S1)
Insulation class: B
Protection class: IP44
Cooling method: ICO141
Operating Conditions
Ambient temperature: -15º C≤ θ ≤ 40º C
Altitude: Not exceeding 1000m above sea level.
Available type
Frame H80 to 315, 2/4/6/8 poles
Rated output: 0.55KW - 200KW
B3 /B5 /B14 /B35 /B34 mounting;
Mounting dimensions according to IEC60034 standard.

Category Name	Subcategory Name	Active	TNT Length	TNT Width	TNT Height	TNT Weight
Motor	Three Phase Motor	1
