BS 5467 Swa PVC Basec Multi Core 0.6/1kv Cable

Name: BS 5467 Swa PVC Basec Multi Core 0.6/1kv Cable
Brand: all-electronics-online.com
SKU: 835117635
Availability: InStock
Rating: 4.3 (28 reviews)

Price:	US $ 0.1-30/Meter
Min Order:	100/Meter
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	bs 5467 swa pvc basec multi core 0.6/1kv cable
Product Name:	BS 5467 Swa PVC Basec Multi Core 0.6/1kv Cable
Rated Voltage:	0.6/1 Kv
Conductor:	Copper
Insulation:	XLPE / PVC
Sheath:	PVC / PE
Core Number:	1 2 3 4 5
Color Color:	Red , Yellow , Blue ,Green or as Your Requirement
Origine:	Shandong , China
Packaging:	Wooden Drum
Shipping:	3-10 Working Days
Application:	Power Station
Voltage:	Low and Medium Voltage Cable
Current:	DC & AC
Insulation Material:	XLPE
Certification:	VDE
Model:	XLPE Power Cable
Brand:	Chan Qing Teng

Product Description

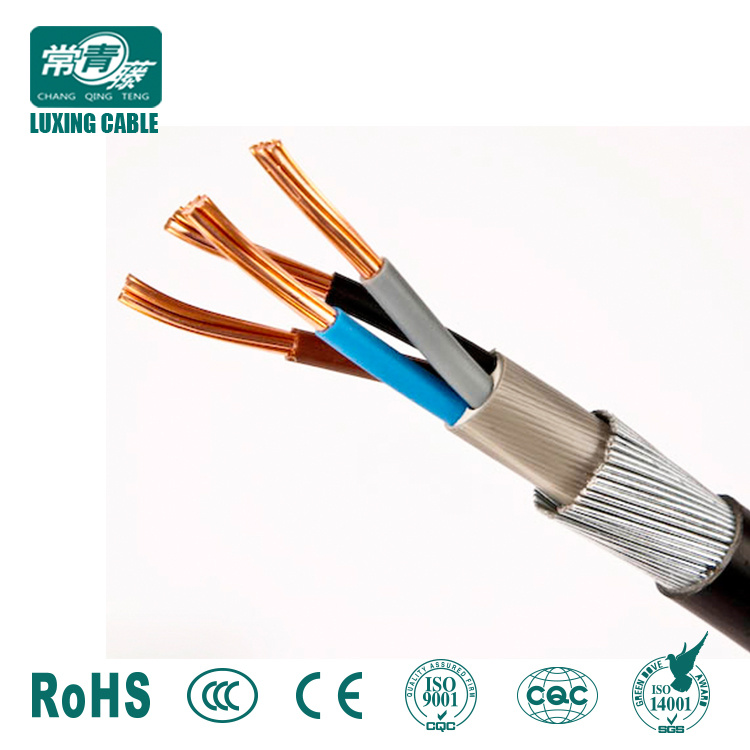

ITEM NAME : BS 5467 swa pvc basec multi core 0.6/1kv cable

Name: BS 5467 swa pvc basec multi core 0.6/1kv cable
Standard: IEC60502, BS, DIN, ASTM, GB12706-2008 standard.
Voltage: Up to 35KV
Conductor: Copper
Insulation: XLPE

Armoured : Steel Wire Armoured

Sheath : PVC / LSZH PVC
Cross Section: Based on client's requirement

Color : As you request
Application: Low Voltage Power Cable is used in fixed laying indoor and outdoor.
Package: Wooden Drum Package or Iron-Wooden Drum

PVC Insulation Electric Cable

TYPE		Description of Cable	Main Applications
CU core	AL core	Description of Cable	Main Applications
VV	VLV	Copper/Aluminium core,PVC insulated,PVC sheathed power cable	Non-armoured PVC cable are suited for laying indoors,In cable trench,On cable racks and in pipes. Unable bear external pressures and tensions.
VY	VLY	Copper/Aluminium core,PVC insulated,PE sheathed power cable
VV22	VLV22	Copper/Aluminium core,PVC insulated,steel tape armored,PVC sheathed power cable	Steel-tape armoured PVC cables are suited for vertical burial.Can bear moderate positive pressures,Unable bear tension forces.
VV23	VLV23	Copper/Aluminium core,PVC insulated,steel tape armored,PE sheathed power cable
VV32	VLV32	Copper/Aluminium core,PVC insulated,thin steel wire armored,PVC sheathed power cable	Thin steel wire armoured PVC cables are used in case of great difference of levels or vertical installation and Can do vertical burial.Can bear moderate positive pressures and tension forces.
VV33	VLV33	Copper/Aluminium core,PVC insulated,thin steel wire armored,PE sheathed power cable
VV42	VLV42	Copper/Aluminium core,PVC insulated,thick steel wire armored,PVC sheathed power cable	Thick steel wire armoured PVC cables are suited for vertical installation and can be laid water or sea-bottom.Can bear greater positive pressures and tension forces.
VV43	VLV43	Copper/Aluminium core,PVC insulated,thick steel wire armored,PE sheathed power cable

XLPE Insulated electric cable

China Type		Description	Application
Cu	Al	Description	Application
YJV	YJLV	XLPE insulation PVC sheath power cable (Cu/XLPE/PVC)	To be laid indoors, in tunnel, cable furrow or pipe, the cable couldn't bear mechanical force outside
YJY	YJLY	XLPE insulation PE sheath power cable (Cu/XLPE/PE)
YJV22	YJLV22	XLPE insulation, steel tape armor, PVC sheath power cable (Cu/XLPE/PVC/STA/PVC)	To be laid underground, the cable could bear certain mechanical force, but it couldn't bear great pulling force.
YJV23	YJLV23	XLPE insulation, steel tape armor, PE sheath power cable (Cu/XLPE/PVC/STA/PE)
YJV62	YJLV62	XLPE insulation, no magnetism steel tape armor, PE sheath power cable
YJV32	YJLV32	XLPE insulation, thin steel-wire armor, PVC sheath power cable (Cu/XLPE/PVC/SWA/PVC)	Be applicable to the well, water inside and fall in the bad soil, the cable cans bear the equal dint outside the machine with pull the dint .
YJV72	YJLV72	XLPE insulation, have no the magnetism thick steel-wire armor, PVC sheath power cable
YJV42	YJLV42	XLPE insulation, thick steel-wire armor, PVC sheath power cable	Be applicable to the well, underwater with the bottom of sea, the cable cans bear the bigger pressure with lead to pull the dint.

ZR: Means Flame retardent

Type		Nominal cross-sectional area
Type		Single-core	2-core	3-core	4-core	5-core
YJV ZR-YJV	YJLV ZR-YJLV	1.5-800	1.5-300	1.5-300	1.5-300	1.5-300
YJV22 ZR-YJV22	YJLV22 ZR-YJLV22	10-800	4-300	4-300	4-300	4-300
YJV32 ZR-YJV32	YJLV32 ZR-YJLV32	10-800	4-300	4-300	4-300	4-300

Luxing Factory : our production base

Video Show

1)Company introduction: https://youtu.be/j-bfOk2gCFY

2)Copper wire stranded: https://youtu.be/QT-b7M9YkLw

3)Copper wire braided: https://youtu.be/3-fP1OOuPA4

4)Cabling machine: https://youtu.be/h6kE4ofeiWA

5)Armoured: https://youtu.be/Clu5e7LW_l8

6)Extruded pvc sheathed,insulation: https://youtu.be/3c93OxsKmBw

Luxing Cable Mainly Produce

300/500V 450/750V electrical wire	AAC conductor
600/1000V PVC insulated cable	AAAC conductor
600/1000V XLPE insulated cable	ACSR conductor
1.8/3KV to 26/35KV power cable	OPGW
Armored underground cable	ABC cable
Control cable and instrumentation cables	Rubber cable

Certificates

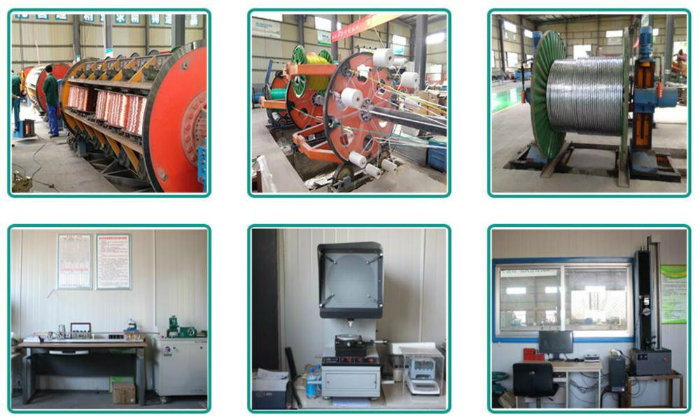

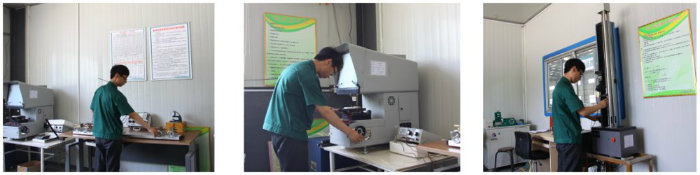

Strict Quality Test

Packaging & Shipping

Why choose us

1.18 years manufacturing experience

2.Professional international trade team

3.Delivery on time

4.Factory low price and high quality based on advanced technology and high work efficiency

Contact us

1) About Luxing Cable Factory:

-Shandong New Luxing Cable Co., Ltd established in the year of 1999.

-The headquarter is located in Jinan City, the capital of Shandong province, China.

-Registered capital of USD16.5 million, Legal representative Wang Xiuzhen.

-Luxing Cable Factory is located in Linyi Economic Development ZoneCovering an area of more than 60 acres.

-Shandong New Luxing Cable Co., Ltd has more than 150 employees, which college degree more than 50 people.

2)Why Choose Luxing Cable Factory?

-Luxing cable, the designated supplier of China's national grid construction.

-We provid high-quality cables for our clients for more than 18 years.

-The professional, safe and reliable of Luxing factory gained great trust and praise from our customers.

-Serve you any time.

3)The Product of Luxing Cable Factory

-300/500V 450/750V electrical wire

-600/1000V PVC insulated cable

-600/1000V XLPE insulated cable

-1.8/3KV to 26/35KV power cable

-Armored underground cable

-Control cable and instrumentation cables

-ABC cable

-AAC conductor

-AAAC conductor

-ACSR conductor

-OPGW

-Rubber cable

4)Product application

-Used for open air installation, for direct burrial underground, in water, in cable ducts, power stations, for industry and distribution boards and so on.

-Power transmission and distribution project bids we can work, cable retail and wholesale, regional agent we can cooperate.

5)Production Market

-Supply power cables & electrical wire to

South America(Brazil...),

East Asia(Korea...),

Africa(Uganda, South Africa, Zimbabwe...),

Southeast Asia(Myanmar, Thailand, Indonesia, Philippines, Malaysia, Cambodia...),

Europe(Czech Republic...) to global market.

-Had fixed partnership with SGCC&STATE GRID CORPORATION OF China (China largest power enterprise) and many other our country State-owned big enterprise.

6)Our service

-We guarantee that we will comply with the requirements of warranty period specified in the contract, that the Goods supplied under the purchase order For Procurement of self-carrying distribution network's cable and wire.

-We will be manufactured under this specification and that the Goods will be new, unused, of the most recent or current models. Once we are selected, we will supply the Goods strictly according to the requirements of the Contract.

-The warranty shall remain valid for twelve (12) months after the Goods, or any portion thereof as the case maybe, have been delivered to and accepted at the final destination indicated in the SCC, or for eighteen (18) months after the date of shipment from the port or place of loading in the country of origin, whichever period concludes earlier.

-During the warranty period purchaser may proclaim directly to the manufacturer in the written form or by the agent if there is any problem in Goods quality. The manufacturer will do the repair or replacement in reasonable time, and will bear all the expenses relating to this.
