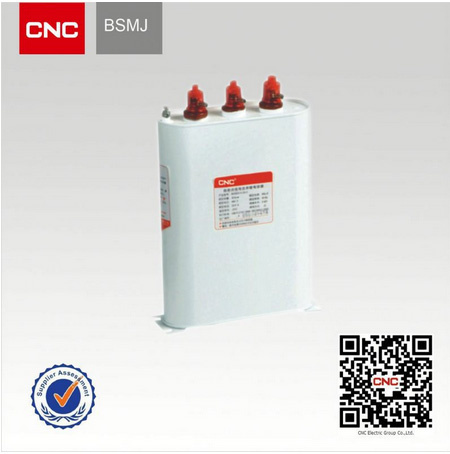

Bsmj Low Voltage Shunt Power Capacitor 4.7UF 400V

Prod Model:	BSMJ
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Voltage:	230 V ~1200V,
Rated Capacity:	0.4~0.69kv 1~60kvar
Rated Frequency:	50Hz or 60Hz
Type:	Supercapacitor
Application:	Power
Capacitance:	1-50uf
Package Type:	Surface Mount

Product Description

Application
Self healing low voltage shunt power capacitor was used in 50Hz and 60Hz power
system it mainly improver power factor, reduce reactive power loss, improve voltage
quality. Encavate transformer quantity and so on. It is best saving power products
which company strong recommend and work.
This product meets the standard: GB/T 12747-2004, IEC60831-1996

Working Conditions
1. Power capacitor should confirm left voltage reduce to rated voltage 10% to input
   again after the power was cut off, normally it will need 200s almost. so it would
   choose the power controller which has input and reput lock time function after
   cut off the power. If choose normally power controller, it must install speediness
   discharge power equipment. it would not limited which use adopting same
   electric factor input and chip switch.
2. Altitude level is not more than 2000m.
3. Temperature type: -25/C low temperature, highest temperature is C type (it would
    not more than 50°C the average of temperature is not more than 40°C within 24
    hours, one year average of temperature is not more than 30°C), power capacitor
    will work within good ventilate condition. It would not permit within sealing and
    installation condition.



 Specifications


Type	Rated voltage(kV)	Rated output(kVAR)	Rated capacity(μF)	Rated current(A)
BSMJ,BCMJ,BZMJ
0.23-1-3	0.23	1	60.2	2.5
0.23-3-3	0.23	3	180	7.5
0.23-5-3	0.23	5	301	12.5
0.23-7.5-3	0.23	7.5	452	18.8
0.23-10-3	0.23	10	602	25.1
0.23-15-3	0.23	15	903	37.6
0.23-16-3	0.23	16	963	40.2
0.23-20-3	0.23	20	1203	50.2
0.4-1-3	0.4	1	20	1.4
0.4-3-3	0.4	3	60	4.3
0.4-5-3	0.4	5	100	7.2
0.4-6-3	0.4	6	119	8.7
0.4-7.5-3	0.4	7.5	149	10.8
0.4-8-3	0.4	8	159	11.6
0.4-10-3	0.4	10	199	14.4
0.4-12-3	0.4	12	239	17.3
0.4-14-3	0.4	14	279	20.2
0.4-15-3	0.4	15	299	21.7
0.4-16-3	0.4	16	319	23.1
0.4-18-3B(A)	0.4	18	358	26.0
0.4-20-3B(A)	0.4	20	398	28.9



Type	H(mm)	Outgoing terminal	Enclosure type
BSMJ,BCMJ,BZMJ
0.23-1-3	1053	M6	A1
0.23-3-3	130	M6	A
0.23-5-3	182	M6	A
0.23-7.5-3	220	M6	A
0.23-10-3	220	M6	B
0.23-15-3	270	M6	B
0.23-16-3	270	M6	B
0.23-20-3	345	M6	B
0.4-1-3	105	M6	A1
0.4-3-3	130	M6	A1
0.4-5-3	130	M6	A
0.4-6-3	130	M6	A
0.4-7.5-3	130	M6	A
0.4-8-3	130	M6	A
0.4-10-3	185	M6	A
0.4-12-3	185	M6	A
0.4-14-3	220	M6	A
0.4-15-3	220	M6	A
0.4-16-3	220	M6	A
0.4-18-3B(A)	220(245)	M6(M6)	B(A)
0.4-20-3B(A)		M6(M6)	B(A)
