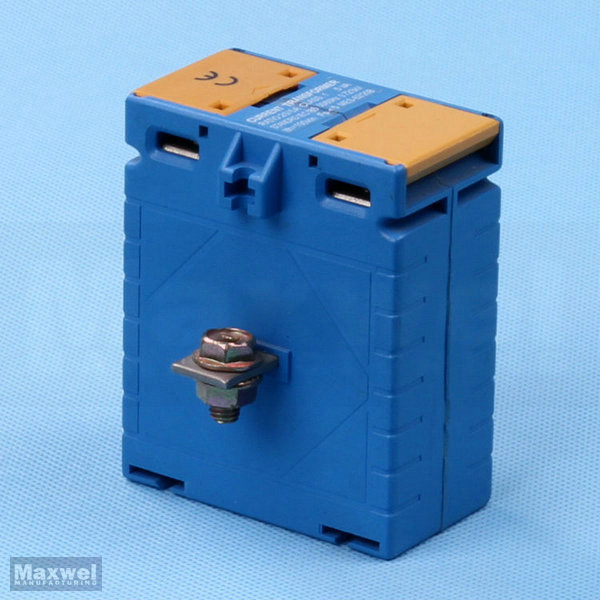

Bus Bar Type Current Transformer (MES-62-20B)

Name: Bus Bar Type Current Transformer (MES-62-20B)
Brand: all-electronics-online.com
SKU: 705352665
Availability: InStock
Rating: 4.8 (85 reviews)

Price:	US $ 2.88-3.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	MES-62-20B
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Colour:	Blue
Class:	0.5/1.0
Secondary Current:	5A, 1A
Primary Current:	5A~150A
Maximum Voltage:	0.72/3kv

Product Description

MES current transformers, Busbar type current transformer

Primary current:	5A-3000A
Secondary current:	5A, 1A
Standary approval:	VDE0414, BS7626, CT IEC 44-1 standard
Maximum voltage:	0.72/3kv
Frequency:	50-60Hz
Rated load:	2.5VA, 5VA, 10VA, 15VA
Class:	0.5, 1.0
Short-time thermal current:	1th=60X1h
Rated security coefficient: FS<5

Technical characteristics:

Type	Rated current (A)	Rated power(VA)
Type	Rated current (A)	Class: 0.5	Class: 1
MES-62/20B	5/5	2.5	5
	10/5	2.5	5
	15/5	2.5	5
	20/5	2.5	5
	25/5	2.5	5
	30/5	2.5	5
	40/5	2.5	5
	50/5	2.5	5
	60/5	2.5	5
	75/5	2.5	5
	100/5	2.5	5
	150/5	2.5	5

Product Details:

Fundamental:

About Warranty:

At least A year!

Delivery Time:

Whin 15 Days After you place an Order!

FAQ
Q1: When to get the price?
A: We usually quote within 24 hours after getting your inquiry.
if you are very urgent to get the price, please contact us with emails or calls so that we will regard your inquiry priority.

Q2: Is sample available and free?
A: Sample is available, but sample should be paid in advance. The cost of sample will be refund after further order.

Q3. How to pay?
A: T/T will be more appreciated. Parpal or Wester Union
30% deposit before producing, 70% balance before loading by T/T.

Q4. What is the delivery time?
A: It depends on the order quantity and the season you place the order. Generally, one month after the receipt of the 1st payment.

Q5. What about the Package?
A: Standard export package and we can make special designed for you if need.
