MCB Series Cdsb1 Miniature Circuit Breaker

MCB Series Cdsb1 Miniature Circuit Breaker
Price: US $ 0.29-0.56/Piece
Min Order: 500/Piece
Pay Type: L/C,T/T,D/P,Paypal
Prod Model: CDSB1
Breaking Capacity: Low Voltage Circuit Breakers
Operation: Manual Type
Speed: Normal Type Circuit Breaker
Arc-extinguishing Medium: Vacuum
Installation: Insert
Structure: MCB
Poles Number: 1
Certification: CE

Product Description

CDSB1 Mini circuit breaker,MCB circuit breaker

brief introduction of CDSB1 mini circuit breaker

CDSB1 series circuit breaker is used in lighting distribution ststem or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has hight breaking capacity, can trip quickly and its installation uses with guide.   Its case and items are adopted with high fire-resistant and shockproof plastics.


The product, with long life, is mainly used in AC 50Hz/60Hz single pole 240V or tow,three, four poles 415V circuit for overload and short-circuit protection as well as for in frequent on-and-off switching electric equipment and lighting circuit in normal case.

This product comply with GB10963, IEC898, BS3871.





 Specification

Rated temperature: 40°c
Rated voltage: 240V/415V AC
Rated current(C): 1, 2, 4, 6, 10, 15, 16, 20, 25, 32, 40, 50, 60, 63A
Rated current(D): 1, 2, 4, 6, 10, 15, 16, 20, 25, 32, 40A
Electric endurance not lower than 6000 times
Mechanical endurance lower than 20000 times



Tropical tecs: 2 kinds

Weight(G)           1P2P3P4P
102             208                  308                       408



CDSB1-AD
StandardRated current  (A)PoleVoltage    (V)Breaking capacity   (A)
BS3871-1   IEC8981-4012404000
2, 3, 44154000
IEC157-11-401220/2406000
2, 3, 4220/24012000
2, 3, 4380/4156000

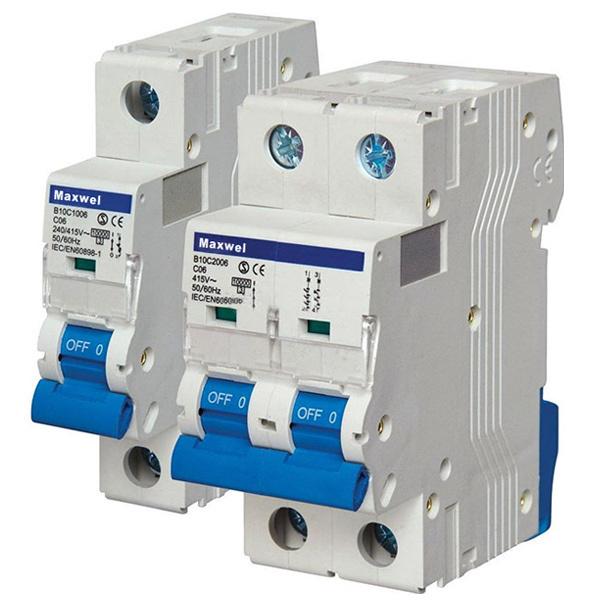

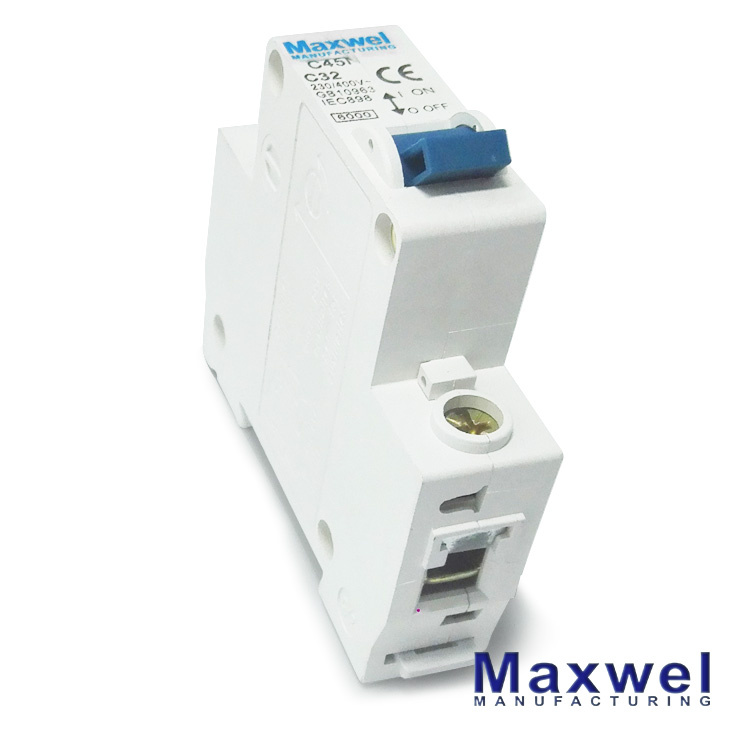

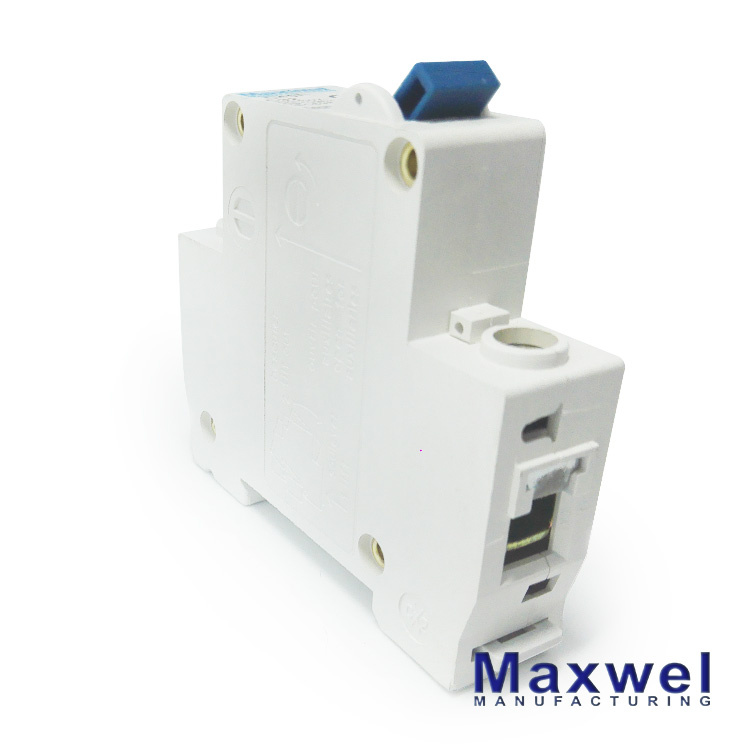

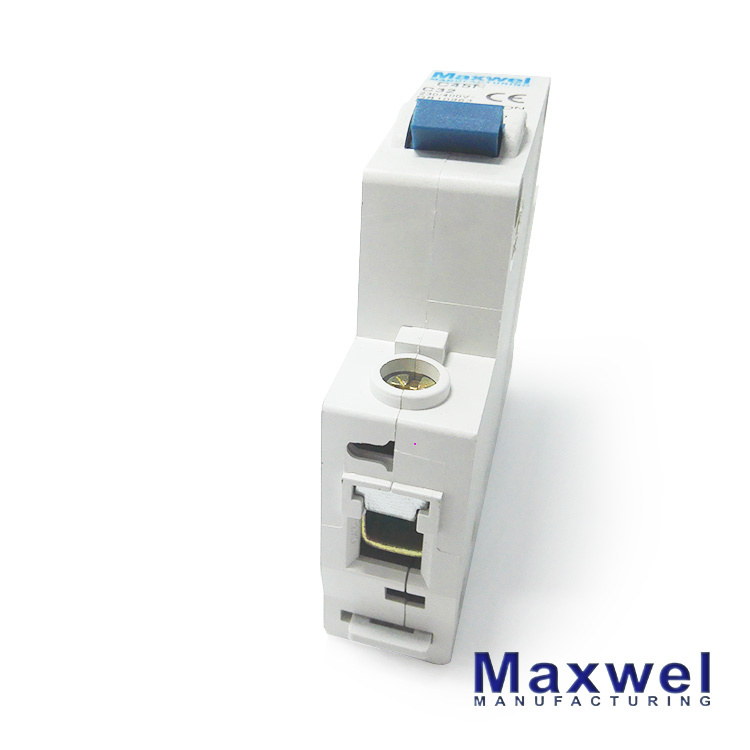

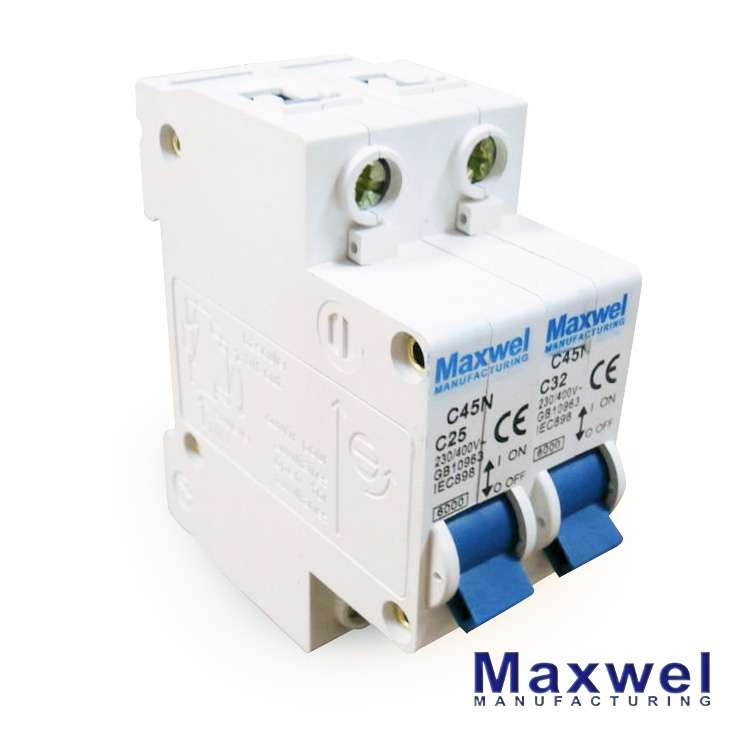

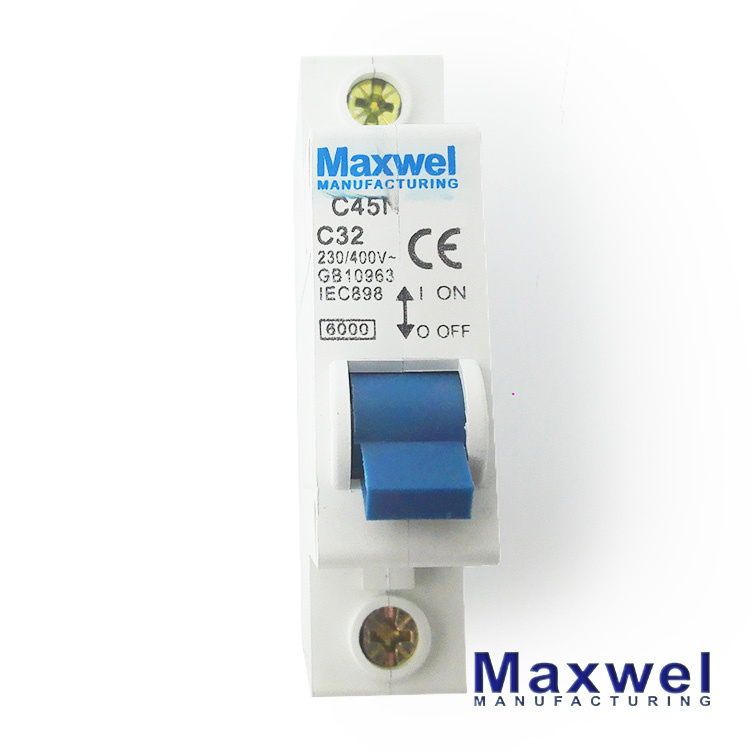

Pictures:
