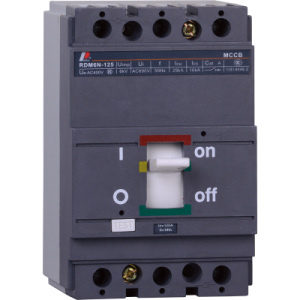

Moulded Case 125AMP Circuit Breaker

Name: Moulded Case 125AMP Circuit Breaker
Brand: all-electronics-online.com
SKU: 827274325
Availability: InStock
Rating: 4.4 (73 reviews)

Price:	US $ 18.6/Piece
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	CDSB2
Colour:	Grey
Class:	0.5/1.0
Frequency:	50/60Hz
Rated Current:	12.5-800A
Breaking Capacity:	Low Voltage Circuit Breakers
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCCB
Certification:	CE

Product Description

MOULDED CASE Circuit Breaker
Application
CDSM3 intelligent type MCCB is suitbale for using in the circuit of AC 50HZ or 60HZ,please make remarks when ordering,rated insulating voltage 750V, rated working voltage below 690V, and rated current is 16A to 630A for distributing electric energy, and infrequently OFF/ON under normal condition.

Theintelligent MCCB,which the rated frame rank current is 800A and below,also can be used for infrequently switching and strating of squirrel cage motor and for protecting motor from over-load,short circuit and under-voltage.

Main technical parameter:

Type	MM4-100		MM4-160		MM4-250		MM4-400		MM4-630
Main technical parameter(comply with GB14048.2/IEC60947-2)
Rated Current(A)	100		160		250		400		630
Number Pole	3,4		3,4		3,4		3,4		3,4
Rated Insualtion voltage V	850		850		850		850		850
Rated working voltage V	690		690		690		690		690
Testing life (No load/0.5In load)	8500/1300		7000/900		7000/900		4000/800		4000/800
Rated impulse withstand voltage KV	7.5		7.5		7.5		7.5		7.5
Ultimate short circuit breaking capacity ICU (KA)
220V/230V	75	80	75	80	75	80	80	90	80	90
380V/415V	25	45	30	45	30	45	42	60	42	60
400V	25	40	30	40	30	40	40	55	40	55
500V	18	30	25	30	25	30	30	45	30	45
600V	7	9	7	9	8	10	10	18	10	18
Service short circuit breaking capacity ICS	100%		100%		100%		100%		100%
Usage sort	A		A		A		A		A
Protect Ir form over-current	40-100		64-160		100-250		160-400		250-630
Instantaneous times	2-10		2-10		2-10		2-10		2-10
Three phrase unbalance protection N=In/2,N=In	Aim at the protection of motor and depend on consumer's advises

Product Details:

Website:www.maxwel.com

About Maxwel Electric

At Maxwel Electric, we efficiently produce a wide variety of tapes and electrical products. Our factory is ISO 9001: 2000-certified, and our products meet various international standards for easier market entry.

A large range for your selection

You can come to us for self-amalgamating, semi-conducting, butyl, mastic, sealing, PVC and aluminum foil tapes. We also manufacture miniature circuit breakers, residual current circuit breakers, residual current circuit breakers with over-current protection, switch disconnectors, distribution boxes and more.

Contact us

Our factory is equipped with state-of-the-art testing equipment, and we perform inspections during every step of production to ensure quality. To learn more, contact us today.
