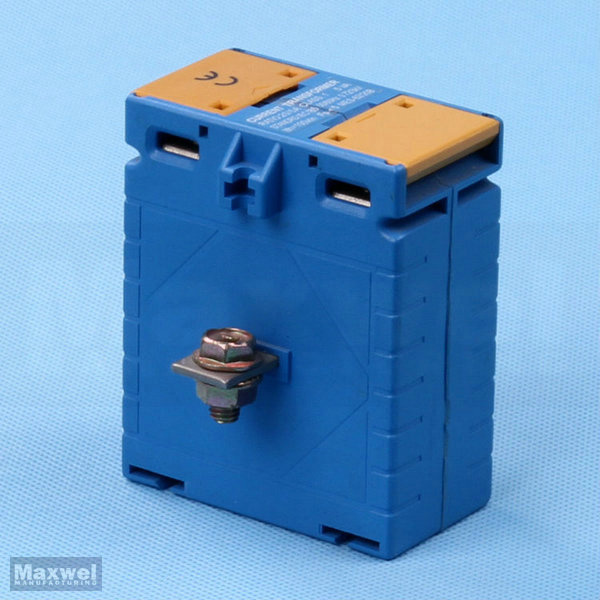

Bus Bar Type Electrical Current Transformer (Mes)

Prod Model:	MES
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Primary Current:	5A~5000A
Secondary Current:	5A, 1A
Maximum Voltage:	0.72/3kv
Frequency:	50-60Hz
Phase:	Single
Application:	Instrument
Coil:	Core-type Transformer
Winding Type:	Auto-transformer
Cooling Method:	Dry-type Transformer
Usage:	Current Transformer
Brand:	Maxwel

Product Description

MES Current Transformers 5A~3000A

The MES series of current transformer are convenient for mounting in many ways. The most current transformer need the special mounting and the MES series used the mounting of DIN typing without a lot of times. The protective cover for terminal block used the switching device with safety and quick.

MES guide railtype CT:

Primary current: 5A-3000A
Secondary current: 5A, 1A
Standard appoval: VDE0414, BS7626, IEC44-1
Maximum voltage: 0.72/3kv
Freguency: 50-60HZ
Rate load: 2.5VA, 5VA, 10VA, 15VA
Class: 0.5, 1.0
Short-time thermal current: Lth=60*1h
Rated security coefficient: FS<5


Model	A	B	C	D	E	F	G
MES-62/20B	81	47	20B	35	71	20B	62
MES-30/20	81	47	20	35	71	20	62
MES-62/30	81	47	30	35	71	31	62
MES-62/40	81	47	30	35	71	41	62
MES-89/30	88	52	30	41	77	31	80
MES-89/40	88	52	30	41	77	41	80
MES-100/60	117	57	50	184	77	61	101
MES-145/100	115	53	86	38	74	101	145
