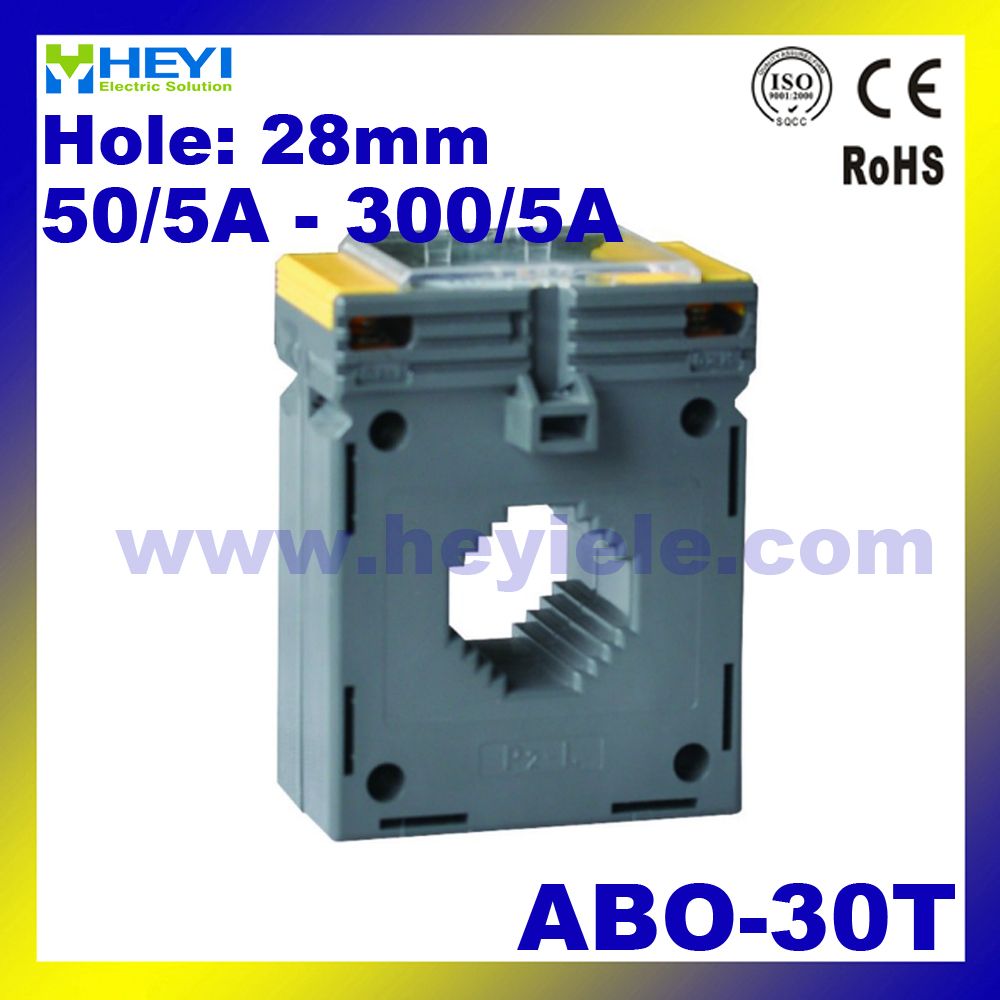

Busbar Type Current Transformer Abo-30t High Accuracy Current Transformer with Hole 28mm CT Factory

Name: Busbar Type Current Transformer Abo-30t High Accuracy Current Transformer with Hole 28mm CT Factory
Brand: all-electronics-online.com
SKU: 807774135
Availability: InStock
Rating: 4.8 (80 reviews)

Price:	Negotiable/Piece
Min Order:	10/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	ABO
Application:	Position Sensor
Type:	Current Transformer
Phase:	Single

Product Description

ABO Series (8 frames) perfect designed plastic case current transformer, advanced snap on body, high accuracy (up to Class 0.2S), humanization transparent cover and lead seal hole design makes the CT very easy to indentify after long term use and perfect anti-stealing electricity.

Features
1:Safe, easy to install, portable
2:Wide inner window, allowing clamping of big cables or bus-bars
3:Wide range of sizes to accommodate all the existing installations

Applications:
1:Current measurement, monitoring and protection for electrical wiring and equipment.
2:Current and power measurement for electric motors, lighting, air compressor, heating and ventilation system, air-condition equipment and automation - control system.
3:Current, power and energy monitoring device.
4:Relay protection device.

Technical Index:

Electrical Parameter		Mechanical Parameter
Frequency	50/60Hz	Case	PC/UL94-V0
Rated Input	1A-5000A	Bobbin	PBT
Measuring range	5%In-120%In	Core	Silicon steel
Rated Output	1A,5A	Construction	Screw
Ratio Voltage	0.72KV (AC)	Operating Temp	-25ºC~+75ºC
Dielectric strength	3.0KV/1mA/1min	Operating Humidity	≤85%
Insulation Resistance	DC500V/100MΩ min	Output Connection	Terminal

Technical Parameter

Model	Primary / Secondary	Busbar Hole Dimensions(mm)	Rated Burden (VA)	Accuracy Class	Rated Voltage
ABO-B	5/5A~1000/5A	busbar	5~10	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-30T	30/5A~300/5A	φ=30mm	1.5~5	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-30	50/5A~300/5A	φ=30mm	2.5~5	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-30C	50/5A~300/5A	φ=30mm	2.5~5	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-40	75/5A~600/5A	φ=40mm	2.5~5	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-60	200/5A~1200/5A	φ=60mm	5~10	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-85	600/5A~2500/5A	φ=85mm	10~20	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-100	800/5A~3000/5A	φ=100mm	10~20	0.2S / 0.5S / 0.5	0.72KV(AC)
ABO-125	1500/5A~6000/5A	φ=125mm	10~25	0.2S / 0.5S / 0.5	0.72KV(AC)

We are the professional manufacturing the 0.5-35 KV outdoor indoor, fuse cut out composite insulator dry type, oil-immersed, combined transformer, electrical energy meter, power capacitor correction bank, low voltage stablizer and so on

1. Who we are

Heyi is dynamic company established in 1992, who specializes in research and design, manufacturing, and distribution of all kind ofcurrent transformer

Further more, we also develop ours business for the electrical product, like energy meter, power meter, power capacitor, relay, proximity switch and so on, focusing in ours customers needs, provide the best solution supporting ours customers, be the best in their filed of businss

2 why choose us

We have our own facilities for R&D, Production, Sales & Market, and Customer Support, specializing in the design, manufacture and delivery of customized solution. Equipped with all kinds of professional instruments and testing equipment, combined the professional standard of product testing methods, now we has an annual output of 5, 000, 000 or more products.

3 Heyi Mission, vision values

Heyi mission is to provide reliable, accurate and customized current transformer solution

Heyi vision is leading global split core CT manufacture and energy solution provider

Values Enthusiastic by our work, we offer a quality personal and close service to our customers

Some products have been approved by CE and IEC certificates.
