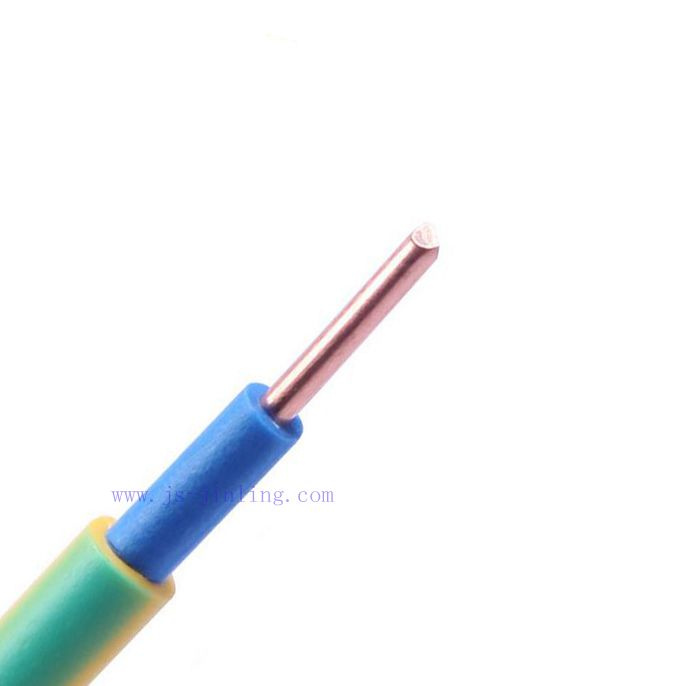

BVV 227 IEC 10 Copper Core PVC Insulated Light PVC Sheath Cable and Wire
| Price: |
US $ 0.5-5/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BVV(227 IEC 10) |
| Insulation Colour: |
Green, Black, White, Yellow, Red, Grey |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Strand |
| Application: |
Power,Control Line and Signal Transmission |
| Range Of Application: |
Power,Control Line and Signal Transmission |
| Brand: |
Jl |
Product Description
STANDARD:
BS6004 IEC60227
APPLICATION:
RVV cable used in power lines, control lines and signal transmission lines for electrical appliances, instruments and electronic equipment and automation device wiith rated Voltage of 300/500V .
Character:
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Operating temperature: -5 -60°C
Minimum bending radius:
Circular copper conductors(up to 25mm2): 4 x Overall Diameter
Circular copper conductors(above 25mm2): 6 x Overall Diameter
Structure:
Solid or Stranded Annealed Copper/Aluminum conductor PVC Insulated Wire.
Voltage:
300/500V
TECHNICAL DETAIL:
Core No* nominal cross section
mm2 | Conductor Class | Nominal Insulation thickness
mm | Nominal outer sheath thickness
mm | overall diameter
mm | Minimum insulation resistance at temperature 700C
MΩ.km |
|
| 2×1.5 | 1 | 0.7 | 1.2 | 10.0 | 0.011 |
| 2 | 0.7 | 1.2 | 10.5 | 0.010 |
| 2×2.5 | 1 | 0.8 | 1.2 | 11.5 | 0.010 |
| 2 | 0.8 | 1.2 | 12.0 | 0.009 |
| 2×4 | 1 | 0.8 | 1.2 | 12.5 | 0.0085 |
| 2 | 0.8 | 1.2 | 13.0 | 0.0077 |
| 2×6 | 1 | 0.8 | 1.2 | 13.5 | 0.0070 |
| 2 | 0.8 | 1.2 | 14.0 | 0.0065 |
| 2×10 | 1 | 1.0 | 1.4 | 16.5 | 0.0070 |
| 2 | 1.0 | 1.4 | 17.5 | 0.0065 |
| 2×16 | 2 | 1.0 | 1.4 | 20.0 | 0.0052 |
| 2×25 | 2 | 1.2 | 1.4 | 24.0 | 0.0050 |
| 2×35 | 2 | 1.2 | 1.6 | 27.5 | 0.0044 |
| 3×1.5 | 1 | 0.7 | 1.2 | 10.5 | 0.011 |
| 2 | 0.7 | 1.2 | 11.0 | 0.010 |
| 3×2.5 | 1 | 0.8 | 1.2 | 12.0 | 0.010 |
| 2 | 0.8 | 1.2 | 12.5 | 0.009 |
| 3×4 | 1 | 0.8 | 1.2 | 13.0 | 0.0085 |
| 2 | 0.8 | 1.2 | 13.5 | 0.0077 |
| 3×6 | 1 | 0.8 | 1.4 | 14.5 | 0.0070 |
| 2 | 0.8 | 1.4 | 15.5 | 0.0065 |
| 3×10 | 1 | 1.0 | 1.4 | 17.5 | 0.0070 |
| 2 | 1.0 | 1.4 | 19.5 | 0.0065 |
| 3×16 | 2 | 1.0 | 1.4 | 21.5 | 0.0052 |
| 3×25 | 2 | 1.2 | 1.4 | 26.0 | 0.0050 |
| 3×35 | 2 | 1.2 | 1.6 | 29.0 | 0.0044 |
| 4×1.5 | 1 | 0.7 | 1.2 | 11.5 | 0.011 |
| 2 | 0.7 | 1.2 | 12.0 | 0.010 |
| 4×2.5 | 1 | 0.8 | 1.2 | 13.0 | 0.010 |
| 2 | 0.8 | 1.2 | 13.5 | 0.009 |
| 4×4 | 1 | 0.8 | 1.4 | 14.5 | 0.0085 |
| 2 | 0.8 | 1.4 | 15.0 | 0.0077 |
| 4×6 | 1 | 0.8 | 1.4 | 16.0 | 0.0070 |
| 2 | 0.8 | 1.4 | 17.0 | 0.0065 |
| 4×10 | 1 | 1.0 | 1.4 | 19.0 | 0.0070 |
| 2 | 1.0 | 1.4 | 20.5 | 0.0065 |
| 4×16 | 2 | 1.0 | 1.4 | 23.5 | 0.0052 |
| 4×25 | 2 | 1.2 | 1.6 | 27.5 | 0.0050 |
| 4×35 | 2 | 1.2 | 1.6 | 32.0 | 0.0044 |
| 5×1.5 | 1 | 0.7 | 1.2 | 12.0 | 0.011 |
| 2 | 0.7 | 1.2 | 12.5 | 0.010 |
| 5×2.5 | 1 | 0.8 | 1.2 | 14.0 | 0.010 |
| 2 | 0.8 | 1.2 | 14.5 | 0.009 |
| 5×4 | 1 | 0.8 | 1.4 | 16.0 | 0.0085 |
| 2 | 0.8 | 1.4 | 17.0 | 0.0077 |
| 5×6 | 1 | 0.8 | 1.4 | 17.5 | 0.0070 |
| 2 | 0.8 | 1.4 | 18.5 | 0.0065 |
| 5×10 | 1 | 1.0 | 1.4 | 21.0 | 0.0070 |
| 2 | 1.0 | 1.4 | 22.0 | 0.0065 |
| 5×16 | 2 | 1.0 | 1.6 | 26.0 | 0.0052 |
| 5×25 | 2 | 1.2 | 1.6 | 31.5 | 0.0050 |
| 5×35 | 2 | 1.2 | 1.6 | 35.0 | 0.0044 |
Note: 1.Conductor structure is selected according to BS6004 IEC60227 .Type 1 is adopted as solid core conductor and type 2 is adopted as stranded conductor.
2.Insulator:PVC/C type PVC mixture is adopted as insulating material.
3.Sheath:PVC/ST4 model PVC mixture should be adopted as the inner sheath.
4.The average overall diameter should be within the limitation stipulation of the table.
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
