BVV 300/500V PVC Insulated Electrical Cable
| Price: |
US $ 0.2-10/Meter |
| Min Order: |
1000/Meter |
| Pay Type: |
L/C,T/T |
| Prod Model: |
BVV |
| Referred Standard: |
BS6004 IEC60227 |
| Type: |
Insulated |
| Conductor Material: |
Copper |
| Insulation Material: |
PVC |
| Certification: |
CCC |
| Conductor Type: |
Solid or Stranded |
| Application: |
Switchboard and Control Panel. |
| Range Of Application: |
Switchboard and Control Panel. |
| Brand: |
Jl |
Product Description

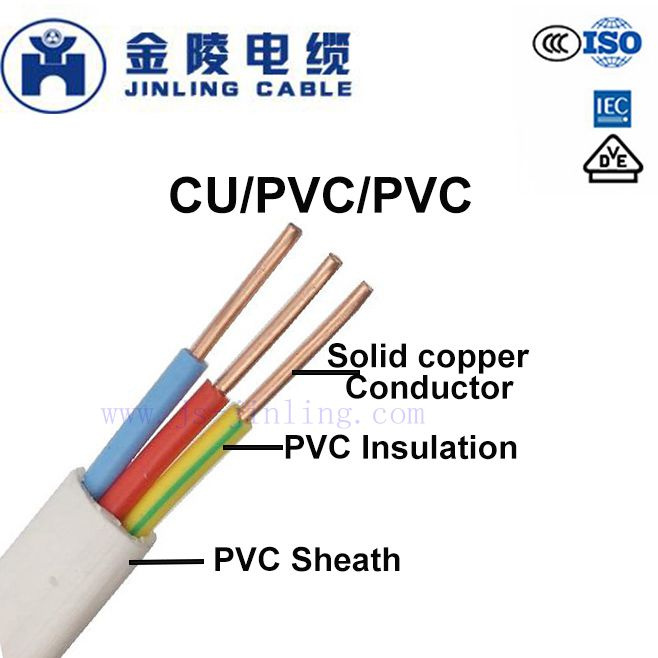

BVV 300/500V PVC Insulated Electrical Cable Structure:Solid(class1) or Stranded Copper conductor ,PVC Insulated ,PVC Outer sheathBVV 300/500V PVC Insulated Electrical Cable STANDARD:BS6004 IEC60227-3BVV 300/500V PVC Insulated Electrical Cable APPLICATION: These Cable Suitable for installed in conduit in dry location and inter wiring in switchboard and control panel.
BVV 300/500V PVC Insulated Electrical Cable Electrical Data:Working Voltage:300/500V
Test voltage: 2000 V
Maximum temperature range during operation : 70°C
Maximum short circuit temperature (5 Seconds): 160°C
Operating temperature: 0-70°C
Bending radius: 4x Overall Diameter
Insulation resistance:20MΩ x kmBVV 300/500V PVC Insulated Electrical Cable Parameter:No. of core
x Cross section
Area | Class of Conductor | No.of wire
x Diameter of wire | Insulation
thickness | Inner sheath thickness | Outer sheath thickness | Overall Diameter | DC Resistance at 90 C
Insulation | Cable Weight |
| Lower limit | upper limit |
| No x mm2 | | No /mm | mm | mm | mm | mm | mm | MΩ./km | KGS/KM |
| 2x1.5 | 1 | 1/1.38 | 0.7 | 0.4 | 1.2 | 7.6 | 10 | 0.011 | 105.7 |
| 2x1.5 | 2 | 7/0.52 | 0.7 | 0.4 | 1.2 | 7.8 | 10.5 | 0.01 | 111.3 |
| 2x2.5 | 1 | 1/1.78 | 0.8 | 0.4 | 1.2 | 8.6 | 11.5 | 0.01 | 114.6 |
| 2x2.5 | 2 | 7/0.68 | 0.8 | 0.4 | 1.2 | 9 | 12 | 0.009 | 167.9 |
| 2x4 | 1 | 1/2.25 | 0.8 | 0.4 | 1.2 | 9.6 | 12.5 | 0.0085 | 190.3 |
| 2x4 | 2 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10 | 13 | 0.0077 | 214.1 |
| 2x6 | 1 | 1/2.76 | 0.8 | 0.4 | 1.2 | 10.5 | 13.5 | 0.007 | 245.5 |
| 2x6 | 2 | 7/1.04 | 0.8 | 0.4 | 1.2 | 11 | 14 | 0.0065 | 282 |
| 2x10 | 2 | 7/1.35 | 1 | 0.6 | 1.4 | 13 | 16.5 | 0.007 | 446.2 |
| 2x16 | 2 | 7/1.70 | 1 | 0.6 | 1.4 | 15.5 | 20 | 0.0052 | 617.1 |
| 2x25 | 2 | 7/2.14 | 1.2 | 0.8 | 1.4 | 18.5 | 24 | 0.005 | 914.7 |
| 2x35 | 2 | 7/2.52 | 1.2 | 1 | 1.6 | 21 | 27.5 | 0.0044 | 1225 |
| 3x1.5 | 1 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8 | 10.5 | 0.011 | 124.5 |
| 3x1.5 | 2 | 7/0.52 | 0.7 | 0.4 | 1.2 | 8.2 | 11 | 0.01 | 143.5 |
| 3x2.5 | 1 | 1/1.78 | 0.8 | 0.4 | 1.2 | 9.2 | 12 | 0.01 | 175 |
| 3x2.5 | 2 | 7/0.68 | 0.8 | 0.4 | 1.2 | 9.4 | 12.5 | 0.009 | 202.4 |
| 3x4 | 1 | 1/2.25 | 0.8 | 0.4 | 1.2 | 10 | 13 | 0.0085 | 235.8 |
| 3x4 | 22 | 7/0.85 | 0.8 | 0.4 | 1.2 | 10.5 | 13c.5 | 0.0077 | 261.6 |
| 3x6 | 1 | 1/2.76 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.007 | 320 |
| 3x6 | 2 | 7/1.04 | 0.8 | 0.4 | 1.4 | 12 | 15.5 | 0.0065 | 362.5 |
| 3x10 | 2 | 7/1.35 | 1 | 0.6 | 1.4 | 14 | 17.5 | 0.007 | 557.9 |
| 3x16 | 2 | 7/1.7 | 1 | 0.8 | 1.4 | 16.5 | 21.5 | 0.0052 | 799.6 |
| 3x25 | 2 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26 | 0.005 | 1192.4 |
| 3x35 | 2 | 7/2.52 | 1.2 | 1 | 1.6 | 22 | 29 | 0.0044 | 1577.5 |
| 4x1.5 | 1 | 1/1.38 | 0.7 | 0.4 | 1.2 | 8.6 | 11.5 | 0.011 | 152.4 |
| 4x1.5 | 2 | 7/0.52 | 0.7 | 0.4 | 1.2 | 9 | 12 | 0.01 | 172.6 |
| 4x2.5 | 1 | 1/1.78 | 0.8 | 0.4 | 1.2 | 10 | 13 | 0.01 | 215.3 |
| 4x2.5 | 2 | 7/0.68 | 0.8 | 0.4 | 1.2 | 10 | 13.5 | 0.009 | 246.7 |
| 4x4 | 1 | 1/2.25 | 0.8 | 0.4 | 1.4 | 11.5 | 14.5 | 0.0085 | 302.5 |
| 4x4 | 2 | 7/0.85 | 0.8 | 0.4 | 1.4 | 12 | 15 | 0.0077 | 335.2 |
| 4x6 | 1 | 1/2.76 | 0.8 | 0.6 | 1.4 | 12.5 | 16 | 0.007 | 398.1 |
| 4x6 | 2 | 7/1.04 | 0.8 | 0.6 | 1.4 | 13 | 17 | 0.0065 | 464 |
| 4x10 | 2 | 7/1.35 | 1 | 0.6 | 1.4 | 15.5 | 19 | 0.007 | 695.5 |
| 4x16 | 2 | 7/1.70 | 1 | 0.8 | 1.4 | 18 | 23.5 | 0.0052 | 1009.2 |
| 4x25 | 2 | 7/2.14 | 1.2 | 1 | 1.6 | 22.5 | 28.5 | 0.005 | 1528.2 |
| 4x35 | 2 | 7/2.52 | 1.2 | 1 | 1.6 | 24.5 | 32 | 0.0044 | 1997.2 |
| 5x1.5 | 1 | 1/1.38 | 0.7 | 0.4 | 1.2 | 9.4 | 12 | 0.011 | 183.2 |
| 5x1.5 | 2 | 7/0.52 | 0.7 | 0.4 | 1.2 | 9.8 | 12.5 | 0.01 | 205.8 |
| 5x2.5 | 1 | 1/1.78 | 0.8 | 0.4 | 1.2 | 11 | 14 | 0.01 | 259.6 |
| 5x2.5 | 2 | 7/0.68 | 0.8 | 0.4 | 1.2 | 11 | 14.5 | 0.009 | 297.2 |
| 5x4 | 1 | 1/2.25 | 0.8 | 0.6 | 1.4 | 12.5 | 16 | 0.0085 | 365.1 |
| 5x4 | 2 | 7/085 | 0.8 | 0.6 | 1.4 | 13 | 17 | 0.0077 | 419.7 |
| 5x6 | 1 | 1/2.76 | 0.8 | 0.6 | 1.4 | 13.5 | 17.5 | 0.007 | 498.3 |
| 5x6 | 2 | 7/1.04 | 0.8 | 0.6 | 1.4 | 14.5 | 18.5 | 0.0065 | 563.6 |
| 5x10 | 2 | 7/1.70 | 1 | 0.6 | 1.4 | 17 | 21 | 0.007 | 849 |
| 5x16 | 2 | 7/2.14 | 1.2 | 0.8 | 1.6 | 20.5 | 26 | 0.0052 | 1254.7 |
| 5x25 | 2 | 7/2.14 | 1.2 | 1 | 1.6 | 24.5 | 31.5 | 0.005 | 1874.1 |
| 5x35 | 2 | 7/2.52 | 1.2 | 1.2 | 1.6 | 27 | 35 | 0.0044 | 2481.4 |
Jiangsu Jinling Special cable Co., Ltd. Was founded in 1998. It is a comprehensive cable enterprise integrating research, development, production, sales and service. The company is located in nanjing, jiangsu province, the industrial concentration area, with convenient transportation. The registered trademark of the company is "Yong Heng", which covers an area of 30000 square meters, with a building area of 80, 000 square meters and annual production capacity of USD 190 million. The company has 159 employees, including 48 professional and technical talents.
The company is a high-tech manufacturing enterprise with high technical content, complete quality management system and advanced inspection methods. The company has the domestic first-class production line and testing equipment, the technical force is strong. Main products are: Medium and low Voltage power cables, control cables, instrument cables, Aluminum Alloy cable, bare conductor, Aerial bundled cable, electrical wire, compensation cable, high temperature resistant cable, fire resistant cable, fire retardant cable, wind cable, Marine cable, anti-corrosion, waterproof cable., are widely used in electric power, metallurgy, petroleum, chemical industry, automobile, papermaking, coal mine, shipbuilding, ports, lifting, building materials, pharmaceutical and other industries. Company strictly according to GB, IEC, CE, As, UL, VDS standards, and pass ISO9001 certification, to provide customers with a variety of specifications of wire and cable.
Excellent quality, perfect management and first-class service is our permanent puisuit.
