Bzx79 Seriesvoltage Regulator Diode Bzx79-B6V8 of Electronic Components

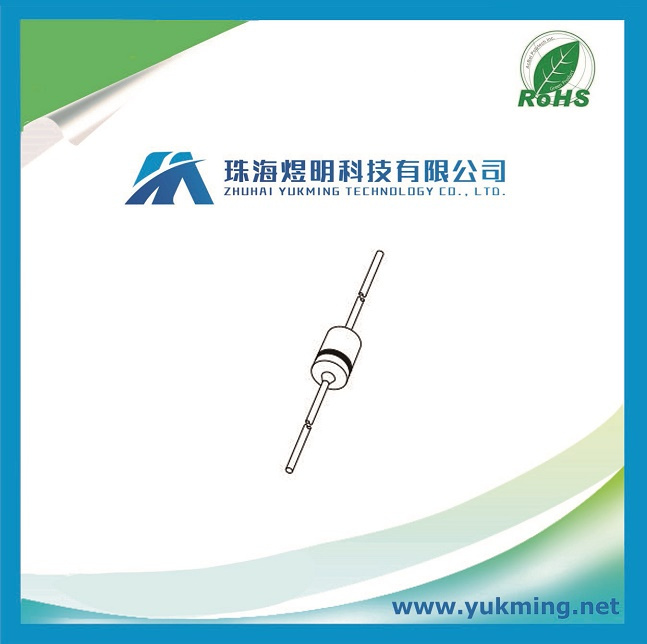

Name: Bzx79 Seriesvoltage Regulator Diode Bzx79-B6V8 of Electronic Components
Brand: all-electronics-online.com
SKU: 800663285
Availability: InStock
Rating: 4.5 (80 reviews)

Price:	US $ 0.0265/Piece
Min Order:	10000/Piece
Pay Type:	L/C,T/T,D/P,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BZX79-B6V8
Family:	Tvs Diode
Zener Voltage:	6.8 V
Series:	Bzx79
Operation Temperature Range:	-65 to 200
Shape:	Do-35

Product Description

BZX79 series
Voltage regulator diodes

FEATURES
• Total power dissipation: max. 500 mW
• Two tolerance series: ±2%, and approx. ±5%
• Working voltage range: nom. 2.4 to 75 V (E24 range)
• Non-repetitive peak reverse power dissipation:
max. 40 W.

APPLICATIONS
• Low voltage stabilizers or voltage references.

DESCRIPTION

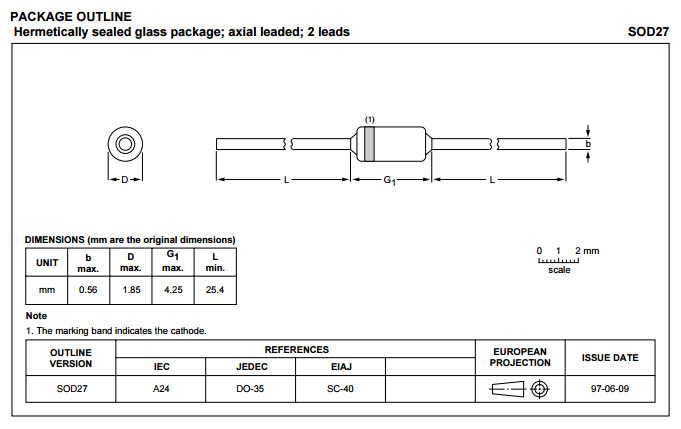

Low-power voltage regulator diodes in hermetically sealed
leaded glass SOD27 (DO-35) packages. The diodes are
available in the normalized E24 ±2% (BZX79-B) and
approx. ±5% (BZX79-C) tolerance range. The series
consists of 37 types with nominal working voltages from
2.4 to 75 V.

Specifications
EU RoHS Compliant
Type Voltage Regulator
Configuration Single
Test Current (mA) 5
Nominal Zener Voltage (V) 6.8
Maximum Zener Impedance (Ohm) 15
Zener Voltage Tolerance 2%
Maximum Reverse Leakage Current (uA) 2
Maximum Power Dissipation (mW) 500@Ta=50C
Minimum Operating Temperature (°C) -65
Maximum Operating Temperature (°C) 200
Packaging Ammo
Package Diameter (mm) 1.85(Max)
Mounting Through Hole
Package Length (mm) 4.25(Max)
PCB changed 2
Standard Package Name DO-35
Supplier Package ALF
Pin Count 2
Lead Shape Through Hole
