C3K (S) -Rtx 110V/220V High Frequency Online UPS with Transformer
| Price: |
US $ 204.95/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union |
| Prod Model: |
C3K(S)-RTX 110V/220V |
| Product Name: |
C3K(S)-Rtx 110V/220V High Frequency Online UPS |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Brand: |
Kemapower |
Product Description
C3K(S)-RTX 110V/220V High Frequency Online UPS with TransformerKey Features1.Double input or output 110V/220V High frequency online UPS
2.1KVA/2kVA/3KVA, 0.9PF
3.Single input 220V or double input 110/220V
4.Double output 110V and 220V or single ouput 220V
5.Fully digitized microprocessor control
6.Wide input voltage range
7.Advanced PFC technology
8.Self-testing when UPS startup
9.Advanced battery management
10.Automatic battery charging in UPS off mode
11.Lightning and surge protection
12.Short circuit and overload protection
13.Smart RS232 communication with monitoring software
14.LED or LCD display
15.LCD Disply ,SNMP,EPO, USB Communication is option Technical Specifications | Item | Model | C3K-RTX | C3KS-RTX |
| Capacity | VA / Watts | 3KVA/2.7KW | 3KVA / 2.4KW |
| Input | Normal voltage | L+N=220V or L+N=110V / L+N=220V |
| 220V Voltage range | a) (110±5 ~ 300±5) VAC when Load at 0-60% |
| b) (120±5 ~ 300±5) VAC when Load at 60-70% |
| C) (140±5 ~ 300±5) VAC when Load at 70-80%, |
| D) (160±5 ~ 300±5) VAC when Load at 80-100% |
| 110V Voltage range | 80-150VAC |
| Power Factor | 0.97 |
| Frequency range | Normal 50HZ/60HZ±4, 40~60Hz(set by winpower) |
| Output | Voltage range | 110V/220VAC or 220V +-1%, |
| Frequency range | 50Hz/60Hz+-0.2 (Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer time | 0 ms (AC mode and battery mode) |
| Transfer time: 4ms (typical 2.5ms),AC mode and bypass mode |
| Distortion (Full Load) linear load | ≤4% | ≤4% |
| Degree of distortion (Full Load) nonlinear load | ≤7% | ≤7% |
| Overload capacity | >108% 30s turn to bypass mode; >150%, 300ms turn to bypass |
| Load peak ratio | 3:1(max) |
| Battery | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 96VDC | 96VDC |
| Battery number | External 8*12V*7.2AH | External |
| Backup time (Full load) | >5Mins | up on battery |
| Backup time (Half load) | 15Mins | up on battery |
| Recharge time | 90%capacity after 5 hrs charging | up on battery |
| Bypass | | Automatic while overload or ups fail. |
| Before ON | Default ON. Workable set by Winpower |
| Voltage Range | Default 80-260V, workable set by WinPower to 80-286V |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter , Bypass ,Over load , Fault |
| LCD, Option | IP/OP VAC HZ, BAT % , LOAD % , LINE / BAT MODE |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery low |
| Overload | Beeping twice every second |
| Fault | Beeping Continuously |
| Communications | RS-232 Interface,With monitoring software,USB Option,SNMP NetAgent Option |
| Surge protection | RJ-45 I/O port available for network or Fax/Modem |
| Environment | Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| Product size | WxDxH (mm) | 455*195*330 | 455*195*330 |
| Package dimension | WxDxH (mm) | 605*350*505 | 605*350*505 |
| Product weight | Kg/PCS | 38/1PCS | 39/1PCS |
| Optional | Battery Cabinet | C-1A | N/A |
| REMARK | * C*K-RTX --- Standard Type, C*KS-TX---- Long Time Type. |

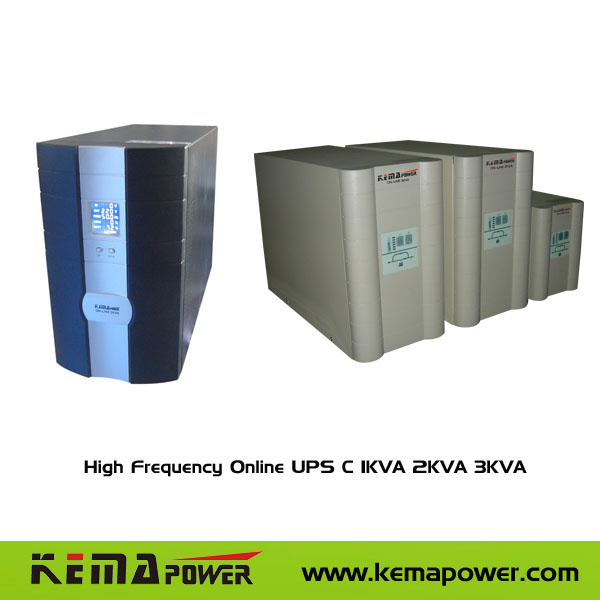

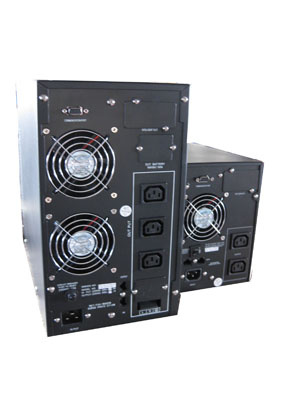

Product Show :

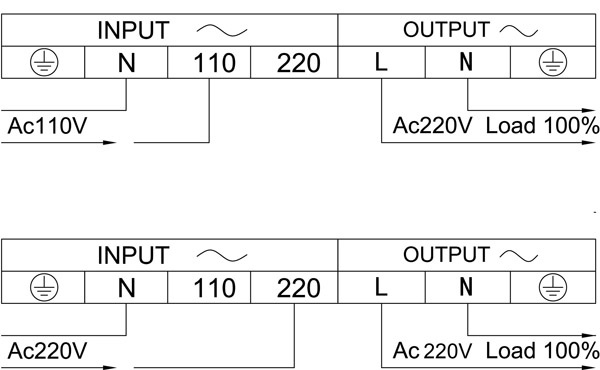

WIRE CONNECTION INPUT 110V or 220V , Output 220V

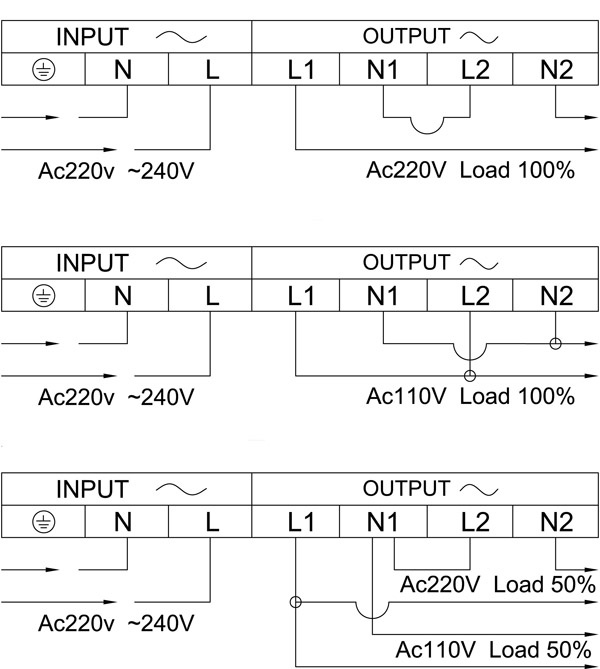

WIRE CONNECTION INPUT 220V , Output 110V or 220V
