| Prod Model: |
C6-20K |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
710*440*860 |
| Product Name: |

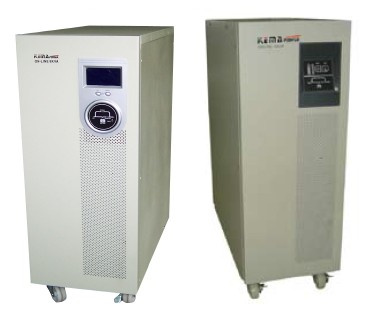

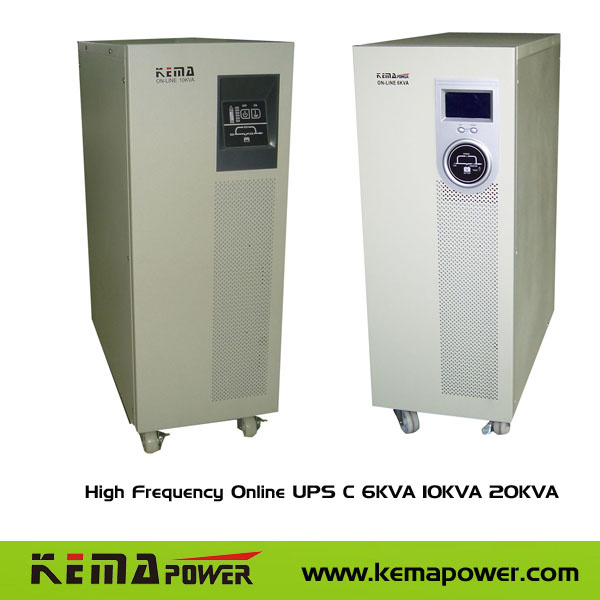

C6-20K High Frequency Online UPS |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Classification: |
Power |
| Output Capacity: |
6-20kw |
| Brand: |
Kemapower |
Product Description
High Frequency Online UPS (C6-20K)1. High frequency and double conversion online UPS
2. Single phase
3. Fully digitized microprocessor control
4. Wide input voltage range
5. Advanced PFC technology
6. Self-testing when UPS startup
7. Advanced battery management
8. Automatic battery charging in UPS off mode
9. Lightning and surge protection
10. Short circuit and overload protection
11. Smart RS232 communication with monitoring software
12. Battery voltage and load capacity display
13. SNMP card is option
14. LCD display is optionCapacity:
* 3C10Ks /10kVA/7KW/240VDC, External. Bat.
* 3C15ks /15kVA/10.5KW/240VDC, External. Bat.
* 3C20Ks /20kVA/14KW/240VDC, External. Bat.
Technical Specifications | ITEM | MODEL | C6K/C6KS | C10K/C10KS | C15KS | C20KS |
| Capacity | VA / Watts | 6KVA / 4.2KW | 10KVA / 7KW | 15KVA / 10.5KW | 20KVA / 14KW |
| Input | Normal voltage | 220VAC |
| 220V Voltage range | 176-276Vfor 24VDC |
| Frequency range | 40.5~55Hz |
| Output | Voltage range | 220VAC±1% |
| Frequency range | 50Hz/60Hz+-0.5% (Battery mode) |
| Wave form | Pure Sine Wave |
| Transfer between AC mode and battery mode | 0 ms |
|
| Transfer between AC mode and bypass mode | "<1ms" |
|
| Distortion (Full Load) linear load | < 3% |
| Degree of distortion (Ful l Load) nonlinear load | < 5% |
| Overload capacity | 105%~130% 10min, >130% 1min, >150% 200ms |
| Load peak ratio | 3:1(max) |
| Battery for C6K/10K | Type | Maintenance free valve regulated lead acid (VRLA) battery |
| Battery voltage | 240VDC/192VDC | 240VDC/192VDC | \ | \ |
| Battery number (standard type) | 20*12V*7AH or 16*12V*7AH | 20*12V*7AH or 16*12V*7AH | \ | \ |
|
| Around backup time (Full load) | 8Mins | 8Mins | \ | \ |
| Around backup time (Half load) | 24Mins | 24Mins | \ | \ |
| Recharge time | 90%capacity after 8 hrs charging |
| Battery for long backup type | C6KS/10KS/15KS/20KS | 24VDC or 192VDC External battery back. |
| Display | LED | Load level / Battery level / Battery mode / Line mode / Inverter /B ypass /Over load / Fault |
| Audible Alarm | Battery Mode | Beeping every 4 seconds (re-settable) and every second when battery |
| Overload | Beeping twice every second |
| Fault | Beeping Continuously |
| Communications | RS-232 Interface | With monitoring software |
| Working Environment | Surge protection | RJ-45 I/O port avai lable for network or Fax/Modem |
| Working temperature | - 20ºC~40ºC |
| Humidity | 0-95% non-condensing |
| Package dimension | WxDxH (mm) | 710*440*860 | 710*440*860 | 710*440*860 | 710*440*860 |
| Package size | WxDxH (mm) | 710*440*960 | 710*440*960 | 710*440*960 | 710*440*960 |
| Package weight | Gross weight(Kg) | 93/44 | 101/48 | 65 | 65 |
| REMARK | C*K --- Standard Type, C*KS(-N)---- Long Time Type |
