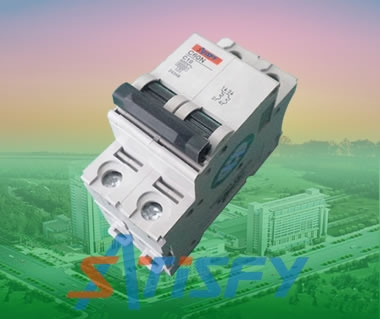

C60N MCB

Prod Model:	C60N, L7
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Installation:	Fixed

Product Description

Application
Series circuit breaker is used in lighting distribution system or motor distribution system for protecting overload and short-circuit in the system. The product is novel in structure, light in weight, reliable and excellent in performance. It has high breaking capacity, can trip quickly and its installation uses with guide, its case and items are adopted with high fire-resistant and shockproof plastics. The product, with long life, is mainly used in AC 50Hz/60Hz single-pole 240V or two, three, four-pole 415V circuit for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit in normal case. This product comply with GB10963, IEC898, BS3871.

Specification
Rated temperature 400C
Rated voltage 240V/415V AC
Rated current: 1, 3, 5, 6, 10, 15, 16, 20, 25, 32, 40, 50, 60, 63A
(D): 1, 3, 5, 6, 10, 15, 16, 20, 25, 32, 40A
Electric endurance not lower than 6000 times
Mechanical endurance lower than 20000 times
Tropical test: 2 kinds
Weight(g) 1P 2P 3P 4P
102 208 308 408
Standard Rated current
(A) Pole Voltage
(V) Breaking capacity(A)
BS3871-1
IEC898 1 to 40 1 240 4000
2, 3, 4 415 4000
IEC157-1 1 to 40 1 220/240 6000
2, 3, 4 220/240 12000
2, 3, 4 380/415 6000
