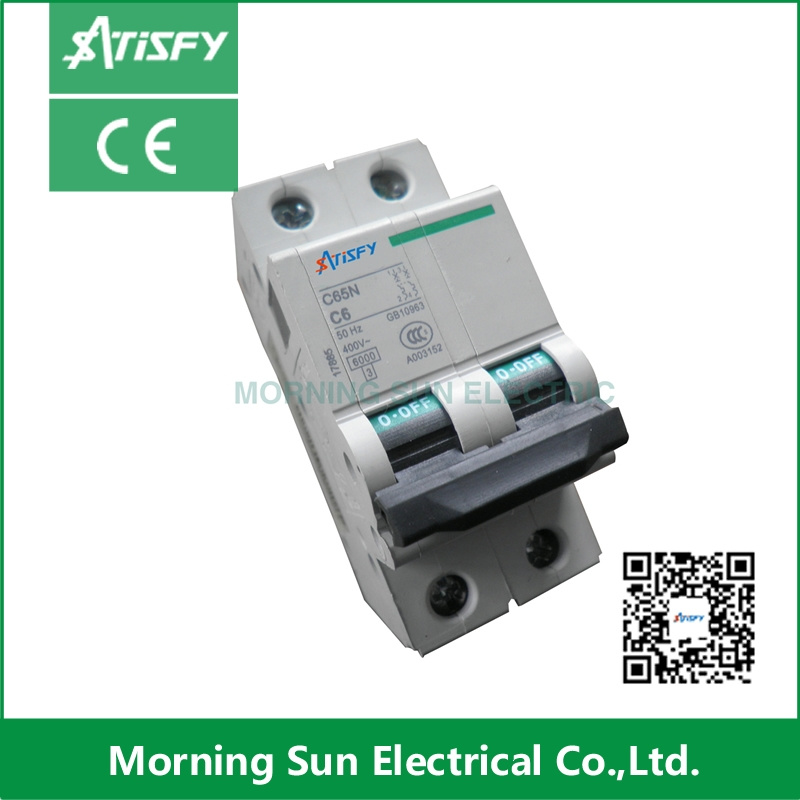

C65n MCB with High Quality

Prod Model:	C65N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
High Quality Competitive Prices:	OEM
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Poles Number:	2
Certification:	CCC

Product Description

  C65N series circuit breaker belongs to the advanced level of the nineties in the world
instead of the old generation of KC45N. They have protective functions as shortage and overloading,
and are used in lighting distribution system in industry, commerce and dwelling, and protect
fractional electric motors. And they also have many merits of high protective grade (up to IP20),
high breaking capacity, good reliability of sensitive action, convenient multi -pole assorting, long
using life etc. They are mainly adapted to the circuit of AC 50Hz,230V in single pole,400V in
double, three on four poles for protecting overload and shortage. Meanwhile, they are also used in
turning on or off the electric apparatus and lighting circuit under the  normal condition.


SPECIFICATION


Character	Standard	Rated current (A)	Pole (S)	Rated voltage (V)	Breaking capacity (A)
B C D	IEC898	1,2,3,4,5,6, 10,16,20,25, 32,40,50,63A	1	230/240	6000
			2,3,4	380/415	6000
	IEC847-2	1,2,3,4,5,6, 10,16,20,25, 32,40,50,63A	1	130	20000
				230/240	10000
				400/415	3000
			2,3,4	230/240	20000
				400/415	10000
				400	6000
