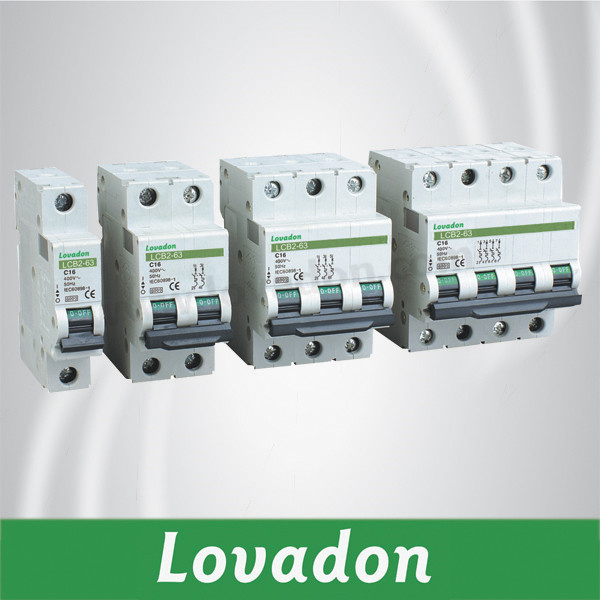

C63 Lcb2-63 Series Miniature Circuit Breaker

Name: C63 Lcb2-63 Series Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 684799682
Availability: InStock
Rating: 4.5 (60 reviews)

Price:	US $ 0.5-1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	10/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	LCB2-63, C63
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Electric Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Structure:	MCB
Poles Number:	1
Certification:	CE
Installation:	DIN Type

Product Description

Specifications
	Standard		IEC/EN 60898-1 IEC/EN 60947-2
Electrical features	Rated current In	A	1,2,3,4,6,10,13,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	120/240 220/380 230/400 240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	4500/6000/10000
	Energy limiting class		3
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		B,C,D
Mechanical features	Electrical life	t	10000
	Mechanical life	t	20000
	Contact position indicator		Yes
	Protection degree		IP20
	Reference temperature for setting of thermal element	ºC	30
	Ambient temperature (with daily average ≤35ºC)	ºC	-5~+40
	Storage ten perature	ºC	-25~+70

LCB2-63 is mainly used in AC50/60Hz single pole230V or two, three, four pole 400V voltage for overload and short-circuit protection as well as for unfrequent on-and-off switching electric equipment and lighting circuit under nrmal conditionl
The product is suitable for industry, business, building, ressidence, etc.
It's conformity with GB10963, IEC60898 standards.

	1.Specifications
	Standard		IEC/EN 60898-1
Electrical features	Rated current In	A	1,2,6,10,16,20,25,32,40,50,63
	Poles	P	1,2,3,4
	Rated voltage Ue	V	220/380 230/400 240/415
	Insulation voltage Ui	V	500
	Rated frequency	Hz	50/60
	Rated breaking capacity	A	3000 4500
	Rated impulse withstand voltage(1.2/50) Uimp	V	4000
	Dielectric test voltage at ind. Freq. for 1min	kV	2
	Pollution degree		2
	Thermo-magnetic release characteristic		BCD
Mechanical features	Electrical life	t	4000
	Mechanical life	t	10000
	Protection degree		lP20
	Reference temperature for setting
	of thermal element	C	30
	Ambient temperature		From -5~+40 (Special application please refer to
	(with daily average < 35 )	C	temperature compensation correction)
	Storage temperature	C	-25~+70
