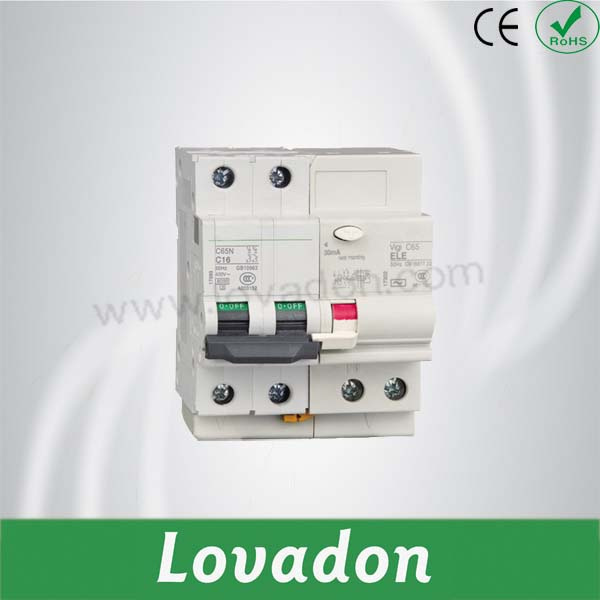

C65n High Quality Miniature Circuit Breaker

Name: C65n High Quality Miniature Circuit Breaker
Brand: all-electronics-online.com
SKU: 771990085
Availability: InStock
Rating: 4.9 (132 reviews)

Price:	US $ 4-6/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	100/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	C65N
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Rated Breaking Capacity:	10ka
Rated Current:	1~63A
Mechanical Life:	20,000
Operqating Temperature:	-25~+55
Terminal Size:	0.75~25mm2
Breaking Capacity:	Low Voltage Circuit Breakers
Operation:	Manual Type
Speed:	Normal Type Circuit Breaker
Arc-extinguishing Medium:	Air
Installation:	Fixed
Structure:	MCB
Certification:	CE
Poles Number:	1,2,3,4

Product Description

10 KA according IEC 60947-2 and IEC 60947-4
Miniature Circuit Breakers (MCB) which can be used in low voltage electrical installations to protect conductors, switchgear, and electrical equipment in general against overload and short-circuit.

1.Specifications
Electrical Feature	Standard		IEC61008-1
	Type(wave form of the earth leakage sensed)		AC,A
	Rated current In	A	25,40,63
	Poles	P	2,4
	Rated voltage Ue	V	230/400
	Rated sensitivity I n	A	0.03,0.1,0.3 0.5
	Insulation voltage Ui	V	500
	Rated residual making and	A	500(In=25A/40A)
	breaking capacity I m		630(In=63A)
	Short-circuit current I c	A	6000/10000
	SCPD fuse	A	10000
	Break time under I n	s	<0.1
	Rated frequency	Hz	50/60
	Rated impulse withstand voltage(1.2/50)Uimp	V	6000
	Dielectric test voltage at ind Freq for 1 min	kV	2.5
	Pollution degree		2
MechanicaI features	Electrical life	t	4000
	MechanicaI Iife	t	20000
	Fault current indicator		Yes
	Protection degree		IP20
	Ambient temperature	C	-5~+40
	(with daily average 35 )

C 65N MCB is an all new high performance current limiting device with the ability to disconnect short circuits of up to 10kA.Which is the newest model in 21st century.
C65N MCB has many merits of high protective grade (up to lp20),high breaking capacity, good reliability of sensitive action ,convenient multi-pole assorting, long using life ect.They are mainly used for overload and short circuit protection within the circuit of AC 50Hz,230V in single pole ,400V in double, three& commerce . Meanwhile , they can also used in turning on or off the electric apparatus and lighting circuit under the normal condition.

Number of Poles	1P+N, 2P, 3P, 3P+N, 4P
Rated Current (A)	6, 10, 16, 20, 25, 32, 40, 50, 63
Rated Operating Current (mA)	30, 100, 300, 500
Rated Residual Non-operation Current (In)(mA)	≤0.5In
Rated Voltage (V)	240/415
Tripping Curve	C, D
Type	Electronic
