| Prod Model: |
SNB 2-3.2 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Feature: |
Cable Lugs and Sleeve |
| Application: |
Conduct Electricity |
| Type: |
Single Hole Terminals |
| Material: |
Copper |

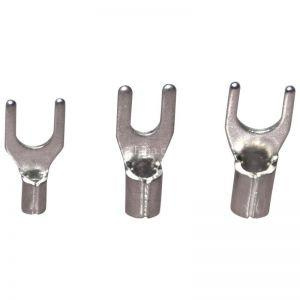

Product Description
1) Material: Purple copper
2) Cable size: 0.5-6mm2, thickness 0.75mm, 0.8mm, 1mm
3) Max current: 19A, 27A, 37A, 48A, 62A
Specification
1) Application: According to US, JP, German standard, widely used in machinery, spinning, electric power, railway, shipbuilding, spaceflight & aviation, light industry, household electrical, computers, auto-equipment and etc.
2) Processing: Cold press
3) Material: T2 copper with tinned surface, credible conductivity; PVC insulation cover, no break or rebound.
4) Certificate: ISO9001-2008
5) Manufacturer: Price advantage, quick delivery
Detail:
Specification: According to the customer picture, item NO. Or picture
Certification: ISO9001, CE, SGS
Delivery: The stock goods will be delivered within 3days, and the customized goods will be delivered within 7days
Sample: Free
MOQ: Most product not have MOQ, orders for just one piece are welcome
Terms of trade: EXW, FOB, CIF, CFRect
Payment Terms: T/T in advance, Western Union, L/C etc.
Serivce: ODM/OEM
Other service: CO, Form F
Wenzhou ziyong electrical Co., Ltd is a comprehensive and production processing trading enterprise in Zhejiang Province which is approved by the Forgeign Trade Department in China, and has own import and export power. We are engaged in cable and cable accessories, Like insulation piercing connector, cable connectors and fittings, like insulators and cable lugs and other connectors, explosion-proof products, fuse products, transformers, auto parts to cars, electricity and electronic products, plastics, machinery and decorated products.
|
Cable size:0.5~1.5mm 2 (A.W.G.22~16) max current:Imax=19A material:purple copper thickness:0.75mm |
|
Item No |
USA screw |
screw dia.d2(mm) |
Dimension(mm) |
|
B |
L |
F |
E |
Dφ |
dφ |
|
KNB 1.25-3 |
#4 |
3.2 |
5.7 |
16 |
6.5 |
4.8 |
3.4 |
1.7 |
|
KNBS 1.25-3.5 |
#6 |
3.7 |
5.7 |
16 |
6.5 |
|
KNBL 1.25-3.5 |
#6 |
3.7 |
6.4 |
16 |
6.5 |
|
KNBS 1.25-4 |
#8 |
4.3 |
6.4 |
16 |
6.5 |
|
KNBM 1.25-4 |
#8 |
4.3 |
7.2 |
16 |
6.5 |
|
KNBL 1.25-4 |
#8 |
4.3 |
8.1 |
16 |
6.5 |
|
KNBS 1.25-5 |
#10 |
5.3 |
8.1 |
16 |
6.5 |
|
KNBL 1.25-5 |
#10 |
5.3 |
9.5 |
16 |
6.5 |
|
KNBS 1.25-6 |
1/4 |
6.4 |
9.5 |
16 |
6.5 |
|
KNBL 1.25-6 |
1/4 |
8.4 |
12 |
22 |
11 |
|
Cable size:1.5~2.5mm 2 (A.W.G.16~14) max current:Imax=27A material:purple copper thickness:0.8mm |
|
Item No |
USA screw |
screw dia.d2(mm) |
Dimension(mm) |
|
B |
L |
F |
E |
Dφ |
dφ |
|
KNB 2-3 |
#4 |
3.2 |
5.7 |
16 |
6.5 |
4.8 |
4.1 |
2.3 |
|
KNBS 2-3.5 |
#6 |
3.7 |
5.7 |
16 |
6.5 |
|
KNBL 2-3.5 |
#6 |
3.7 |
6 |
16 |
6.5 |
|
KNBS 2-4 |
#8 |
4.3 |
6.4 |
16 |
6.5 |
|
KNBM 2-4 |
#8 |
4.3 |
7.2 |
16 |
6.5 |
|
KNBL 2-4 |
#8 |
4.3 |
8.1 |
16 |
6.5 |
|
KNBS 2-5 |
#10 |
5.3 |
8.1 |
16 |
6.5 |
|
KNBL 2-5 |
#10 |
5.3 |
9.5 |
16 |
6.5 |
|
KNBS 2-6 |
1/4 |
6.4 |
9.5 |
16 |
6.5 |
|
KNBL 2-6 |
1/4 |
6.4 |
12 |
22 |
11 |
|
Cable size:2.5~4mm 2 (A.W.G.14~12) max current:Imax=37A material:purple copper thickness:1.0mm |
|
Item No |
USA screw |
screw dia.d2(mm) |
Dimension(mm) |
|
B |
L |
F |
E |
Dφ |
dφ |
|
KNB 3.5-4 |
#8 |
3.2 |
5.7 |
18.3 |
7 |
6 |
5 |
3 |
|
KNB 3.5-5 |
#10 |
4.3 |
8 |
18.3 |
7 |
|
KNB 3.5-5 |
#10 |
5.3 |
8 |
18.3 |
7 |
|
KNB 3.5-6 |
1/4 |
6.4 |
12 |
21.5 |
12.1 |
|
Cable size:4~6mm 2 (A.W.G.12~10) max current:Imax=48A material:purple copper thickness:1.0mm |
|
Item No |
USA screw |
screw dia.d2(mm) |
Dimension(mm) |
|
B |
L |
F |
E |
Dφ |
dφ |
|
KNB 5.5-3.5 |
#6 |
3.7 |
8.3 |
19.5 |
7.5 |
6.8 |
5.6 |
3.4 |
|
KNBS 5.5-4 |
#8 |
4.3 |
8.3 |
19.5 |
7.5 |
|
KNBL 5.5-4 |
#8 |
4.3 |
9 |
19.5 |
7.5 |
|
KNB 5.5-5 |
#10 |
5.3 |
9 |
19.5 |
7.5 |
|
KNBS 5.5-6 |
1/4 |
6.4 |
9 |
19.5 |
7.5 |
|
KNBL 5.5-6 |
1/4 |
6.4 |
12 |
25.5 |
12 |
|
KNB 5.5-8 |
5/16 |
8.4 |
14 |
24.5 |
11.5 |
Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.
Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.
We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
