12kv Outdoor High Voltage Isolated Switch Gw1-12g Series

Name: 12kv Outdoor High Voltage Isolated Switch Gw1-12g Series
Brand: all-electronics-online.com
SKU: 826470535
Availability: InStock
Rating: 4.9 (21 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	GW1-12G Series Disconnector
Type:	High-voltage
Structure:	Three-column Disconnector
Installation:	Outdoor High-voltage
Operation:	Manual
Certification:	IEC
Brand:	Ziyong

Product Description

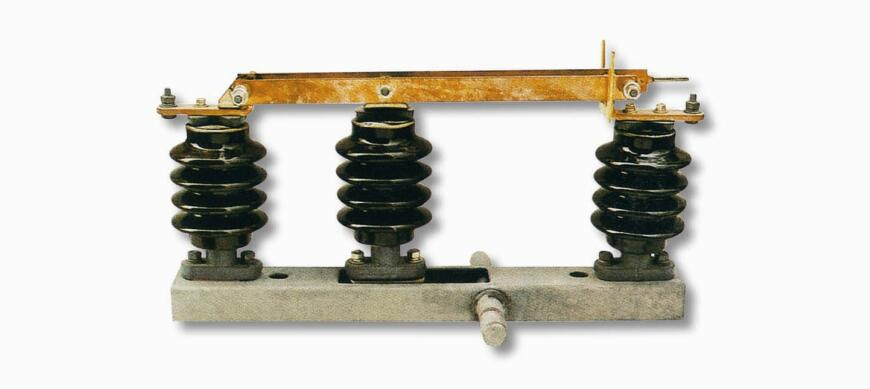

GW1-12G series outdoor high-voltage disconnecting switch is a kind of high-voltage switch gear of single-pole structure, used to break and make circuits in outdoor power network of 12kV. The switch with ground blade is equipped with CS type manual mechanism, avoiding misoperation of live ground wire. They have been designed and manufactured as per IEC standard.

Material: porcelain
Color: brown

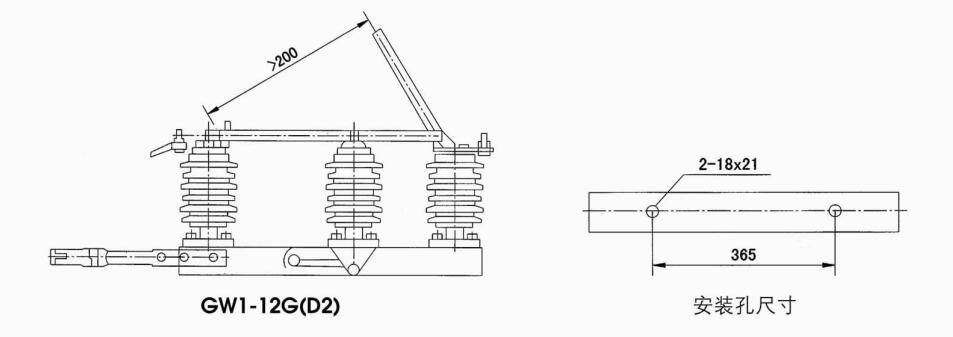

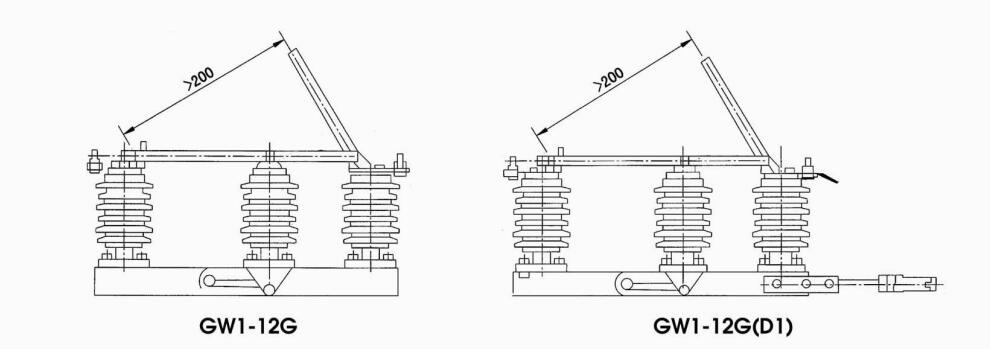

Drawing

Basic Data

Type	Rated Voltage	Rated Current	Rated Peak Withstand Current	Rated Short-time Withstand Current	Built-on Earthing Switch
Type	kV	A	kA	kA/4s	Built-on Earthing Switch
GW1-12G/630	12	630	50	20	Without
GW1-12G(D1)/630	12	630	50	20	EO
GW1-12G(D2)/630	12	630	50	20	EP
GW1-12G/1250	12	1250	100	40	Without
GW1-12G(D1)/1250	12	1250	100	40	EO
GW1-12G(D2)/1250	12	1250	100	40	EP
Note			The Grounding switch is the same as the main switch		EP = with earthing switch mounted on the pivot point EO = with earthing switch mounted on the opening side

Festures:
Small dimensions, due to linear contact movement
Quick arc quenching and high switching capability
Simple construction and quality of material for high availability and reliability
Minimal maintenance
High quality porcelain insulators
Light weight, easy installation
Good anti-fouling
Corrosion resistant ability

Service
Choose our products! You'll get
1) Good quality guarantee (2 years)
2) Factory direct prices
3) On time delivery
4) Free sample
5) Professional technology support

Strict quality controls have been taken to ensure that you'll get reliable products.
a. Material checks before production.
b. Random inspection during production.
c. Inspection before the shipment.

Our products fully comply with well recognized standards such as IEC, BS, ANSI.

FAQ:
1. Q: Do you have a catalog? Can you send me the catalog to have a check of all your products?
A: Yes, We have product catalog. Please contact us, we'll send our catalog by E-mail.

2 Q: I can't find the product on your catalog, can you make this product for me?
A: Our catalog shows most of our products but not all. If you couldn't find it, let us know the specification of your requirements, it usually takes 20-30 days for us to design and make new moulds which match your requirements.

3 Q: What's your payment term?
A: The price FOB Ningbo under payment term is 50% T/T in advance and the balance before shipment.

Chongqing Ziyong Technology Co., Ltd(Wenzhou(Yueqing) Ziyong Electrical Co., Ltd )is a professional supplier and exporter of electric cable connectors and fittings. Our products include a wide range of Aerial Electrical Fittings (Main products like: Insulation piercing connectors, suspension clamps, anchor clamp, etc. ); A variety of Electric Power Fittings (PG clamps, Aluminium alloy stain clamps, wedge clamps, earth rod); Various kinds of terminals, lugs and link fittings; And many other products for power line system.

Our products are widely used in LV & MV power line system. All of our products with highest quality. We are CE certified, have the ISO9001: 2000 certificate, all the produce is according to International Standard, such as NFC, GB and so on. We also offer OEM service of customized requests. We owns the most advanced technology. Have the ability to research and design electricala apparatus by ourselves.

We also hope that we can receive the feedback from you on evaluating our products, offering your good ideas. Let us build up international quality in China together!
